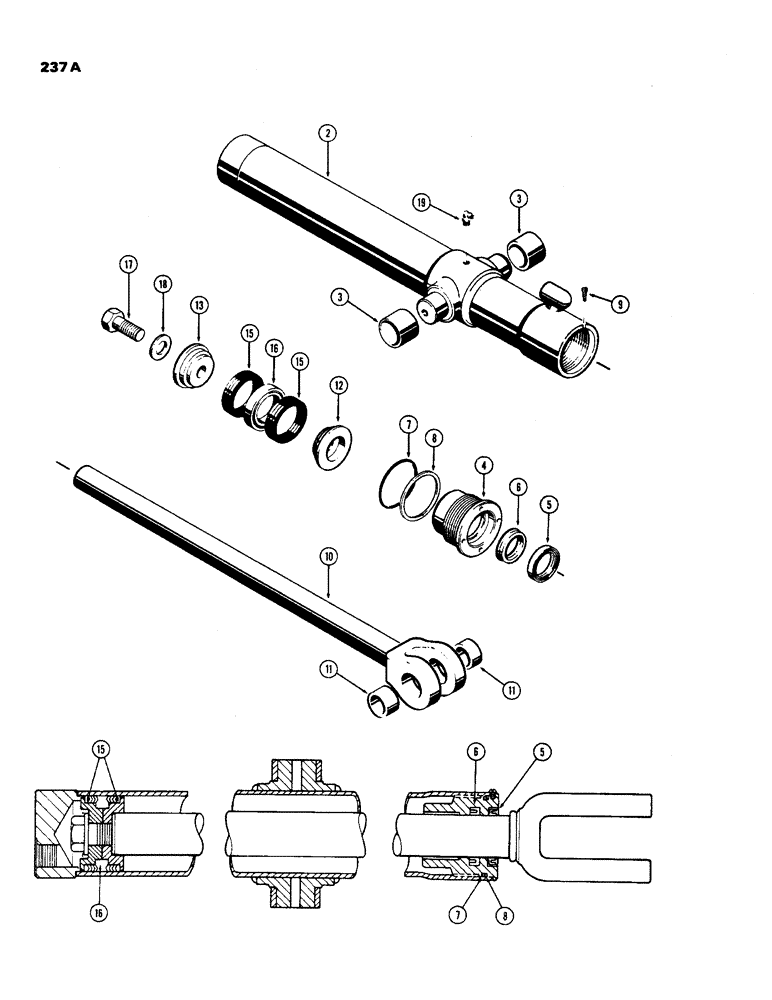

Запчасти Case 450 (237A) - G33561 & G33562 LOADER DUMP CYLINDER, 3" DIA. CYLINDER W/23-1/2" STROKE (07) - HYDRAULIC SYSTEM

G33561

CYLINDER

ASSY. - lift, left hand, Includes: Ref. 2 - 19

1шт.

G33562

CYLINDER

ASSY. - lift, right hand, Includes: Ref. 2 - 19

1шт.

2

D35103

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

2

D35102

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

4

G33570

GLAND

ASSY - w/bushing (w/identification ring), Includes: Ref. 5 - 8

1шт.

5

95143

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of P/N G33572 Cylinder Repair Seal Kit

1шт.

6

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of P/N G33572 Cylinder Repair Seal Kit

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O"RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of P/N G33572 Cylinder Repair Seal Kit

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O"ring back-up

1шт.

Part of P/N G33572 Cylinder Repair Seal Kit

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

10

G33563

ROD

ASSY. - piston (1-3/4" dia.) (w/identification ring), Includes: Ref. 11

1шт.

11

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

12

G33331

PISTON

- split (rod end) (w/identification ring)

1шт.

13

D28896

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Includes: Ref. 15 and 16

1шт.

Part of P/N G33572 Cylinder Repair Seal Kit

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSY. - ("V" type)

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 degree)

1шт.

G33572

SEAL

KIT - cylinder repair, Includes: Ref. 5 - 8 and P/N G33151

1шт.
