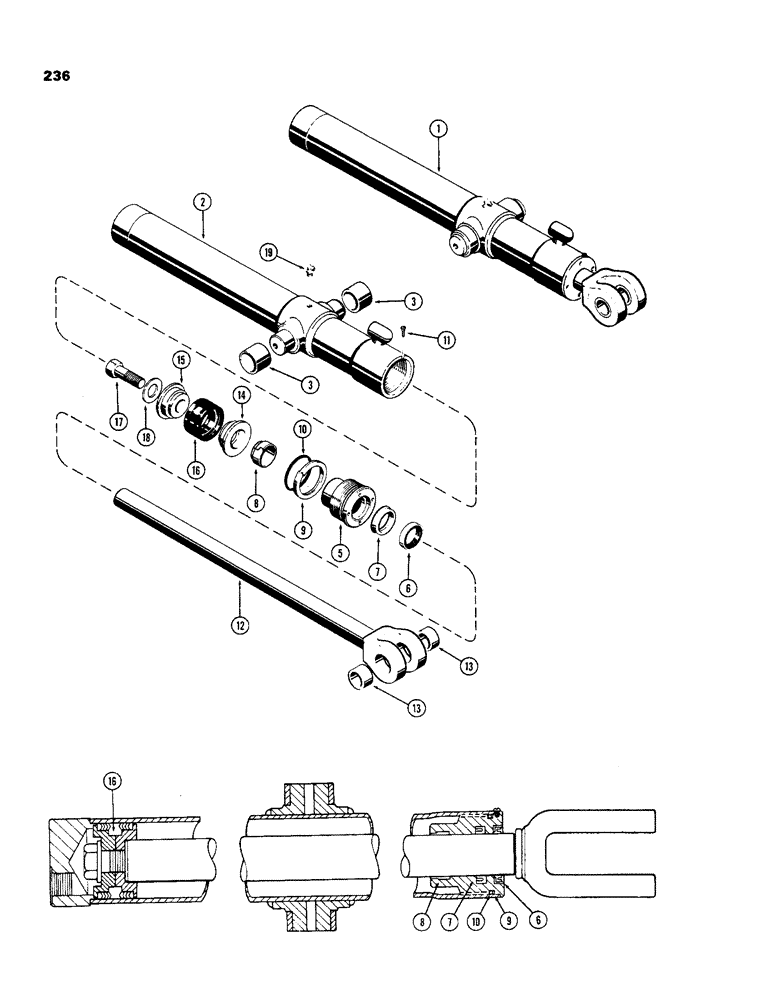

Запчасти Case 450 (236) - G32137 & G32140 LOADER DUMP CYLINDER, 3" DIAMETER CYLINDER W/23-1/2" STROKE (07) - HYDRAULIC SYSTEM

1

G32137

CYLINDER

ASSY. - dump. L.H. (Order G33561 Figure 237A), Includes: Ref. 2 - 19

1шт.

1

G32140

CYLINDER

ASSY. - dump, R.H. (Order G33562 Figure 237A), Includes: Ref. 2 - 19

1шт.

2

D35103

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

2

D35102

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

NLS

NO LONGER SERVICED

ASSY. - (w/out identification ring), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer, 1-3/4 x 2-1/4 x 5/16"

1шт.

Part of P/N G32289 Cylinder Repair Seal Kit

1шт.

7

D36970

CUP

SEAL piston rod, 1-3/4 x 2-1/4 x 7/16"

1шт.

Part of P/N G32289 Cylinder Repair Seal Kit

1шт.

8

D27432

SHIM

piston rod, inner, split type

1шт.

Part of P/N G32289 Cylinder Repair Seal Kit

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland, O-ring back up

1шт.

Part of P/N G32289 Cylinder Repair Seal Kit

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland, 3 x 3-1/4 x 1/8"

1шт.

Part of P/N G32289 Cylinder Repair Seal Kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D35098

PISTON

ROD ASSY. - piston (1-3/4" dia.) (w/o identification ring), Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

D28897

PISTON

- split (rod end) (w/o identification ring)

1шт.

15

D28896

PISTON

- split (bolt end)

1шт.

16

G33151

PACKING

ASSY. piston, V type

1шт.

Part of P/N G32289 Cylinder Repair Seal Kit

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 degree)

1шт.

G32289

SEAL

KIT cylinder repair, Includes: Ref. 6 - 10 and 16

1шт.
