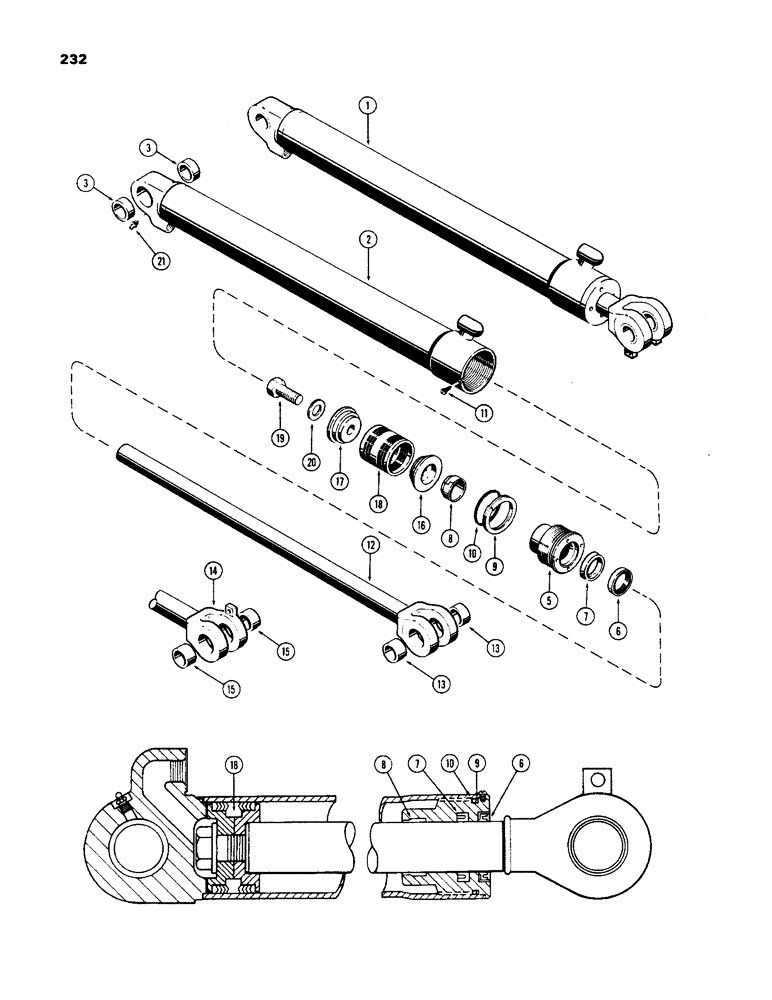

Запчасти Case 450 (232) - G32138, G32139 & G32164 LOADER LIFT CYLINDER, 3-1/2" DIAMETER CYLINDER W/31" STROKE (07) - HYDRAULIC SYSTEM

1

G32139

CYLINDER ASSY. - lift, left hand (used models w/or w/out anti-rollback features), Includes: Ref. 2 - 21

1шт.

1

G32138

CYLINDER ASSY. - lift, right hand (used models w/out anti-rollback features), Includes: Ref. 2 - 21

1шт.

G32164

CYLINDER

ASSY. - lift, right hand (Not Illust.) (used models w/anti-rollback features), Includes: Ref. 2 - 21

1шт.

2

D35063

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

2

D35064

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

3

D35071

BUSHING

- tube

2шт.

G32736

GLAND

ASSY. - (w/out identification ring), Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 7/16")

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner (split type)

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O"ring back-up

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O"RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

12

D35057

PISTON ROD

ROD ASSY. - piston (2" dia.) (w/o identification ring) (used w/ G32139 & G32138 cylinders), Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

D42739

ROD ASSY.

- piston (2" dia.) (used w/G32164 cylinder) (without identification ring), Includes: Ref. 15

1шт.

15

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

1шт.

16

D28368

PISTON

- split (rod end) (w/o identification ring)

1шт.

17

D28367

PISTON

- split (bolt end)

1шт.

18

G33237

PACKING

ASSY. - piston

1шт.

Part of P/N G32290 Cylinder Repair Seal Kit

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

G32290

SEAL

KIT cylinder repair, Includes: Ref. 6 - 10 and 18

1шт.
