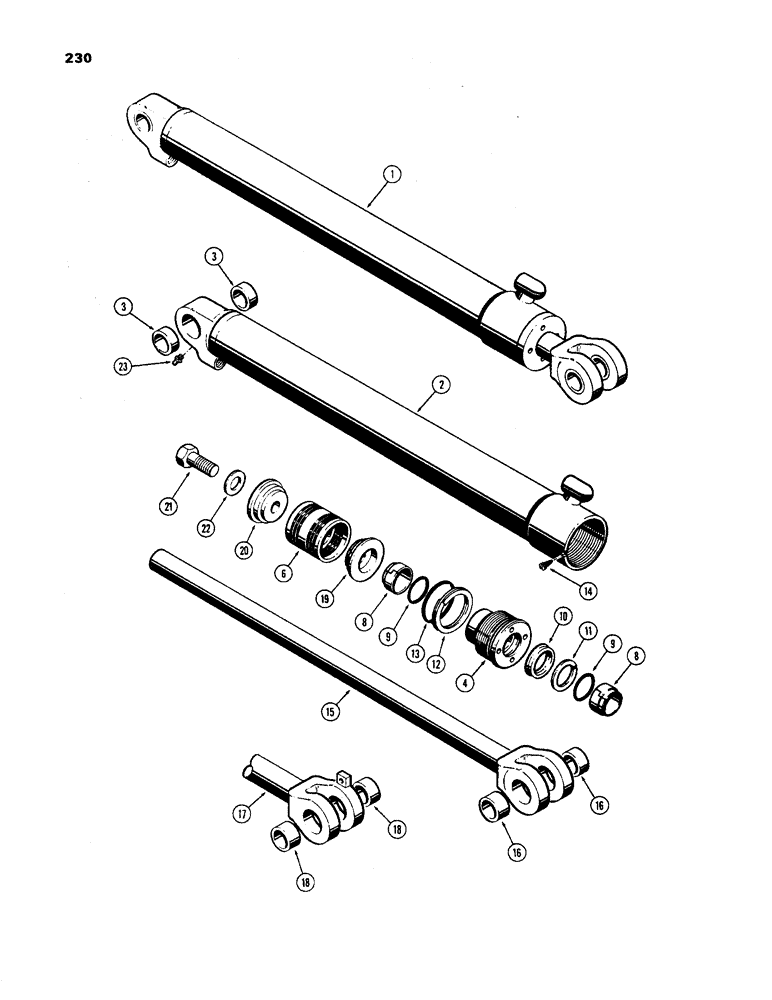

Запчасти Case 450 (230) - D34741, D34742 & D42738 LOADER LIFT CYLINDERS, 3-1/2" DIAMETER CYLINDER W/31" STROKE (07) - HYDRAULIC SYSTEM

1

D34742

CYLINDER

ASSY. - lift, left hand (use models w/or w/out anti-rollback features), Includes: Ref. 2 - 23

1шт.

1

D34741

HYDRAULIC CYLINDER

CYLINDER ASSY. - lift, right hand (used models w/out anti-rollback features), Includes: Ref. 2 - 23

1шт.

D42738

CYLINDER ASSY.

- lift, right hand (Not Illust.) (used models w/anti-rollback features), Includes: Ref. 2 - 23

1шт.

2

D35063

TUBE

ASSY. - cylinder body, left hand, Includes: Ref. 3

1шт.

2

D35064

TUBE

ASSY. - cylinder body, right hand, Includes: Ref. 3

1шт.

3

D35071

BUSHING

- tube

2шт.

4

D45070

GLAND

- (Replaces D28320) (w/o identification ring)

1шт.

D37357

KIT

PACKING KIT, Includes: Ref. 6 - 14

1шт.

6

D36963

PACKING

ASSY. - piston

1шт.

D42874

PACKING GLAND

GLAND REPAIR KIT, Includes: Ref. 8 - 14

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner & outer (split type)

2шт.

9

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O"RING - wiper seal (2-1/8 x 2-3/8 x 1/8")

2шт.

10

D36971

RING

SEAL - piston rod (2 x 2-1/2 x 13/32")

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- piston seal back-up

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O"ring back-up

1шт.

13

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O"RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

15

D35057

PISTON ROD

ROD ASSY. - piston (2" dia.) (w/o identification ring) (used with D34741 & D34742 cylinders), Includes: Ref. 16

1шт.

16

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

17

D42739

ROD ASSY.

- piston (2" dia.) (used w/D42738 cylinder) (without identification ring), Includes: Ref. 18

1шт.

18

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

19

D28368

PISTON

- split (rod end) (w/o identification ring)

1шт.

20

D28367

PISTON

- split (bolt end)

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

22

G32351

WASHER

- piston bolt

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.
