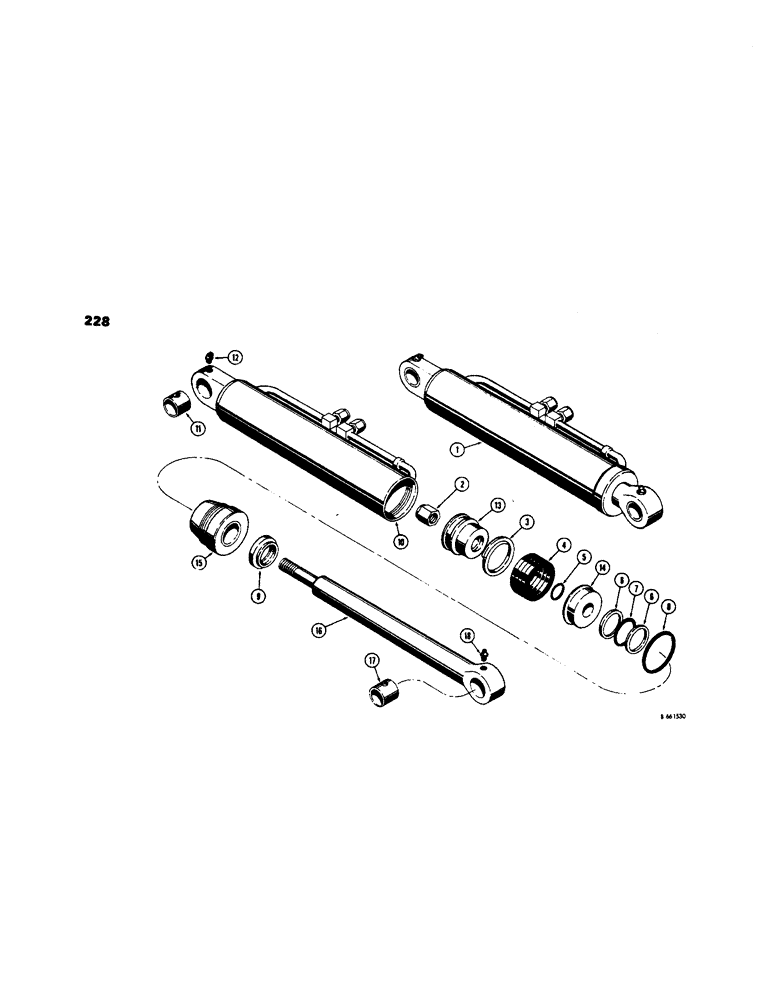

Запчасти Case 450 (228) - D39218 DROTT CLAM CYLINDER (07) - HYDRAULIC SYSTEM

1

D39218

CYLINDER

- hydraulic, clam (2-3/4" I.D. x 10-1/2" stroke), Includes: Ref. 2 - 18

1шт.

D39296

KIT

- cylinder, Includes: Ref. 2 - 9

1шт.

2

131-19

LOCK NUT,1"-14, GB

NUT - lock, hex. (1" - 14 NF)

1шт.

3

D39295

RING

- wear

1шт.

4

D39291

CUP

PACKING - piston

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

6

A18686

WASHER

- backup, leather

2шт.

7

A18687

O-RING

SEAL - "O"ring

1шт.

8

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

9

A18690

RING

SEAL - rod wiper

1шт.

10

D39294

TUBE - cylinder

1шт.

11

D39219

BUSHING

- tube

1шт.

12

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 67-1/2 degree (1/4" - 28 taper)

1шт.

13

D39185

PISTON - half, nut end

1шт.

14

D39289

PISTON

- half, rod end

1шт.

15

D39290

HEAD

GLAND - cylinder

1шт.

16

D39292

ROD

- piston (1-1/2 " dia.), Includes: Ref. 17

1шт.

17

A18681

BUSHING

- piston rod

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
