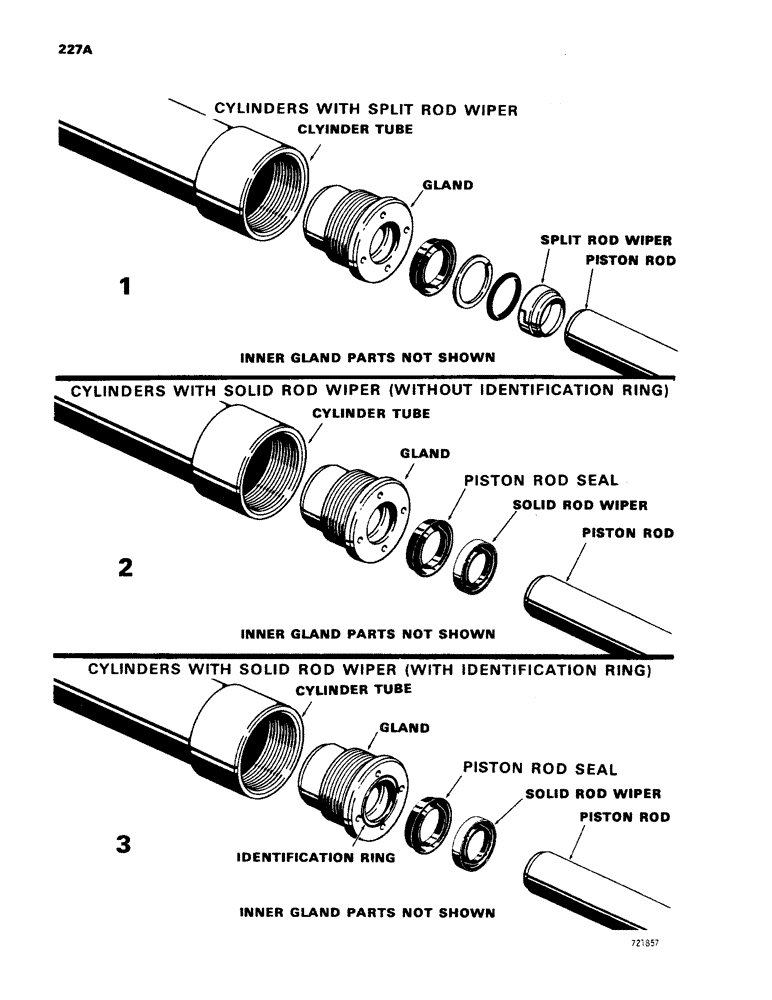

Запчасти Case 450 (227A) - CYLINDER IDENTIFICATION, DOZER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

1

D34301

NO LONGER SERVICED

CYLINDER - Angle Dozer Models (Outer rod wiper is split) Parts list Figure 242

2шт.

2

G32475

CYLINDER

- Angle Dozer Models (Outer rod wiper is solid) Parts list Figure 244

2шт.

3

G33359

CYLINDER

- Angle Dozer Models (Gland has identification Ring) Parts list Figure 244

2шт.

1

D34790

CYLINDER ASSY.

CYLINDER - Angle Tilt Dozer (Outer rod wiper is split) Parts list Figure 242

2шт.

2

G32172

CYLINDER - Angle Tilt Dozer (Outer rod wiper is solid) Parts list Figure 246

2шт.

3

G33346

CYLINDER BLOCK

CYLINDER - Angle Tilt Dozer (Gland has identification ring) Parts list Figure 246

2шт.

1

D34302

CYLINDER - Angle Dozer Models (Outer rod wiper is split) Parts list Figure 248, angle

2шт.

2

G32461

CYLINDER - Angle Dozer Models (Outer rod wiper is solid) Parts list Figure 249A, angle

2шт.

3

G33764

CYLINDER BLOCK

CYLINDER - Angle Dozer Models (Gland has identification ring) Parts list Figure 249A, angle

2шт.

1

D34791

CYLINDER - Angle Tilt Dozer (Outer rod wiper is split) Parts list Figure 250, angle

2шт.

2

G32583

CYLINDER - Angle Tilt Dozer (Outer rod wiper is solid) Parts list Figure 251A, angle

2шт.

3

G33620

CYLINDER

- Angle Tilt Dozer (Gland has identification ring) Parts list Figure 251A, angle

2шт.

1

D34792

CYLINDER - Angle Tilt Dozer Models (Outer rod wiper is split) Parts list Figure 252

1шт.

2

G32170

CYLINDER - Angle Tilt Dozer (Outer rod wiper is solid) Parts list Figure 253A

1шт.

3

G33609

CYLINDER - Angle Tilt Dozer (Gland has identification ring) Parts list Figure 253A

1шт.

1

D35124

CYLINDER - outer rod wiper is split, Parts list Figure 254, ripper

1шт.

2

G32468

CYLINDER

- outer rod wiper is solid, Parts list Figure 255A, ripper

1шт.

3

G33466

HYDRAULIC CYLINDER

CYLINDER - gland has identification ring, Parts list Figure 255A, ripper

1шт.
