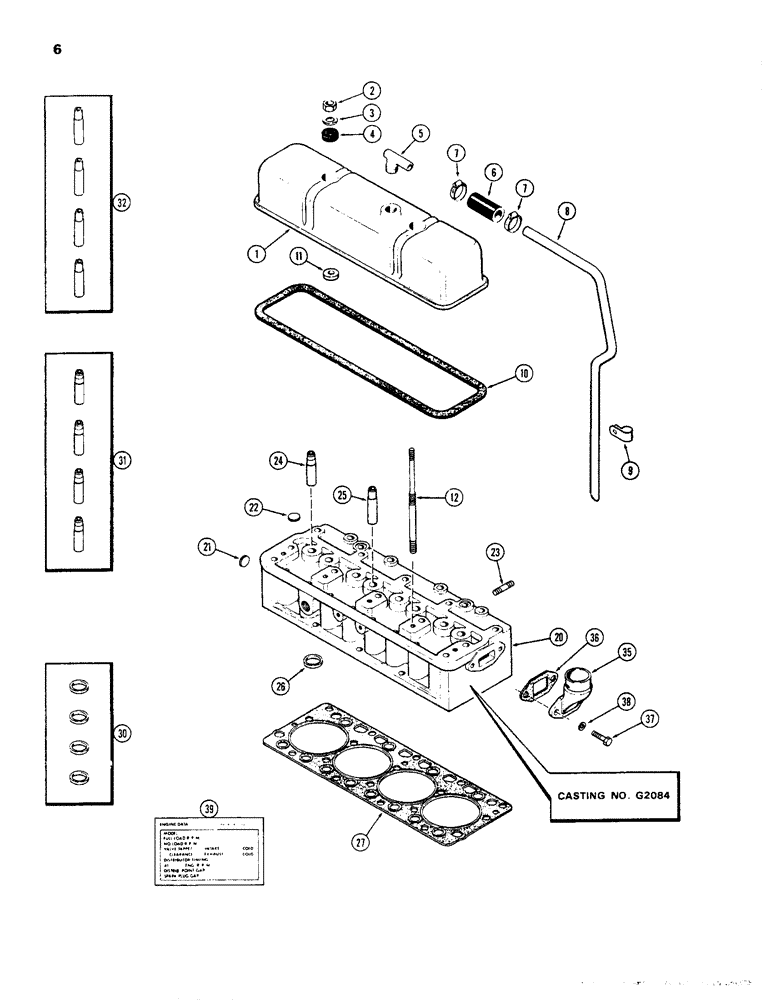

Запчасти Case 450 (006) - CYLINDER HEAD ASSEMBLY, (188) SPARK IGNITION ENGINE (01) - ENGINE

1

A36815

COVER

- valve

1шт.

2

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

2шт.

3

G49400

WASHER

- cover nut (13/32 x 1-5/32" x 10 Ga.)

2шт.

4

G46867

GROMMET

- (13/32 x 1-1/4 x 3/8" rubber)

2шт.

5

A9155

90 ELBOW

- breather tube

1шт.

6

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

2шт.

8

D35027

TUBE

- breather

1шт.

9

D35026

CLAMP - tube

1шт.

10

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

11

G11352

BUSHING

SPACER - valve cover

2шт.

12

A36780

STUD

- head and valve cover

2шт.

20

A39270

HEAD

ASSY. - cylinder (Casting #G2084) (Replaces G11871), Includes: Ref. 21 and 22

1шт.

21

41-18

PLUG

- rear (1-1/8" exp.)

1шт.

22

41-13

GUARD,Exp, 13/16"

- top (13/16" exp.)

2шт.

23

A29431

STUD

STUP - manifold (3/8" N.C. x 1-3/4")

7шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 31)

4шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 32)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 30)

4шт.

27

A36585

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

30

A43048

KIT

INSERT SET - exhaust valve seat (Set of 4)

1шт.

31

G11861

GUIDE

SET - exhaust valve set stem (Set of 4)

1шт.

32

G11946

GUIDE

SET - intake valve stem (Set of 4)

1шт.

35

G11965

ELBOW

- water outlet

1шт.

36

A30003

GASKET

- outlet, Serial Range: elbow-head

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

321-1359

DECAL - engine data (on valve cover)

1шт.
