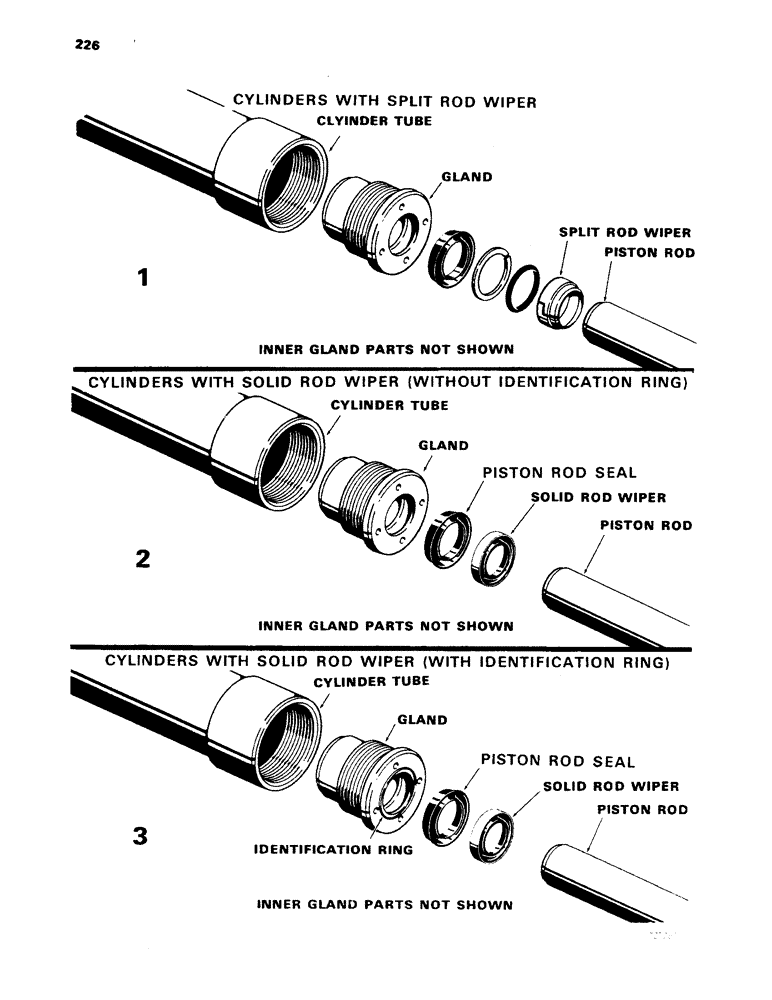

Запчасти Case 450 (226) - CYLINDER IDENTIFICATION, LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

1

D34741

HYDRAULIC CYLINDER

CYLINDER - R.H., without anti-rollback (Outer rod wiper is split) Parts list Figure 230

1шт.

1

D42738

CYLINDER ASSY.

CYLINDER - R.H., with anti-rollback (Outer rod wiper is split) Parts list Figure 230

1шт.

2

G32138

CYLINDER - R.H., without anti-rollback (Outer rod wiper is solid) Parts list Figure 232

1шт.

2

G32164

CYLINDER

- R.H., with anti-rollback (Outer rod wiper is solid) Parts list Figure 232

1шт.

3

G33599

CYLINDER

- R.H., with anti-rollback (Gland has identification ring) Parts list Figure 233A

1шт.

3

G33602

CYLINDER

- R.H., without anti-rollback (Gland has identification ring) Parts list Figure 233A

1шт.

1

D34742

CYLINDER

- L.H. (Outer rod wiper is split) Parts list Figure 230

1шт.

2

G32139

CYLINDER - L.H. (Outer rod wiper is solid) Parts list Figure 232

1шт.

3

G33603

CYLINDER

- L.H. (Gland has identification ring) Parts list Figure 233A

1шт.

1

D34739

HYDRAULIC CYLINDER

CYLINDER - R.H. (Outer rod wiper is split) Parts list Figure 234, loader dump cylinders

1шт.

2

G32140

CYLINDER

- R.H. (Outer rod wiper is solid) Parts list Figure 236, loader dump cylinders

1шт.

3

G33562

CYLINDER

- R.H. (Gland has identification ring) Parts list Figure 237A, loader dump cylinders

1шт.

1

D34740

HYDRAULIC CYLINDER

CYLINDER - L.H. (Outer rod wiper is split) Parts list Figure 234, loader dump cylinders

1шт.

2

G32137

CYLINDER

- L.H. (Outer rod wiper is solid) Parts list Figure 236, loader dump cylinders

1шт.

3

G33561

CYLINDER

- L.H. (Gland has indentification ring) Parts list Figure 237A, loader dump cylinders

1шт.

1

D34738

CYLINDER

- outer rod wiper is split, Parts list Figure 238, loader hydra-leveling cylinders

2шт.

2

G32141

CYLINDER

- outer rod wiper is solid, Parts list Figure 240, loader hyra-leveling cylinders

2шт.

3

G33555

CYLINDER

- gland has identification ring, Parts list Figure 240, loader hydra-leveling cylinders

2шт.

D39720

CYLINDER - grapple, Parts list figure 228 (1), loader grapple

1шт.

D39218

CYLINDER

- 2-3/4" I.D., See figure 228 for identification (Parts list Figure 228), bucket clam

2шт.

D39096

CYLINDER - 3" I.D., See figure 229A for identification (Parts list Figure 229A, bucket clam

2шт.

D42415

CYLINDER - 3" I.D., See figure 229A for identification (Parts list Figure 229A, bucket clam

2шт.
