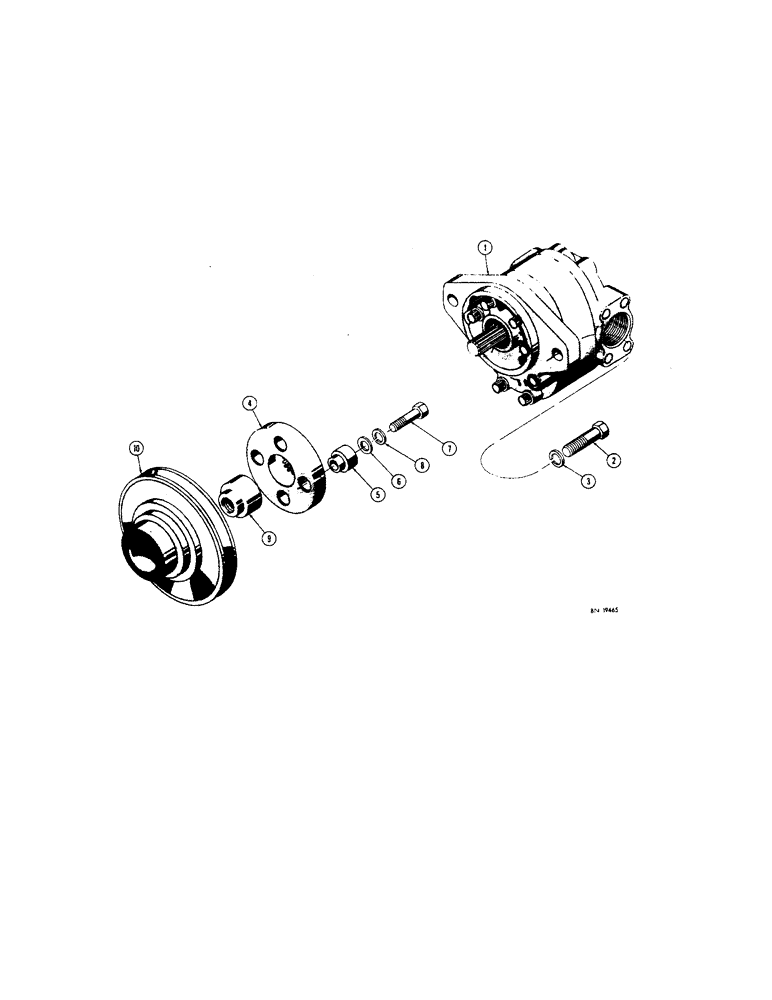

Запчасти Case 450 (224) - PUMP DRIVE (07) - HYDRAULIC SYSTEM

1

D31254

X

PUMP - hydraulic (Parts list Figure 222) When stock is exhausted, use D41390 pump)

1шт.

D41390

PUMP

PUMP - hydraulic (Parts list Figure 222)

1шт.

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

87644746R

REMAN-HYD PUMP

450, (PRIOR TO S/N 3038436), Reman For New P/N D41390 & 87644746

1шт.

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

LOCK WASHER, , med. sect. 1/2"

2шт.

4

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible, Includes: Ref. 5

1шт.

5

G36905

BLOCK

BLOCK AND BUSHING - flex. coupling

4шт.

6

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

WASHER - coupling bolt (29/64" I.D. x 3/4" O.D. x 1/16" thick)

4шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/2, G5

4шт.

8

92-7

LOCK WASHER,7/16"

LOCK WASHER, , med. sect. 7/16"

4шт.

9

A35673

NUT

NUT - fan drive pulley

1шт.

10

G11342

X

PULLEY - fan and gen. drive

1шт.
