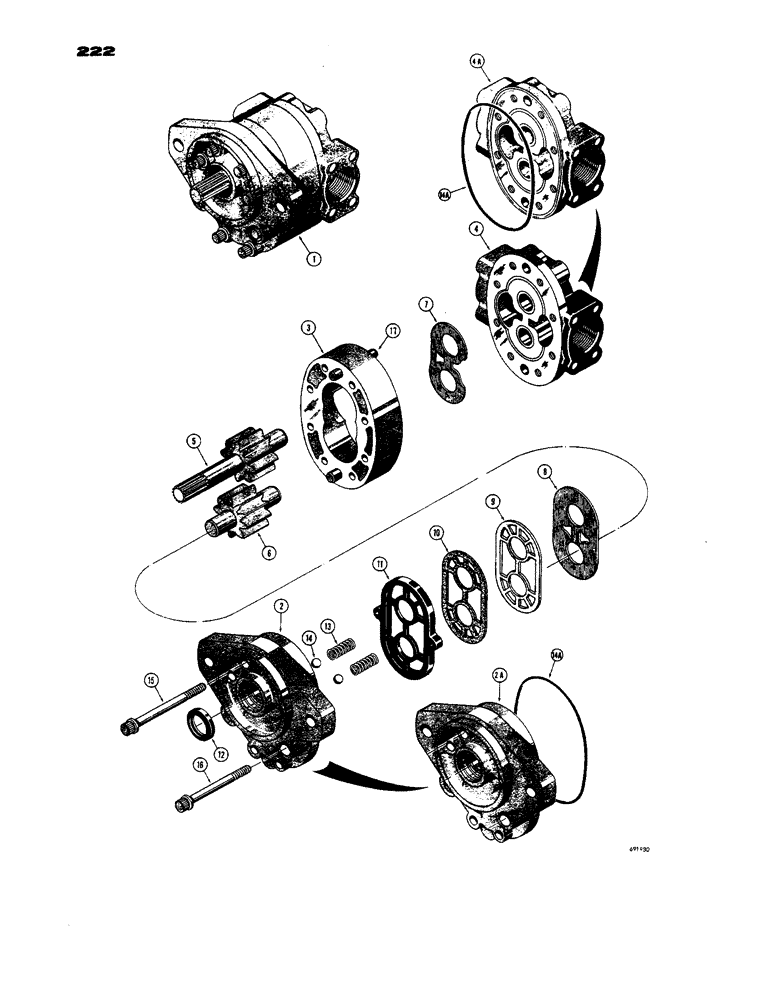

Запчасти Case 450 (222) - D31254 AND D41390 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D31254
X
PUMP - hydraulic (21 G.P.M. at 2000 R.P.M. and 2000 P.S.I.) When stock is exhausted, order D41390 pump for service, Includes: Ref. 2 - 14A
1шт.
1
D41390
PUMP
PUMP - hydraulic (21 G.P.M. at 2000 R.P.M. and 2000 P.S.I.), Includes: Ref. 2 - 14A
1шт.
1
DR41390
REMAN-HYD PUMP
Remanufactured, Hydraulic Pump
1шт.
1
DC41390
CORE-HYDRAULIC PUMP
Return Part Number
1шт.
1
87644746R
REMAN-HYD PUMP
450, (PRIOR TO S/N 3038436), Reman For New P/N D41390 & 87644746
1шт.
1
87644746C
CORE-HYDRAULIC PUMP
Return Part Number
1шт.
2
D31395
PLATE ASSY.
COVER - driveshaft end (When stock is exhausted, order D48879 cover and D48887 seal for service)
1шт.
2a
D48879
COVER
COVER - drive shaft end
1шт.
3
D49371
HOUSING
BODY - center
1шт.
4
D31407
PLATE ASSY.
COVER - port end (When stock is exhausted, order D48883 cover and D48887 seal for service)
1шт.
4a
D48883
COVER
COVER - drive and idler (When stock is exhausted, use D49380 gear set)
1шт.
D49380
GEAR
GEAR SET - drive and idler, Includes: Ref. 5 and 6
1шт.
5
NSS
NOT SOLD SEPARAT
GEAR AND SHAFT ASSEMBLY - drive
1шт.
6
NSS
NOT SOLD SEPARAT
GEAR AND SHAFT ASSEMBLY - idler
1шт.
D31396
KIT
KIT - seal (When stock is exhausted, order D49374 kit for service), Includes: Ref. 7 - 14A
1шт.
D49374
SERVICE KIT
KIT - pump rebuild, Includes: Ref. 7 - 14A
1шт.
7
D31402
SPARE PART PLATE - thrust (When stock is exhausted, order D41322 plate for service)
1шт.
D41322
PLATE
PLATE - thrust
1шт.
8
D31400
DIAPHRAGM
DIAPHRAGM - When stock is exhausted, order D41321 diaphragm for service)
1шт.
D41321
DIAPHRAGM
DIAPHRAGM
1шт.
9
A42305
GASKET
GASKET - protector
1шт.
10
D39319
GASKET
GASKET - backup (When stock is exhausted, order A41244 gasket for service)
1шт.
A41244
GASKET
GASKET - backup
1шт.
11
D31397
SEAL
SEAL - diaphragm
1шт.
12
D39318
X
SEAL - shaft (When stock is exhausted, order A25139 gasket for service)
1шт.
A25139
SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk
SEAL - shaft
1шт.
13
D31403
SPRING
SPRING - ball retaining
2шт.
14
D31404
BALL
BALL - steel (13/32")
2шт.
14a
D48887
O-RING
SEAL - "O"ring (D49374 kit)
2шт.
15
166-54
12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8
SCREW - Ferry Cap (3/8" - 16 NC x 3-1/4")
4шт.
16
166-55
12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8
SCREW - Ferry Cap (3/8" - 16 NC x 3-1/2")
4шт.
17
D49373
DOWEL
DOWEL - body
2шт.
