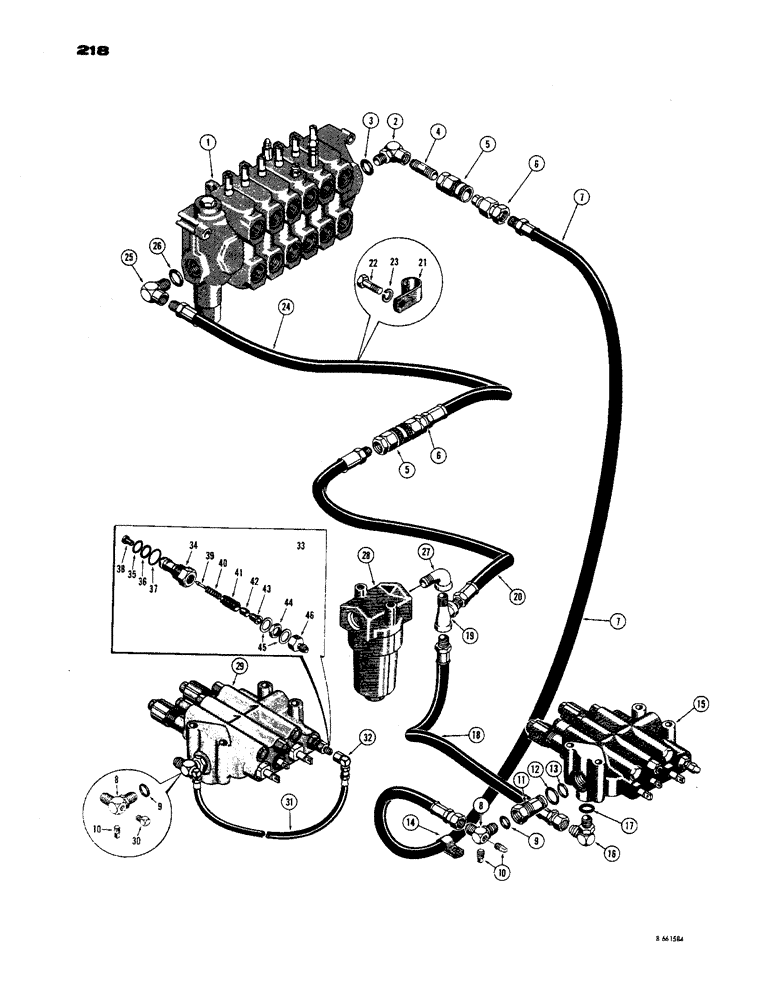

Запчасти Case 450 (218) - BASIC BACKHOE HYDRAULICS (MODEL 32 BACKHOE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - backhoe control (See parts catalog no. 1105 for proper valves)

1шт.

2

D26463

FITTING

ELBOW - adjustable, 90 degree, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - connecting

1шт.

5

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (See parts catalog no. 1105 for breakdown)

2шт.

6

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (See parts catalog no. 1105 for breakdown)

2шт.

7

D35421

HOSE - pressure line (72" long)

1шт.

8

D35472

FITTING

ELBOW - special, 90 degree, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

10

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

11

D35401

FITTING

- carry over (Backhoe Models only), Includes: Ref. 12 and 13

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring (Large)

1шт.

13

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O"ring (Small)

1шт.

14

D34033

CLAMP

- hose

1шт.

15

REF

INSTRUCTION

VALVE - control, equipment (See Figures 262 and 264 for proper valves)

1шт.

16

D25135

X

ELBOW - special, 90 degree, Includes: Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

18

D35045

LARGE HOSE

HOSE - valve to tee (22" long)

1шт.

19

221-695

FITTING,1" NPT

TEE - connecting () 1" NPT

1шт.

20

D35388

HOSE - return line, front (24" long)

1шт.

21

D34163

CLAMP

- hose

1шт.

22

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

D33709

FLEXIBLE HOSE

HOSE - return line, rear (3/8" long)

1шт.

25

D26463

FITTING

ELBOW - adjustable, 90 degree, Includes: Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

27

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- pipe, 90 degree

1шт.

28

D32254

FILTER ASSY

- return line, Marvel part no. 33425 (Parts list Figure 224) When stock is exhausted use D43567 filter for service

1шт.

D43567

FILTER ASSY

- return line, Marvel part no. M-2737A (Parts list Figure 224(1))

1шт.

29

REF

INSTRUCTION

VALVE - control, equipment (See Figures 262 and 264 for proper valves), dozer/backhoe models

1шт.

30

R14868

X

ELBOW - special, 90 degree, dozer/backhoe models

1шт.

31

D37189

HOSE

- pressure line to dual relief valve (22" long), dozer/backhoe models

1шт.

32

D35678

X

ELBOW - special, 90 degree, dozer/backhoe models

1шт.

33

D35436

VALVE - relief, dual main, dozer/backhoe models, Includes: Ref. 34 - 46

1шт.

34

D37045

CAP

- main relief vlave, dozer/backhoe models

1шт.

35

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O"ring (Rear), dozer/backhoe models

1шт.

36

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, dozer/backhoe models

1шт.

38

D26266

SEAT

SEAL - pilot, dozer/backhoe models

1шт.

39

D26267

PLUNGER

- pilot, dozer/backhoe models

1шт.

40

D26268

SPRING

- pilot, dozer/backhoe models

1шт.

41

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjustable, dozer/backhoe models

1шт.

42

D27261

PISTON

- relief valve, dozer/backhoe models

1шт.

43

L30738

RETAINER - piston, dozer/backhoe models

1шт.

44

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, dozer/backhoe models

1шт.

45

D27259

SEAL

WASHER - special, dozer/backhoe models

2шт.

46

D27260

FITTING

- pilot, dozer/backhoe models

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring (Front), dozer/backhoe models

1шт.
