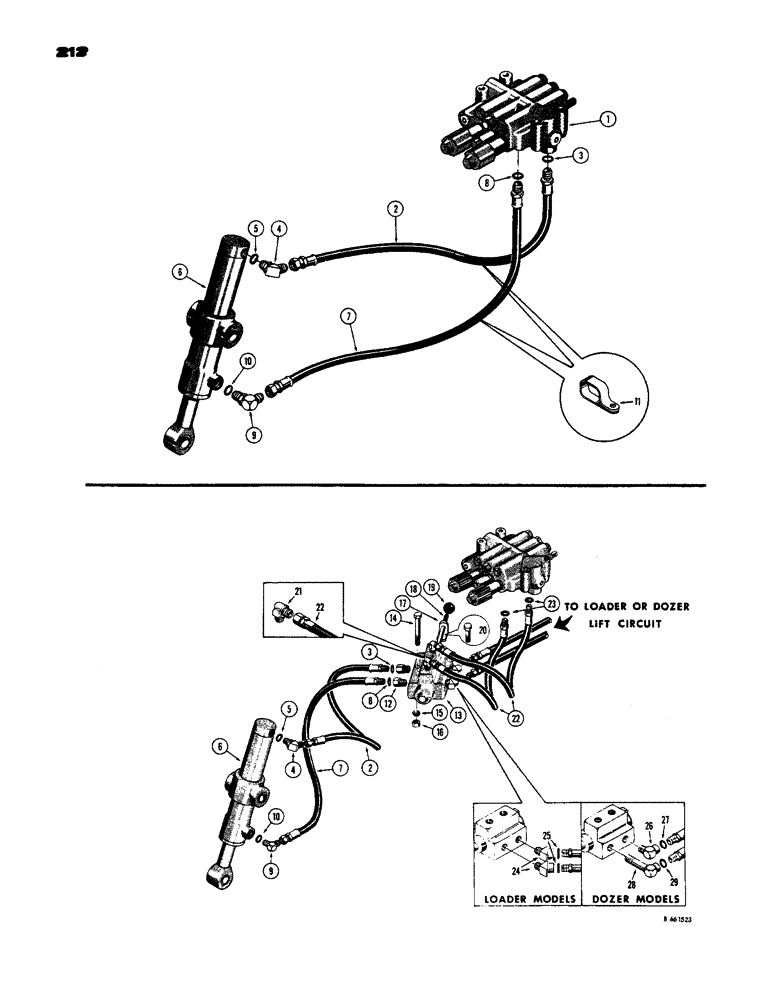

Запчасти Case 450 (212) - RIPPER HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - control, hydraulic (See Figures 262 or 264 for proper valves)
1шт.
2
D37343
HOSE
- control valve to upper cylinder port (43" long), Includes: Ref. 3
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
4
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 45", upper cylinder port, Incl. Ref 5
1шт.
5
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
6
REF
INSTRUCTION
CYLINDER - ripper (See Figure 227A for cylinders)
1шт.
7
D35069
HOSE
- lower cylinder port to control valve (48" long), Includes: Ref. 8
1шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
9
R20839
FITTING
ELBOW - male, 90 degree (Special restrictor), Includes: Ref. 10
1шт.
10
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring
1шт.
11
51200329
CLIP
CLAMP - hose (When stock is exhausted, use D39696)
1шт.
D39696
CLAMP,25.40mm - 13.49mm Bolt, CTD
- hose
1шт.
12
218-5040
ADAPTER
- straight, field installed ripper hyd
2шт.
13
D26726
VALVE
- diversion (Parts list Figure 260), field installed ripper hyd
1шт.
14
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
HHCS - 3/8" - 16 NC x 3", field installed ripper hyd
2шт.
15
92-6
LOCK WASHER,3/8"
med. sect., field installed ripper hyd 3/8"
2шт.
16
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC), field installed ripper hyd
2шт.
17
D38913
BRACKET
- guide, diversion valve rod, field installed ripper hyd
1шт.
18
D38914
ROD
- diversion valve control, field installed ripper hyd
1шт.
19
70213
KNOB
- control rod, field installed ripper hyd
1шт.
20
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Field installed ripper hyd Hex, 1/2"-13 x 2", G5
1шт.
21
218-494
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF
- 90 degree, field installed ripper hyd
2шт.
22
D25823
HOSE
- diversion valve to control valve (16-1/2" long), field installed ripper hyd, Includes: Ref. 23
2шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring, field installed ripper hyd
1шт.
24
D38916
FITTING
ELBOW - special (Used on Loader Models only), field installed ripper hyd, Includes: Ref. 25
2шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring, field installed ripper hyd
1шт.
26
D40249
FITTING
ELBOW - special (Used on Dozer Models only), field installed ripper hyd, Includes: Ref. 27
1шт.
27
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring, field installed ripper hyd
1шт.
28
D40250
FITTING
ELBOW - special (Used on Dozer Models only), field installed ripper hyd, Includes: Ref. 29
1шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL - "O"ring, field installed ripper hyd
1шт.
