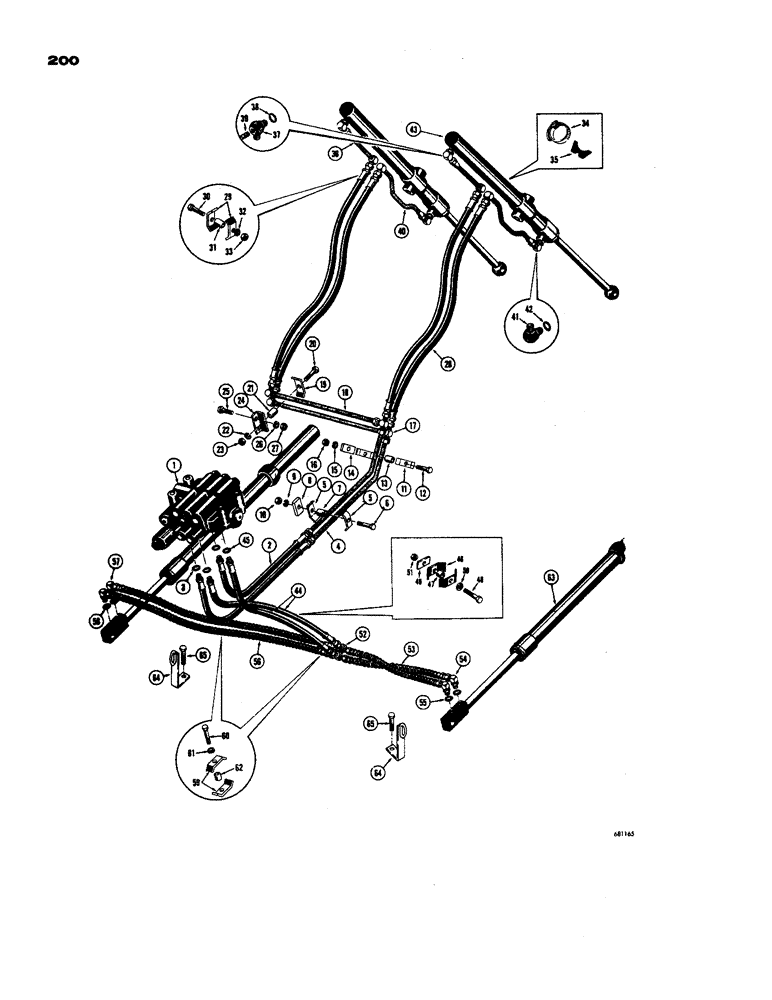

Запчасти Case 450 (200) - POWER ANGLING DOZER HYDRAULICS, DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (See Figures 262 or 264 for proper valve)

1шт.

2

D34759

HOSE

- valve to lift cylinder crossover tuber (25" long), Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D34753

TUBE

- hose to lift cylinder crossover tubes

2шт.

5

D31782

FIXING BRACKET

CLAMP - tube

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

1шт.

7

D35228

SPACER

- clamp

1шт.

8

D35229

SPACER - clamp (Used on crawlers without step plate only)

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

11

R17319

CLAMP

- tube

2шт.

12

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

13

D33552

BUSHING

SPACER - tube clamp

1шт.

14

D35211

BLOCK - clamp

1шт.

15

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

17

218-595

TEE,7/8"-14, 37 Degree

- tube, crossover

2шт.

18

D34749

TUBE

- crossover, lift cylinder

2шт.

19

R16916

CLAMP - tube

1шт.

20

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

21

D33552

BUSHING

SPACER - tube clamp

1шт.

22

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

24

D35164

BRACKET - tube mounting

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

28

19178

HOSE

- crossover tubes to lift cylinders (33-1/2" long)

4шт.

29

D33316

CLAMP

- hose (Early production)

4шт.

30

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

31

D33554

BUSHING

SPACER - hose clamp

2шт.

32

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

34

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube, adj. (Late production)

4шт.

35

D38648

BLOCK

SADDLE - tube, rubber

4шт.

36

D34747

TUBE

- hose to lift cylinder upper port

2шт.

37

R19576

FITTING

ELBOW - 90 degree, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

39

221-11

PLUG,Sq Hd, 1/8"-27

- pipe sq. hd. (1/8" NPT)

1шт.

40

D34745

TUBE

- hose to lift cylinder lower port

2шт.

41

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incl. Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

43

REF

INSTRUCTION

CYLINDER - lift (See Figure 227A for cylinders)

2шт.

44

D34838

HOSE

- valve to tee (33" long), power angling dozer hyd., Includes: Ref. 45

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, power angling dozer hyd

1шт.

46

D33316

CLAMP

- hose, power angling dozer hyd

2шт.

47

D33829

BUSHING

SPACER - hose clamp, power angling dozer hyd

1шт.

48

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

HHCS - 5/16" - 18 NC x 2-1/2", power angling dozer hyd

1шт.

49

D35211

SPACER, power anglind dozer hyd

1шт.

50

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16"), power angling dozer hyd

1шт.

51

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC), power angling dozer hyd

1шт.

52

218-595

TEE,7/8"-14, 37 Degree

- hose, power angling dozer hyd

2шт.

53

D34834

HOSE

- tee to R.H. angling cylinder (23" long), power dozer hyd

2шт.

54

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, power angling dozer hyd, Incl. Ref. 55

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, power angling dozer hyd

1шт.

56

D34836

HOSE

- tee to L.H. angling cylinder (49" long), power dozer hyd

2шт.

57

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, power angling dozer hyd, Incl. Ref. 58

2шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, power angling dozer hyd

1шт.

59

R17319

CLAMP

- hose, power angling dozer hyd

4шт.

60

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Power angling dozer hyd Hex, 5/16"-18 x 2 1/2", G5

2шт.

61

92-5

LOCK WASHER,5/16"

power angling dozer hyd 5/16"

2шт.

62

D33829

BUSHING

SPACER - hose clamp, power angling dozer hyd

2шт.

63

REF

INSTRUCTION

CYLINDER - angling (See Figure 227A for cylinders), power angling dozer hyd

2шт.

64

D40793

GUIDE - hose, power angling dozer hyd

2шт.

65

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Power angling dozer hyd Hex, 3/4"-10 x 1 3/4", G5

2шт.

64

D40793

GUIDE - hose, power angling dozer hyd

2шт.

49

D35211

SPACER, power angling dozer hyd

1шт.
