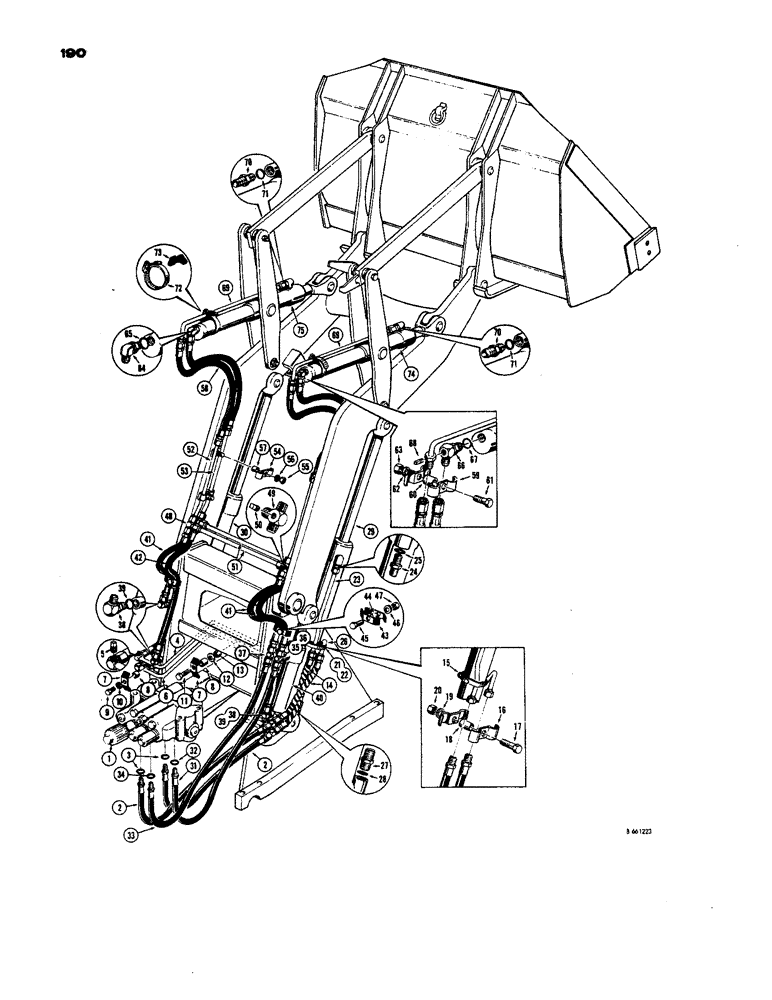

Запчасти Case 450 (190) - LOADER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (See Figures 262 and 264 for proper valve)

1шт.

2

D34782

HOSE

- valve to lift cylinder crossover tube (20-3/4" long), Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

D34830

TUBE

- crossover, lift cylinder (Upper)

1шт.

5

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. hd. (1/8" NPT)

1шт.

6

D34774

TUBE

- crossover, lift cylinder (Lower)

1шт.

7

R17319

CLAMP

- crossover tube

3шт.

8

D33552

BUSHING

SPACER - clamp

3шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

10

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

11

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

12

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

14

D34780

HOSE

- crossover tube to lift cylinder (19" long)

4шт.

15

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube, adj. (Early production)

2шт.

16

D33316

CLAMP

- tube (Early production)

4шт.

17

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

18

D36524

BUSHING

SPACER - tube clamp

2шт.

19

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

2шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

21

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube, adj. (Late production)

2шт.

22

D39502

SADDLE

- tube, rubber

2шт.

23

D34770

TUBE

- lift cylinder (Upper port)

2шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

26

D34772

TUBE

- lift cylinder (Lower port)

2шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

29

REF

INSTRUCTION

CYLINDER - lift, R.H. (See Figure 226 for cylinders)

1шт.

30

REF

INSTRUCTION

CYLINDER - lift, L.H. (See Figure 226 for cylinders)

1шт.

31

D34776

HOSE

- valve to hydra-leveling cylinder (Upper port) 27-1/2" long (Not used with anti-rollback system), Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

33

D34778

HOSE - valve to hydra-leveling cylinder (Lower port) 28-1/2" long (Not used with anti-rollback system), Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

35

D28551

TEE

- tube (At upper hydra-leveling cylinder port) R.H., Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

37

D34784

TUBE - hydra-leveling cylinder (Lower port)

1шт.

38

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree (Hydra-leveling cylinder), Incl. Ref. 39

3шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

REF

INSTRUCTION

CYLINDER - hydra-leveling (See Figure 226 for cylinders)

2шт.

41

D25670

FLEXIBLE HOSE

HOSE - hydra-leveling cylinder to crossover tube (26" long)

3шт.

42

D23062

HOSE

- hydra-leveling cylinder to crossover tube (38" long)

1шт.

43

D33316

CLAMP

- hose

4шт.

44

D36524

BUSHING

SPACER - hose clamp (Left side only)

1шт.

45

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

46

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

47

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

48

218-595

TEE,7/8"-14, 37 Degree

- crossover tube

3шт.

49

D34829

TEE - crossover tube (Upper R.H. side)

1шт.

50

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. hd. (1/8" NPT)

1шт.

51

D34768

TUBE

- dump cylinder crossover

2шт.

52

D34764

TUBE

- dump cylinder at loader arm (Upper)

2шт.

53

D34766

TUBE

- dump cylinder at loader arm (Lower)

2шт.

54

17179

CLAMP - tube

4шт.

55

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16")

4шт.

56

195-21

WASHER,5/16"

- flat () 5/16"

4шт.

57

D35211

SPACER - clamp

4шт.

58

D24571

HOSE

- loader arm tube to dump cylinder (30-3/4")

4шт.

59

D33316

CLAMP

- hose (Early production)

4шт.

60

D33554

BUSHING

SPACER - hose clamp

2шт.

61

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

62

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

2шт.

63

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

64

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree (Dump cylinder), Incl. Ref. 65

1шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

66

R19576

FITTING

ELBOW - special, Includes: Ref. 67

1шт.

67

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

68

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, sq. hd. (1/8" NPT)

1шт.

69

D34762

TUBE

- dump cylinder front port

2шт.

70

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, Includes: Ref. 71

2шт.

71

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

72

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube (Late production)

2шт.

73

D38648

BLOCK

SADDLE - tube, rubber

2шт.

74

REF

INSTRUCTION

CYLINDER - dump, R.H. (See Figure 226 for cylinders)

1шт.

70

REF

INSTRUCTION

CYLINDER - dump, L.H. (See Figure 226 for cylinders)

1шт.

53

D34766

TUBE

- dump cylinder at loader arm (Lower)

2шт.
