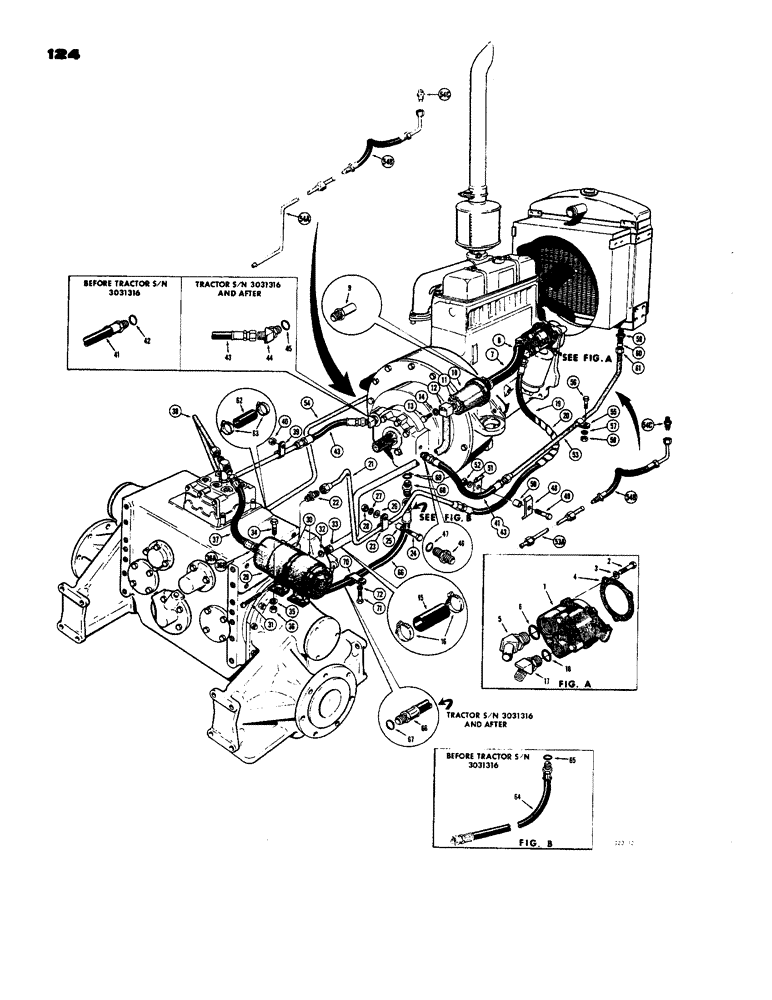

Запчасти Case 450 (124) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D35016

PUMP

- torque converter (Parts list Figure 98)

1шт.

2

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

A30042

GASKET

- torque converter pump

1шт.

5

D35138

ELBOW

- special, 45 degree, Includes: Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

D33365

HOSE

- section, transmission (Front)

1шт.

8

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

9

D35137

LINE

CONNECTOR - hose

1шт.

10

D35144

FILTER

FILTER - hydraulic oil (Parts list Figure 128)

1шт.

11

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - pipe (1" NPT x 2")

1шт.

12

D35149

TUBE

- suction, transmission

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

15

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction, transmission (Rear) 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

16

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

17

D35130

X

ELBOW - special (At pump), Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

D35136

HOSE

- pump to filter (38" long)

1шт.

20

R12586

TAPE

WRAP - hose

1шт.

21

D35151

TUBE

-, Serial Range: pump-filter

1шт.

22

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, straight (Used on D35153 filter)

1шт.

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male straight (Used on D46132 filter)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL "O" ring (Not shown)

1шт.

23

D34174

CLAMP,5/8", 1/2" Bolt

- tube

1шт.

24

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

25

D34003

SPACER - clamp (Use on Loader Models only)

1шт.

26

95-8

WASHER,1/2"

flat 1/2"

1шт.

27

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

29

D35153

FILTER

- hydraulic oil (Parts list Figure 128) When stock is exhausted use D46132 filter, 218-5063 connector and 218-5094 adapter for service

1шт.

D46132

FILTER

- hydraulic oil (Parts list Figure 128)

1шт.

30

D31217

BRACKET

- oil filter (D35153 filter only)

1шт.

31

75-544

RHMS - 5/16" - 18 NC x 2-3/4" (D35153 filter only)

4шт.

32

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4-8шт.

35

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4-8шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4-8шт.

36a

218-5094

ADAPTER,1-3/16" - 12 ORB x 3/4" NPT

ADAPTER - straight (D46132 filter only), Includes: Ref. 36B

1шт.

36b

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

37

D35133

HOSE

- filter to transmission control valve (17" long)

1шт.

38

D35150

TUBE - transmission control valve to torque converter (Used before tractor S/N 3031316) See D38529 tube assembly

1шт.

D38529

HOSE

TUBE - transmission control valve to torque converter (Use with tractor S/N 3031316 and after) See D35150 tube

1шт.

39

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube

1шт.

40

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock (3/8" - 16 NC

1шт.

41

D35134

TUBE

HOSE - 1 - used from transmission control valve to torque converter and 1 - used from torque converter to oil cooler (Used before tractor S/N 301316) 13" long (See D38533 hose)

2шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Use with D35134 hose)

1шт.

43

D38533

HOSE

- 1 - used from transmission control valve to torque converter and 1 - used from torque converter to oil cooler (Used with tractor S/N 3031316 and after) 11-3/4" long (See D35134 hose)

2шт.

44

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree (Used with D38533 hose only), Incl. Ref 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (218-5137 elbow)

1шт.

46

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight (Used with D38533 hose if used), Includes: Ref. 47

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

48

D33316

CLAMP

PLATE - clamp, hose

2шт.

49

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

50

D33554

BUSHING

SPACER - clamp

1шт.

51

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

52

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

53

D31546

TUBE - R.H., converter to oil cooler (Use R24231 tube, R24230 hose and 218-444 connector)

1шт.

53a

R24231

TUBE

- R.H. converter to oil cooler

1шт.

54

D35152

TUBE

- L.H., oil cooler to sump (Use R24232 tube, R24230 hose and 218-444 connector)

1шт.

54b

R24230

HOSE

- sump or converter to oil cooler (13"long)

2шт.

54c

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - straight, male (R24230 hose)

2шт.

55

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- R.H. and L.H. tubes

3шт.

56

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

57

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

58

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

D35131

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight (D35146 and D35152 tube), Includes: Ref. 59 - 61

2шт.

59

NSS

NOT SOLD SEPARAT

FITTING

1шт.

60

D37363

SLEEVE

1шт.

61

D37364

NUT

1шт.

62

D35139

HOSE

- oil cooler so sump

1шт.

63

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

64

D35135

HOSE

- torque converter to sump (Used before tractor S/N 3031316) 33" long (See D38702 hose), Includes: Ref. 65

1шт.

65

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

66

D38702

HOSE

- torque converter to sump (Use with tractor S/N 3031316 and after) 33" long (See D35135 hose), Includes: Ref. 67

1шт.

67

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

68

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight (Use with D38702 hose only), Includes: Ref. 69

1шт.

69

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

70

R12102

CLAMP

- hose

1шт.

71

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

72

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.
