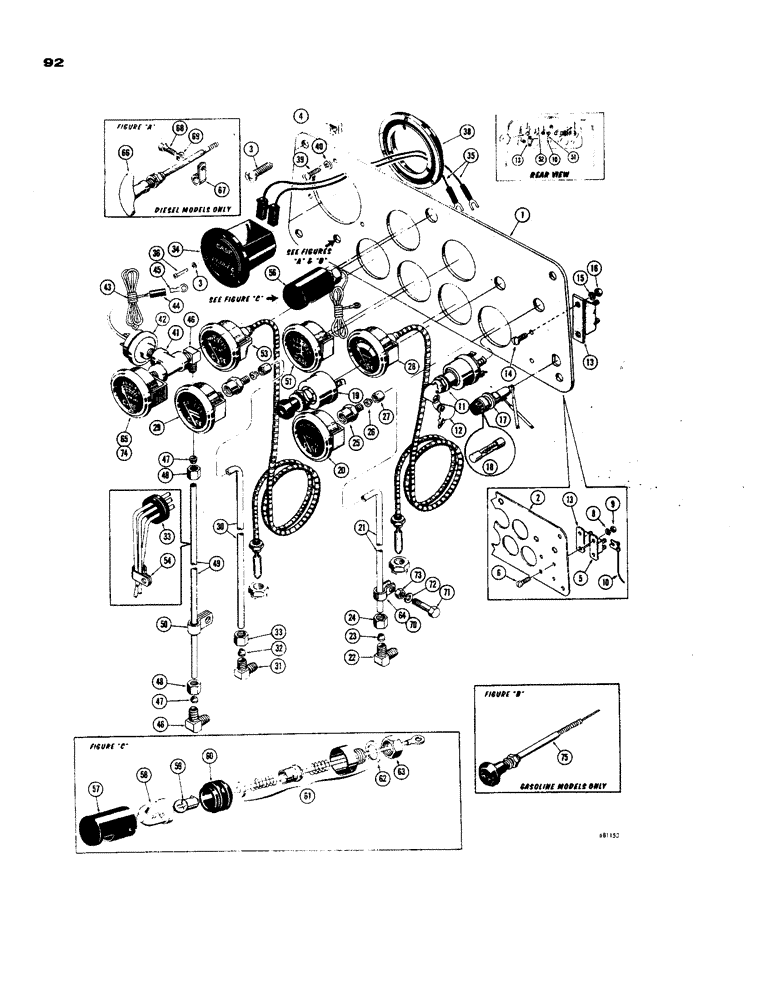

Запчасти Case 450 (092) - INSTRUMENT PANEL, LOADER MODELS ONLY (06) - ELECTRICAL SYSTEMS

1

D35037

X

PANEL - instrument, when stock is exhausted, order D43660 panel and refs 5 thru 10 for service

1шт.

2

D43660

PANEL

- instrument

1шт.

3

174-212

SCREW,Sl Rnd Hd, 5/16" - 24 x 3/4"

RHMS - 5/16" - 24 NF x 3/4"

4шт.

4

131-139

SPRING NUT,Ret, 5/16"-24

Tinnerman Ret, 5/16"-24

2шт.

5

D37203

BREAKER

CIRCUIT BREAKER - 15 amps, use on D43660 panel only

1шт.

6

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - no. 6 -32 NC x 1/2', Use on D43660 panel only

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, , Use on D43660 panel only #6

2шт.

9

129-15

NUT,#6-32

Use on D43660 panel only #6-32

2шт.

10

A11768

ELECTRICAL WIRE

WIRE - jumper (Use with D37203 circuit breaker)

2шт.

11

D35092

SWITCH

- ignition, Includes: Ref. 12

1шт.

12

D36822

KEY

- switch, set of two

1шт.

13

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amp

1шт.

14

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - no. 6 - 32 NC x 1/2"

2шт.

15

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

2шт.

16

129-15

NUT,#6-32

2шт.

17

D35442

HOLDER - fuse (Use on D35037 panel only), Includes: Ref. 18

1шт.

18

223-20

FUSE,20 Amp, Type SFE

- AGC, 20 amp.

1шт.

19

D35065

SWITCH

- light

1шт.

20

D35087

ELECTRICAL GAUGE

GAUGE - transmission oil pressure

1шт.

21

D35089

TUBE

- transmission to pressure gauge

1шт.

22

D35081

FITTING

ELBOW - male, special, Includes: Ref. 23 and 24

1шт.

23

D37176

SLEEVE

1шт.

24

D37362

TUBE NUT

1шт.

25

D35091

PIPE FITTING

CONNECTOR - female, special, Includes: Ref. 26 and 27

2шт.

26

D37176

SLEEVE

1шт.

27

D37362

TUBE NUT

1шт.

28

R15126

X

GAUGE - converter temperature (When stock is exhausted, use D44005 gauge for service)

1шт.

D44005

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

29

R15953

GAUGE

- converter oil pressure

1шт.

30

D35089

TUBE

- torque converter to pressure gauge

1шт.

31

D35081

FITTING

ELBOW - male, special, Includes: Ref. 32 and 33

1шт.

32

D37176

SLEEVE

1шт.

33

D37362

TUBE NUT

1шт.

D39286

GAUGE

KIT - hourmeter, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

HOURMETER - engine

1шт.

35

D39285

ELECTRICAL WIRE

LEAD - wire (36" long)

2шт.

D39284

KIT

PACKET - mounting hardware

1шт.

36

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - no. 6 - 32 NC x 1/2"

3шт.

37

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

38

D35076

DAMPENER - vibration

1шт.

39

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - no. 6 - 32 NC x 1/2"

3шт.

40

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

3шт.

41

221-421

TEE,1/8" NPT

- pipe () 1/8" NPT

1шт.

42

D28798

SWITCH

- pressure assembly, Includes: Ref. 43

1шт.

43

223-50

TERMINAL CONNECTOR,14 - 16

WIRE - pressure switch

1шт.

44

223-83

SLEEVE

- wire

1шт.

45

54772R2

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

46

D35081

FITTING

ELBOW - male, special, Includes: Ref. 47 and 48

2шт.

47

D37176

SLEEVE

1шт.

48

D37362

TUBE NUT

1шт.

49

D35090

TUBE

- engine to oil pressure gauge

1шт.

50

80049853

YOKE

- pressure tube

1шт.

51

R18748

AMMETER

GAUGE - ammeter

1шт.

52

A11778

WIRE - jumper (When stock is exhausted, order G44017 wire for service)

2шт.

G44017

ELECTRICAL WIRE

WIRE - jumper

2шт.

53

10839

ELECTRICAL GAUGE

GAUGE - heat indicator, engine

1шт.

54

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- pressure tube

1шт.

55

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

1шт.

56

D33212

INTERIOR LIGHT

LAMP - dash, Includes: Ref. 57 - 61

1шт.

57

R22237

COVER

- dash light

1шт.

58

R22232

SIGHTGLASS

LENS - dash light

1шт.

59

71421

BULB,R5W, 12V, 5W

1шт.

60

NSS

NOT SOLD SEPARAT

MOUNT - rubber

1шт.

61

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY

1шт.

62

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

63

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam (5/8" - 18 NF)

1шт.

64

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

TRANSMISSION - oil pressure tube (Use existing hardware), diesel models only

1шт.

65

D22853

GAUGE

- oil pressure, diesel models only

1шт.

66

D22773

CONTROL

- engine shut-off, diesel models only

1шт.

67

A26673

CLIP

CLAMP - engine shut-off control, diesel models only

1шт.

68

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS - 1/4" - 12 NC x 1/2", diesel models only

1шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Diesel models only 1/4"

1шт.

70

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- transmission oil pressure tube, gas models only

1шт.

71

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Gas models only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

72

92-6

LOCK WASHER,3/8"

gas models only 3/8"

1шт.

73

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), gas models only

1шт.

74

R15952

GAUGE - oil pressure, gas models only

1шт.

75

A36578

ROD

CONTROL - choke, gas models only

1шт.
