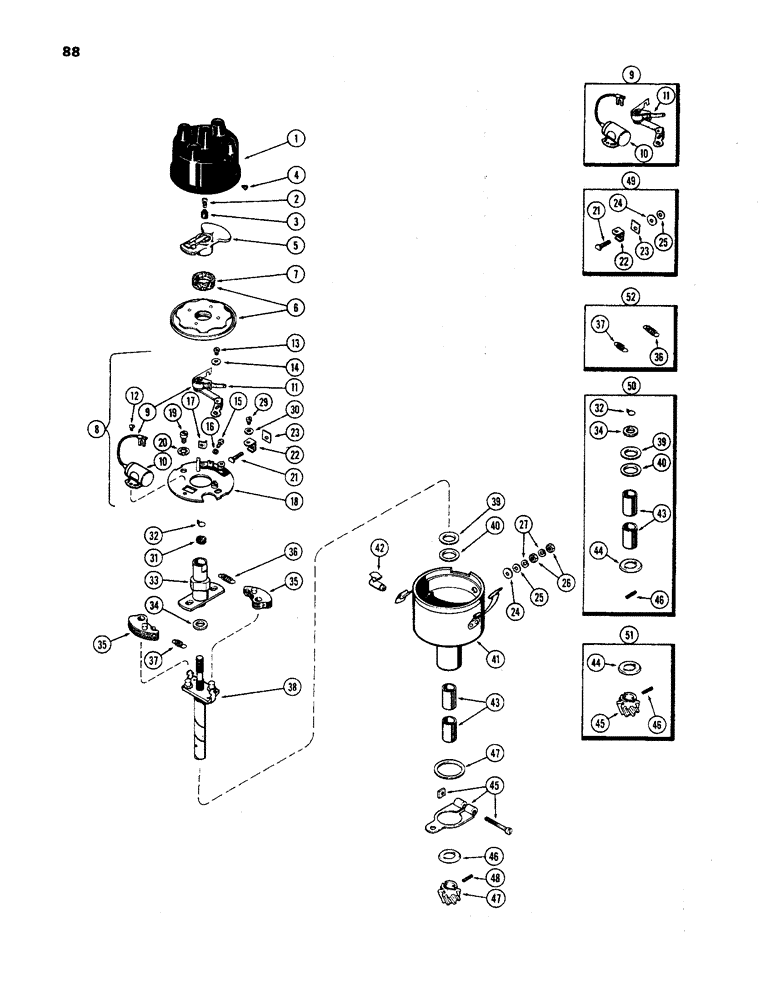

Запчасти Case 450 (088) - A30358 DISTRIBUTOR, (188) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

A30358

DISTRIBUTOR

ASSY. - (Prestolite #IAD-6003-2F), Includes: Ref. 1 - 48

1шт.

1

A8368

CAP

ASSY., Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - brush

1шт.

3

NSS

NOT SOLD SEPARAT

BRUSH - (carbon)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - vent hole (rubber)

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

COVER ASSY. - breaker plate, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - dust (felt)

1шт.

8

A25196

PLATE

ASSY. - breaker, Includes: Ref. 9 - 18

1шт.

9

A40929

KIT

POINT & CONDENSER KIT, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER

1шт.

11

NSS

NOT SOLD SEPARAT

POINT SET

1шт.

12

177-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

13

177-72

SCREW - point set (#8-32 x 3/16")

1шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

15

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- clip (#6-32 x 5/16" flat. hd.)

1шт.

16

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

17

NSS

NOT SOLD SEPARAT

CLIP - condenser lead

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - breaker

1шт.

19

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- plate (#10-32 x 5/16" fill. hd.)

2шт.

20

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

21

NSS

NOT SOLD SEPARAT

TERMINAL - lo-tension contact (order ref. 49)

1шт.

22

NSS

NOT SOLD SEPARAT

CONNECTOR - lo-tension term. (order ref. 49)

1шт.

23

NSS

NOT SOLD SEPARAT

INSULATION - contact, inner (order ref. 49)

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - lo-tension term. (order ref. 49)

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATION - contact, outer (order ref. 49)

1шт.

26

129-27

NUT,Hex, #10 - 32

- lo-tension term. (#10 - 32 Hex.)

2шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

29

174-56

SCREW - clip (#6 - 32 x 3/16" Rd. Hd.)

1шт.

30

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

31

NSS

NOT SOLD SEPARAT

OILER - (in cam)

1шт.

32

A25180

RING, SNAP

RING - snap, shaft ret. (in cam)

1шт.

33

A25193

CAM

ASSY.

1шт.

34

NSS

NOT SOLD SEPARAT

SPACER - cam (order ref. 50)

1шт.

35

A25198

WEIGHT

- governor

2шт.

36

NSS

NOT SOLD SEPARAT

SPRING - governor, large (order ref. 52)

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - governor, small (order ref. 52)

1шт.

38

A25177

SHAFT

- drive

1шт.

39

A24752

WASHER

- thrust, inner (see ref. 50)

1шт.

40

A24753

WASHER

- thrust, outer (see ref. 50)

1шт.

41

NSS

NOT SOLD SEPARAT

BASE ASSY. - (order A30358)

1шт.

42

A24887

OILER

1шт.

43

NSS

NOT SOLD SEPARAT

BEARING - base (order ref. 50)

2шт.

44

A30080

THRUST WASHER

- thrust

1шт.

45

A29989

ARM

ASSY. - advance

1шт.

46

A25200

WASHER

- thrust, drive gear (see ref. 50 & 51)

1шт.

47

NSS

NOT SOLD SEPARAT

GEAR - drive (order ref. 51)

1шт.

48

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

49

A40321

KIT

TERMINAL KIT - lo-contact

1шт.

50

A40322

KIT

REPAIR KIT - internal

1шт.

51

A40323

GEAR

REPAIR KIT - external

1шт.

52

A25199

SPRING KIT

- governor

1шт.

A42818

KIT

wick, Ref. 31 and 34

1шт.
