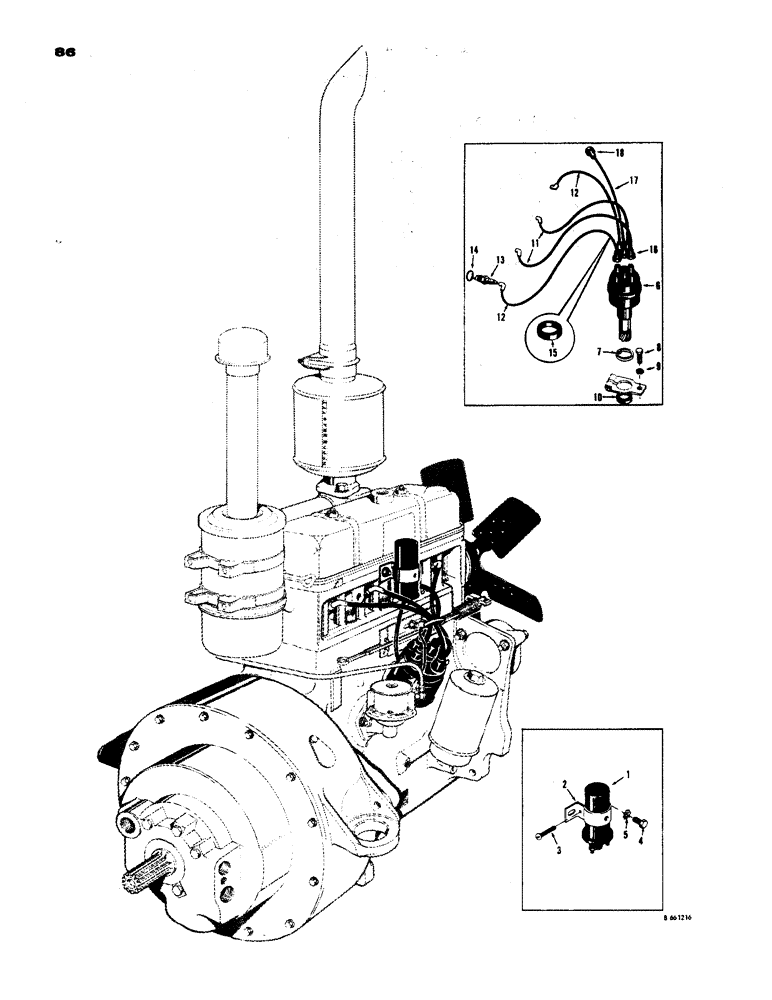

Запчасти Case 450 (086) - COIL, DISTRIBUTOR AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

A33438

COIL

- ignition

1шт.

2

G46106

BRACKET

- mounting

1шт.

3

178-540

SCREW - round head self-tapping (No. 10 x1-1/2")

1шт.

4

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

5

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER - med. sect. lock (5/16")

2шт.

6

A30358

DISTRIBUTOR

- ignition (Parts list Page 89)

1шт.

7

A30080

THRUST WASHER

- thrust, distributor advance arm

1шт.

8

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - distributor to block

1шт.

11

A29994

CABLE

WIRE - no. 2 and no. 3 spark, Serial Range: plugs-distributor

2шт.

12

G44044

ELECTRICAL WIRE

WIRE - no. 1 and no. 4 spark, Serial Range: plugs-distributor

2шт.

13

G44840

SPARK PLUG

- Prestolite no. 18 8, Includes: Ref. 14

4шт.

14

G46040

GASKET - spark plug

1шт.

15

A30109

WASHER

RETAINER - spark plug wire

1шт.

16

A29338

COVER

NIPPLE - rubber, spark plug wires and coil wires at distributor

5шт.

17

G44085

WIRE -, Serial Range: coil-distributor

1шт.

18

G46803

BOOT

NIPPLE - rubber, coil wire at coil

1шт.
