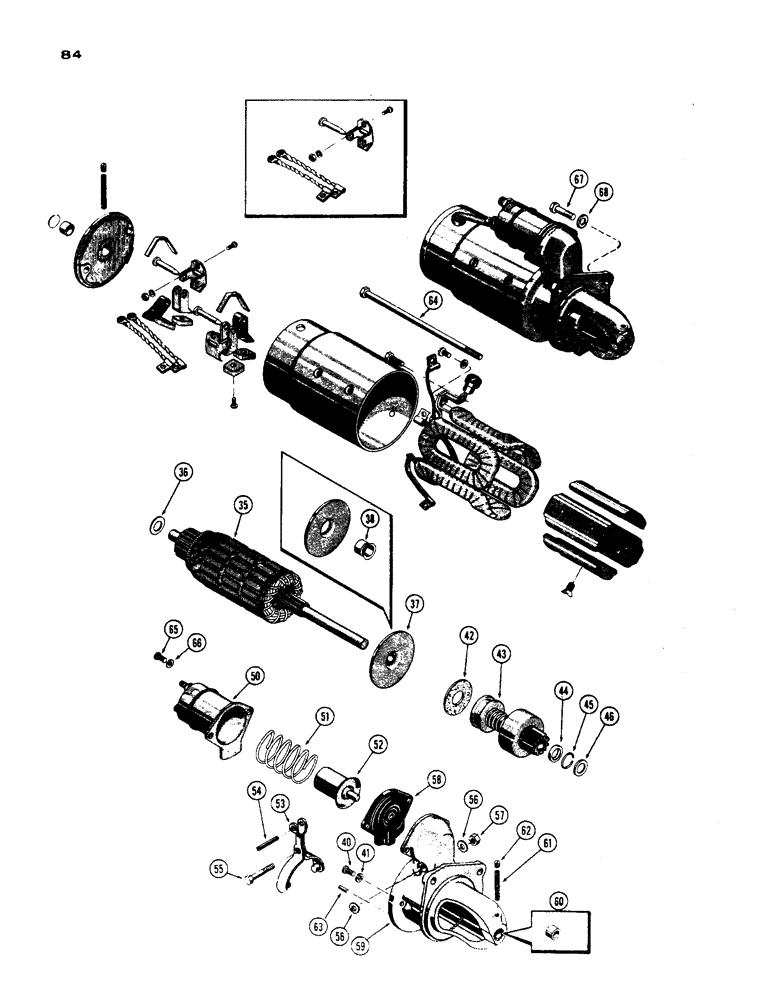

Запчасти Case 450 (084) - D45731, D32189 & D39988 STARTERS, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

D45731

X

STARTER ASSY. - (continued from figure 82), Includes: Ref. 35 - 66

1шт.

D39988

X

STARTER ASSY. - (cont. from figure 82) (order D45731), Includes: Ref. 35 - 66

1шт.

D32189

STARTER ASSY. - (Continued from figure 82) (Order D45731), Includes: Ref. 35 - 66

1шт.

35

A25547

ARMATURE

1шт.

36

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, commutator end

1шт.

37

A40215

PLATE ASSY.

BEARING ASSY. - center (use w/D39988, and D45731 Starter), Includes: Ref. 38

1шт.

A25549

PLATE

BEARING ASSY. - center (use w/D32189 Starter) (Not Illust.), Includes: Ref. 38

1шт.

38

R15038

BUSHING

- center bearing (used w/D45731, D32189 & D39988 Starters)

1шт.

A25409

SEAL

SEAL - oil (used w/D32189 Starter) (Not illust.)

1шт.

40

A41959

SCREW,#10 - 32 x 3/8"

- ctr. brg. to drive hsg.

2шт.

41

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, ctr. brg. screw

2шт.

42

R15043

WASHER

- brake, drive end

1шт.

43

A41871

DRIVE

ASSY. - Bendix (used w/D32189 & D39988 Starters)

1шт.

43

A41871

DRIVE

ASSY, Bendix (used w/D45731 Starter)

1шт.

44

R15049

COLLAR

- stop, drive pinion

1шт.

45

R15048

RING

- snap, collar ret.

1шт.

46

A25385

WASHER

- drive pinion spacer

1шт.

50

G44891

SOLENOID

ASSY. - (See figure 85A)

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A40218

PLUNGER

- solenoid

1шт.

53

A40220

LEVER

- shift

1шт.

54

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , shift lever to plunger 3/16" x 13/16", Slotted

1шт.

55

A40520

BOLT

BOLT - pivot, shift lever

1шт.

56

A41984

WASHER

- pivot bolt

2шт.

57

425-145

JAM NUT,Jam, 5/16"-18, G5

Pivot bolt Jam, 5/16"-18, G5

1шт.

58

A25410

BOOT

- solenoid (used w/D32189 & D39988 starters)

1шт.

58

A42126

GASKET

BOOT - solenoid (used w/D45731 starter)

1шт.

59

A40226

FRAME

HOUSING ASSY. - drive end, Includes: Ref. 60 - 62

1шт.

60

A25387

BEARING

BUSHING - drive hsg.

1шт.

61

R15023

WICK

- oiler

1шт.

62

221-1041

PLUG

- pipe, oil wick hole

1шт.

63

NSS

NOT SOLD SEPARAT

PIN - locating, drive hsg.

1шт.

64

A25552

BOLT

BOLT - thru

2шт.

65

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- solenoid

2шт.

66

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

67

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Starter Hex, 3/8"-16 x 2", G5

3шт.

68

92-6

LOCK WASHER,3/8"

3шт.
