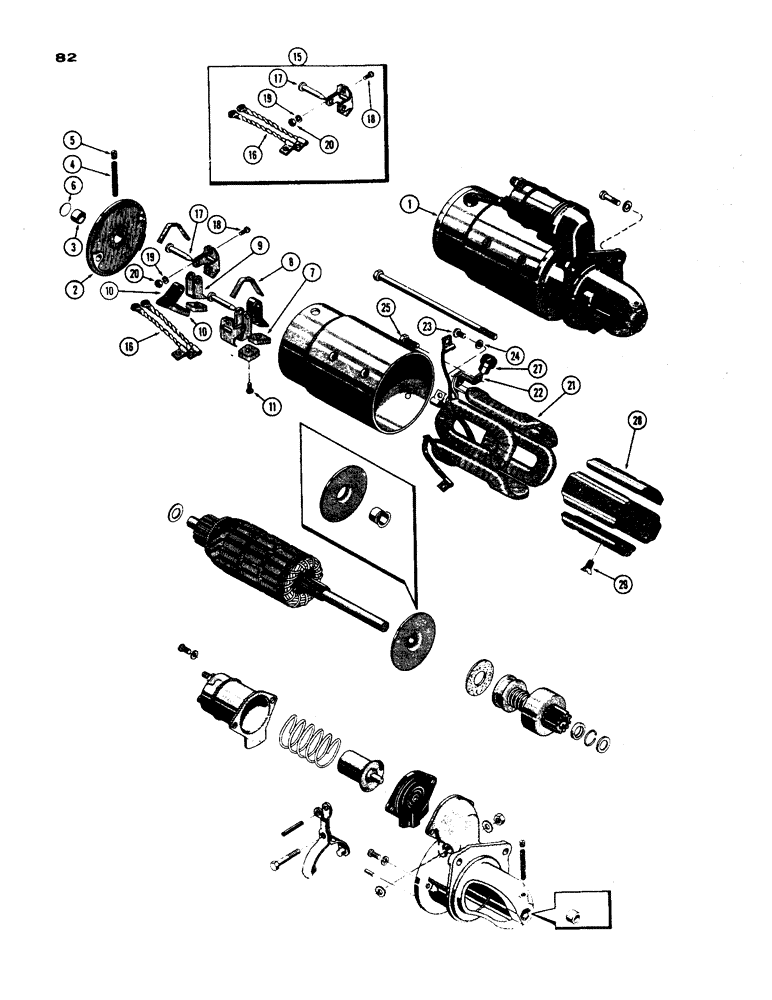

Запчасти Case 450 (082) - D45731, D32189 & D39988 STARTERS, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

D45731

X

STARTER ASSY. - (Delco-Remy #1108688), Includes: Ref. 2 - 29

1шт.

1

D39988

X

STARTER ASSY. - (Delco-Remy #1107598) (Order D45731), Includes: Ref. 2 - 29

1шт.

1

D32189

STARTER ASSY. - (Delco-Remy #1107574) (Order D45731), Includes: Ref. 2 - 29

1шт.

2

A25304

FRAME

ASSY. - commutator end, Includes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

- armature

1шт.

4

A41979

WICK

- oiler

1шт.

5

221-1041

PLUG

- pipe, oil wick hole

1шт.

6

R15021

PLUG

- expansion, comm. end

1шт.

7

A25356

BRUSH, COMMUTATOR

BRUSH

4шт.

8

A25359

SPRING

- brush tension

2шт.

9

A40217

HOLDER

- brush, grounded

2шт.

10

R15027

HOLDER

- brush, insulated

2шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

15

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 16 - 20

2шт.

16

A42494

ELECTRICAL WIRE

LEAD - brush ground

1шт.

17

A41983

PIN

- brush holder

1шт.

18

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- support

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Support screw #10

2шт.

20

NSS

NOT SOLD SEPARAT

NUT - support screw

2шт.

21

A25548

COIL

ASSY. - field

1шт.

22

A40225

CONNECTOR, ELEC

CONNECTOR -, Serial Range: field-solenoid

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

-, Serial Range: connector-field

1шт.

24

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Field connector screw Ext-Int Tooth, #10

1шт.

25

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- connector to solenoid

1шт.

27

A41980

GROMMET

- connector, insulating (in frame)

1шт.

28

A25391

SHOE

- pole

4шт.

29

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes

8шт.
