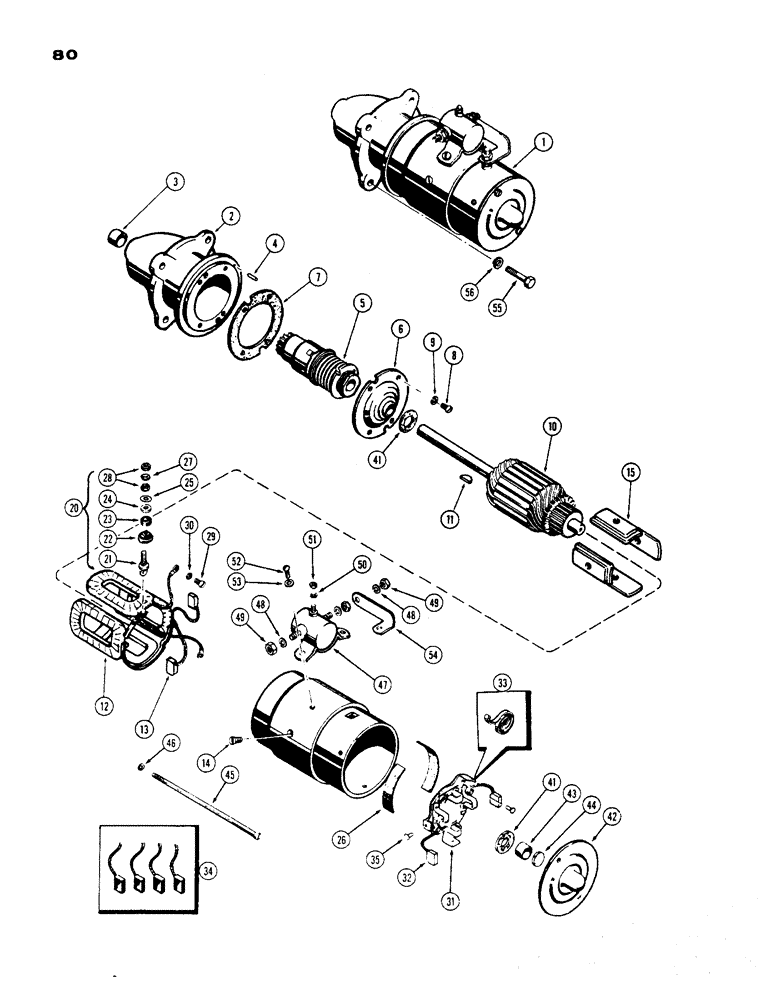

Запчасти Case 450 (080) - A36584 STARTER, (188) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

1

A36584

STARTING MOTOR

STARTER ASSY. (ELTRA #MDU-7104A), Includes: Ref. 2 - 54

1шт.

1

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

2

A25610

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 3 and 4

1шт.

3

A25611

BEARING

BEARING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - locating, drive end housing

1шт.

5

A40272

DRIVE

DRIVE ASSY. - bendix

1шт.

6

G45478

PLATE

BEARING ASSY. - intermediate

1шт.

7

G46910

GASKET

GASKET - intermediate bearing

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - inter. brg., #10-32 x 7/16" rd. hd.

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A25607

ARMATURE

SPARE PART ARMATURE

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, #6, 5/32" x 5/8"

1шт.

12

A25604

PACKAGE

COIL ASSY. - field, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - (Order ref. 34)

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

20

A40278

KIT

TERMINAL KIT - field, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING - insulating (in housing)

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - terminal stud (metal)

1шт.

26

NSS

NOT SOLD SEPARAT

INSULATION - field coil

2шт.

27

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

28

192-102

WASHER

NUT - 5/16" N.C. hex.

2шт.

29

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - terminal stud, #8-32 x 5/16" rd. hd.

1шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

1шт.

31

A25612

PLATE

PLATE ASSY. - brush carrier, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

BRUSH - (Order 34)

2шт.

33

A40275

SPRING

SPRING SET - brush (Set of 4)

1шт.

34

A25603

BRUSH SET

BRUSH SET - (Set of 4)

1шт.

35

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

A40277

KIT

THRUST WASHER KIT - (Not illust.) (use thrust washers as required)

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - inter. brg. & comm. end, 1/32"

4шт.

41

NSS

NOT SOLD SEPARAT

WASHER - comm. end, 3/64"

2шт.

41

NSS

NOT SOLD SEPARAT

WASHER - comm. end, 5/64"

2шт.

42

A40274

HEAD

HEAD ASSY. - commutator end

1шт.

43

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

44

NSS

NOT SOLD SEPARAT

FELT - oiler

1шт.

45

A25601

SCREW

BOLT - thru

2шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

47

A40795

SOLENOID

SOLENOID ASSY., Includes: Ref. 48 - 51

1шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

49

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

3шт.

50

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

51

129-37

NUT,#10-32

NUT, #10-32

1шт.

52

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW - solenoid, #10-32 x 1/4" rd. hd.

2шт.

53

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

54

NSS

NOT SOLD SEPARAT

CONNECTOR -, Serial Range: solenoid-field

1шт.

55

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

56

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.
