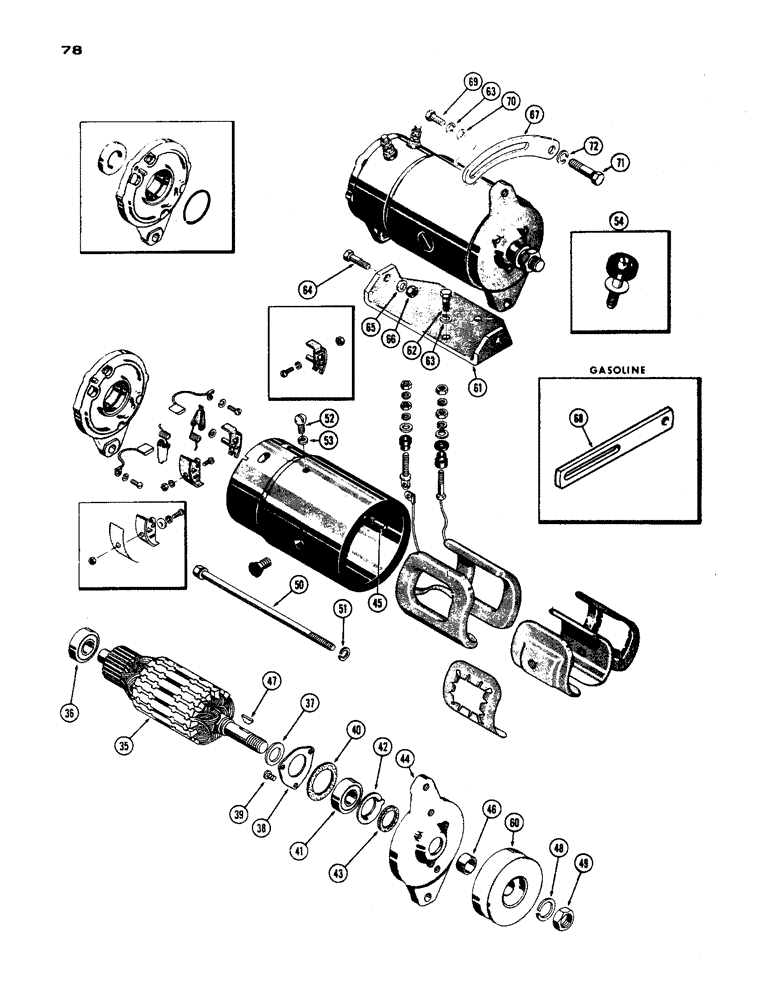

Запчасти Case 450 (078) - D34009 GENERATOR, (188) GAS & DIESEL (06) - ELECTRICAL SYSTEMS

D34009

GENERATOR

ASSY. - (cont. from figure 76), Includes: Ref. 35 - 54

1шт.

35

A25545

ARMATURE

1шт.

36

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, armature, comm. end

1шт.

37

R15100

WASHER - spacer, drive end

1шт.

38

R15101

PLATE

- bearing retainer

1шт.

39

A41959

SCREW,#10 - 32 x 3/8"

- brg. plate ret.

3шт.

40

R16170

GASKET

- brg. ret. plate

1шт.

41

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

42

R16169

LARGE PLATE

PLATE - felt washer ret.

1шт.

43

R16168

WASHER

- drive end brg. seal (felt)

1шт.

44

A25444

FRAME - drive end

1шт.

45

NSS

NOT SOLD SEPARAT

PIN - locating, drive end

1шт.

46

R15099

COLLAR, spacer, pulley

1шт.

47

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

48

R16171

SPRING WASHER

- lock, pulley

1шт.

49

A25546

NUT

- pulley retaining

1шт.

50

R15106

BOLT

- thru

2шт.

51

92-5

LOCK WASHER,5/16"

thru bolt 5/16"

1шт.

52

174-217

SCREW - ground

1шт.

53

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

54

A40702

STUD

TERMINAL KIT - field stud

1шт.

60

A25454

PULLEY

- generator

1шт.

61

D34012

BRACKET

- mounting

1шт.

62

113-125

X

BOLT - bracket (5/16 x 3/4" N.C. Hex)

2шт.

63

92-5

LOCK WASHER,5/16"

3шт.

64

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

65

95-6

WASHER,3/8"

- ( lock) 3/8"

2шт.

66

131-352

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.C. hex.)

2шт.

67

A37017

STRAP

- gen. adj. (diesel)

1шт.

68

G11344

STRAP - gen. adj. (gas)

1шт.

69

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Adj. strap Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

70

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

1шт.

71

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Adj. strap Hex, 3/8"-16 x 2", G5

1шт.

72

92-6

LOCK WASHER,3/8"

1шт.
