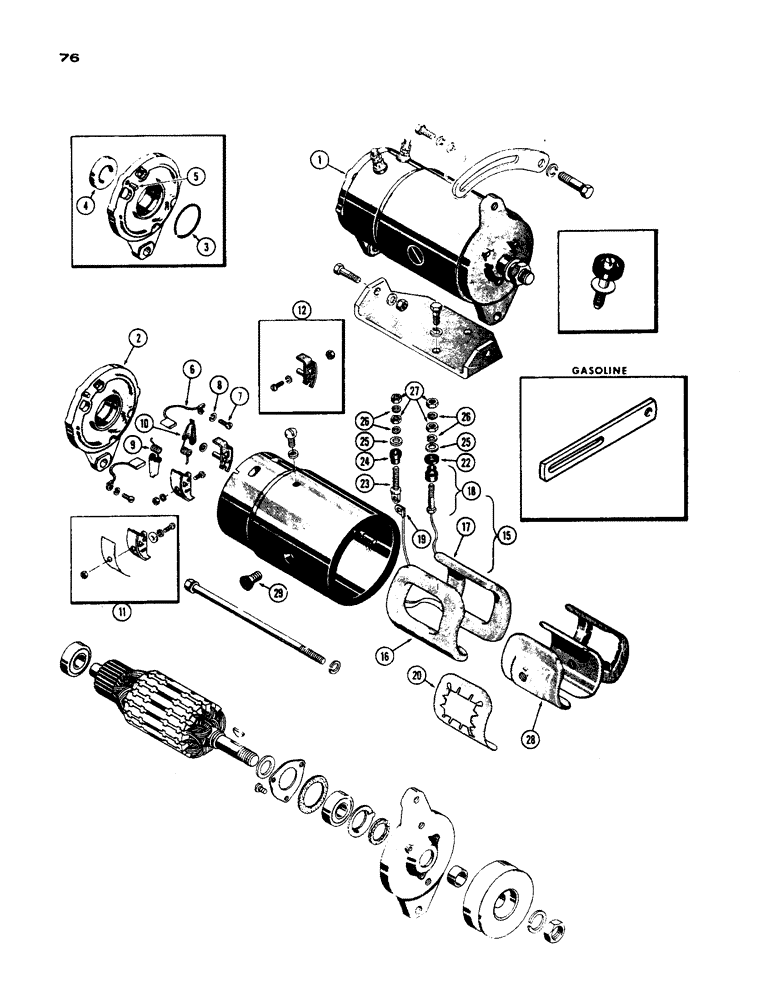

Запчасти Case 450 (076) - D34009 GENERATOR, (188) GAS & DIESEL (06) - ELECTRICAL SYSTEMS

1

D34009

GENERATOR

GENERATOR ASSY. - (Delco-Remy #1102339), Includes: Ref. 2 - 29

1шт.

103822A1R

REMAN-GENERATOR

Remanufactured GENERATOR - NA Only

1шт.

103822A1C

CORE-GENERATOR

Return number - For N.A. only

1шт.

2

A25416

SPARE PART FRAME ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

R15087

SPARE PART CLAMP - bearing

1шт.

4

A42032

SPARE PART PLUG - oil & bearing well

1шт.

5

R15095

SPARE PART PIN - locating, end frame

1шт.

6

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH (Set of 2)

1шт.

7

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead attaching

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

2шт.

9

A25423

SPRING

SPRING - brush tension

2шт.

10

R15090

ARM

ARM - brush

2шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY. - brush, insulated

1шт.

12

A40703

NOZZLE HOLDER

HOLDER ASSY. - brush, ground

1шт.

15

A40698

COIL

COIL ASSY. - field, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

FIELD - right hand

1шт.

17

NSS

NOT SOLD SEPARAT

FIELD - left hand

1шт.

18

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 54, figure 78)

1шт.

19

NSS

NOT SOLD SEPARAT

CLIP - armature terminal

1шт.

20

A25447

ISOLATOR

INSULATION - field coil

2шт.

22

NSS

NOT SOLD SEPARAT

WASHER - field term., insulating (Order ref. 54, figure 78)

1шт.

23

A40701

STUD

STUD - armature terminal

1шт.

24

R16147

BUSHING

BUSHING - armature term., insulating

1шт.

25

A41927

WASHER

WASHER - terminal studs, flat

2шт.

26

192-17

LOCK WASHER,#12

WASHER - lock, , Terminal stud #12

4шт.

27

129-18

NUT,#12-24

NUT - terminal studs

4шт.

28

A40736

SPARE PART SHOE - pole

2шт.

29

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes

2шт.
