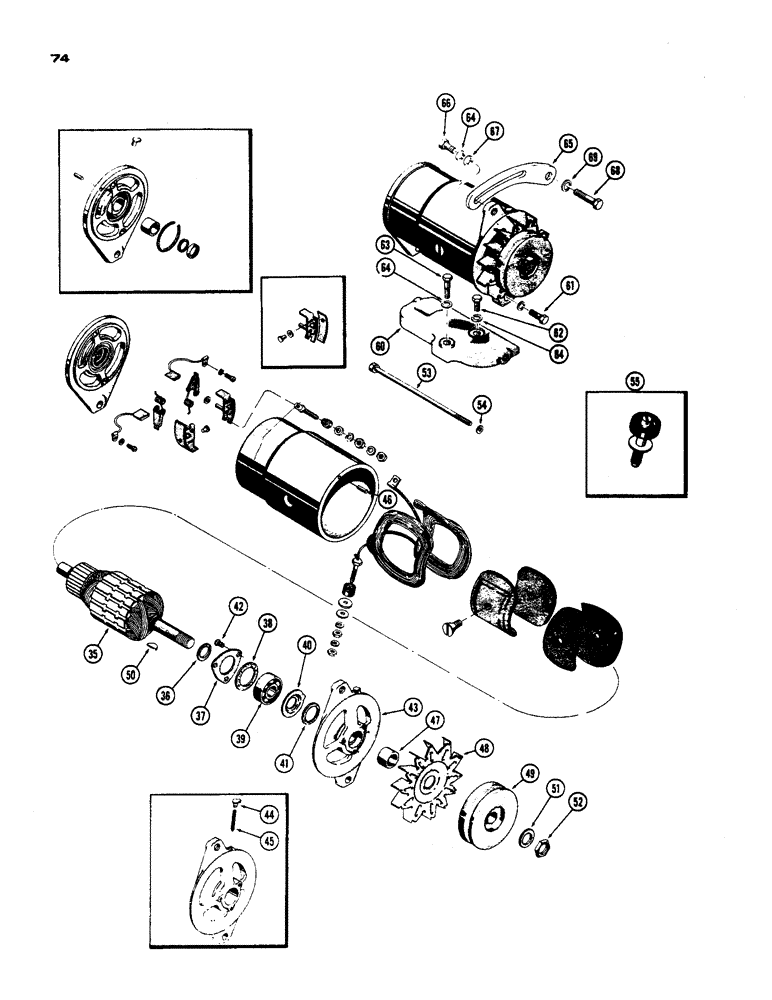

Запчасти Case 450 (074) - D27034 GENERATOR, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

D27034

GENERATOR

GENERATOR ASSY. (cont. from figure 72), Includes: Ref. 35 - 55

1шт.

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

87297306

REMAN-GENERATOR

Remanufactured Generator

1шт.

87297307

CORE-GENERATOR

Return No, Generator

1шт.

35

A25428

ARM ASSY.

ARMATURE

1шт.

36

R15100

SPARE PART WASHER - thrust, drive end

1шт.

37

R15101

PLATE

PLATE - bearing retaining

1шт.

38

R16170

GASKET

GASKET - brg. ret. plate

1шт.

39

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

40

R16169

LARGE PLATE

PLATE, LARGE PLATE - felt seal & brg. ret.

1шт.

41

R16168

WASHER

SEAL - felt, drive end

1шт.

42

A41959

SCREW,#10 - 32 x 3/8"

SCREW - brg. plate ret.

3шт.

43

A25442

HOUSING

FRAME ASSY. - drive end, Includes: Ref. 44 and 45

1шт.

44

219-202

OILER

OILER

1шт.

45

R16165

SPARE PART WICK - oiler

1шт.

46

NSS

NOT SOLD SEPARAT

PIN - locating, drive end

1шт.

47

R16166

BUSHING

COLLAR - spacer, drive end

1шт.

48

A25449

FAN

FAN - ventilating

1шт.

49

A25454

PULLEY

PULLEY - generator drive

1шт.

50

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

51

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

52

A25546

NUT

NUT - pulley retaining

1шт.

53

A40129

BOLT

BOLT - thru

2шт.

54

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

55

A40702

STUD

TERMINAL KIT

1шт.

60

A38746

BRACKET

BRACKET - generator mounting

1шт.

61

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, , Bracket Hex, 5/16"-18 x 1 1/8", G5

2шт.

62

113-127

X

BOLT - bracket (5/16 x 1-1/2" N.C. hex.)

1шт.

63

113-126

BOLT

BOLT - bracket (5/16 x 1" N.C. hex.)

1шт.

64

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

65

A37017

STRAP

STRAP - generator adjusting

1шт.

66

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, , Strap Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

67

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - (3/8 x 7/8 x 5/64")

1шт.

68

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Strap Hex, 3/8"-16 x 2", G5

1шт.

69

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.
