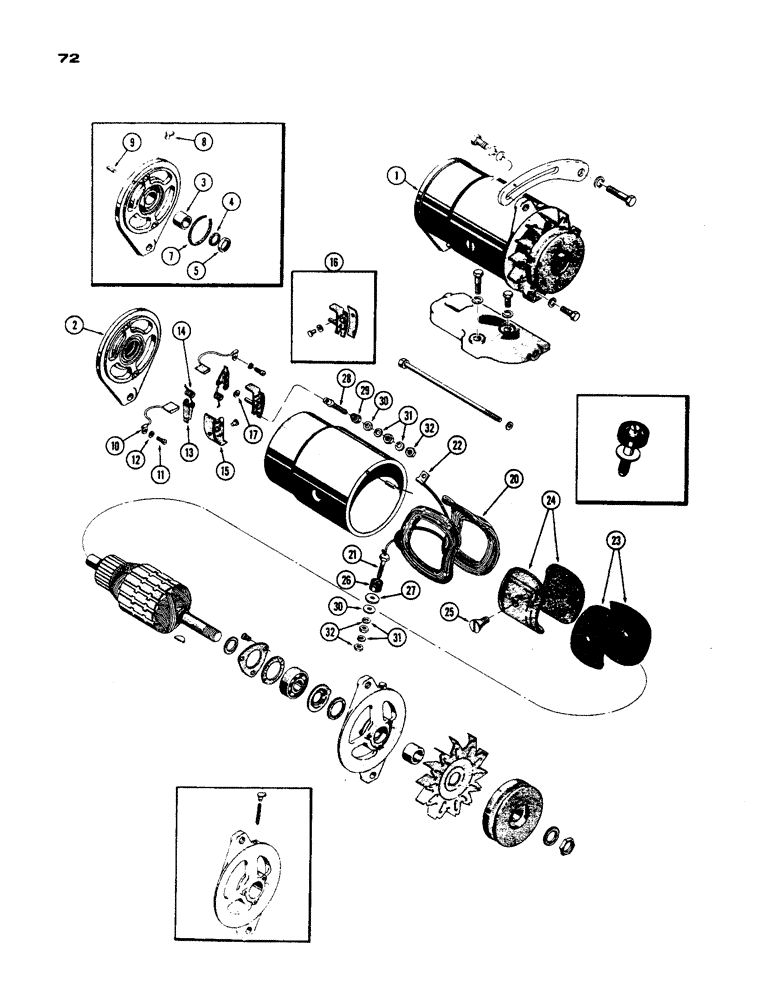

Запчасти Case 450 (072) - D27034 GENERATOR, (188) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

GENERATOR ASSY. - (Delco-Remy #1100404), Includes: Ref. 2 - 32

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

1

87297306

REMAN-GENERATOR

Remanufactured Generator

1шт.

1

87297307

CORE-GENERATOR

Return Number, Generator

1шт.

1

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

1

104018A1C

CORE-GENERATOR

Return Number

1шт.

2

A40679

HOUSING

FRAME ASSY. - commutator end, Includes: Ref. 3 - 9

1шт.

3

A25459

BUSHING

BUSHING - armature shaft

1шт.

4

R16157

WASHER

WASHER - felt

1шт.

5

R16156

CUP

CUP - felt washer ret.

1шт.

7

A41417

WICK

WICK - oil

1шт.

8

219-203

OILER

OILER

1шт.

9

R15095

SPARE PART PIN - locating, comm. end frame

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH (Set of 2)

1шт.

11

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead attaching

2шт.

12

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

2шт.

13

R15090

ARM

ARM - brush

2шт.

14

R16161

VALVE SPRING

SPRING - brush tension

2шт.

15

A40703

NOZZLE HOLDER

HOLDER ASSY. - brush, ground

1шт.

16

A40704

NOZZLE HOLDER

HOLDER ASSY. - brush, insulated

1шт.

17

A43328

SPARE PART SPACER - brush arm

2шт.

20

R16149

COIL ASSY.

COIL ASSY. - field, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 55, figure 74)

1шт.

22

NSS

NOT SOLD SEPARAT

CLIP - armature terminal

1шт.

23

R16152

INSULATOR

INSULATION - coil

1шт.

24

A40700

SPARE PART SHOE - pole

2шт.

25

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes, 3/8 x 5/8" N.F. flat hd.

2шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field term. (Order ref. 55, figure 74)

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulation, field term. (Order ref. 55 figure 74)

1шт.

28

A40701

STUD

STUD - armature terminal

1шт.

29

R16147

BUSHING

BUSHING - insulation, arm. term.

1шт.

30

A41927

WASHER

WASHER - terminal studs, plain

2шт.

31

192-17

LOCK WASHER,#12

WASHER - lock, , Terminal stud #12

4шт.

32

129-18

NUT,#12-24

NUT - terminal studs

4шт.
