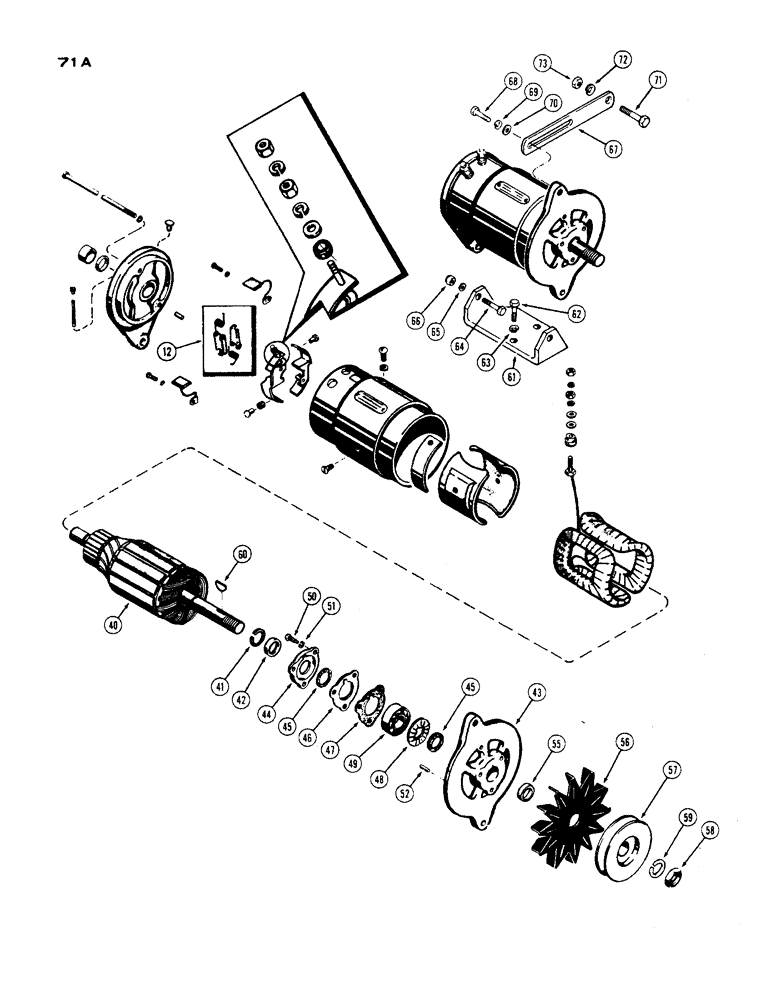

Запчасти Case 450 (071A) - F21239 GENERATOR, (188) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

F21239

GENERATOR ASSY. - (Continued from figure 70), Includes: Ref. 40 - 52

1шт.

40

A25886

ARMATURE

ASSY., Includes: Ref. 41

1шт.

41

NSS

NOT SOLD SEPARAT

RING - bearing stop

1шт.

42

NSS

NOT SOLD SEPARAT

SPACER - retainer & bearing

1шт.

43

A25616

HEAD ASSY. - drive end, Includes: Ref. 44 - 52

1шт.

44

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

45

A25617

WASHER - drive end (felt)

1шт.

46

NSS

NOT SOLD SEPARAT

PLATE - bearing retainer

1шт.

47

A25634

GASKET -, Serial Range: plate-head

1шт.

48

NSS

NOT SOLD SEPARAT

RETAINER - outer bearing

1шт.

49

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

50

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

- brg. ret., #10-32 x 1/2" rd. hd.

3шт.

51

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

52

NSS

NOT SOLD SEPARAT

PIN - locating, drive end

1шт.

55

14504

SPACER - fan & pulley

1шт.

56

14503

FAN - ventilating

1шт.

57

G4521

PULLEY

- drive, generator

1шт.

58

A25619

NUT - pulley retaining

1шт.

59

92-11

WASHER - lock, pulley nut

1шт.

60

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

61

D26162

BRACKET - generator mounting

1шт.

62

113-125

X

BOLT - 5/16 x 3/4" N.C. hex.

2шт.

63

92-5

LOCK WASHER,5/16"

2шт.

64

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

2шт.

65

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

66

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C. hex.

2шт.

67

G11344

BRACKET - generator adjusting

1шт.

68

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

69

92-5

LOCK WASHER,5/16"

1шт.

70

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

71

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

- 3/8 x 1-1/4" N.C. hex.

1шт.

72

92-6

LOCK WASHER,3/8"

1шт.

73

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.
