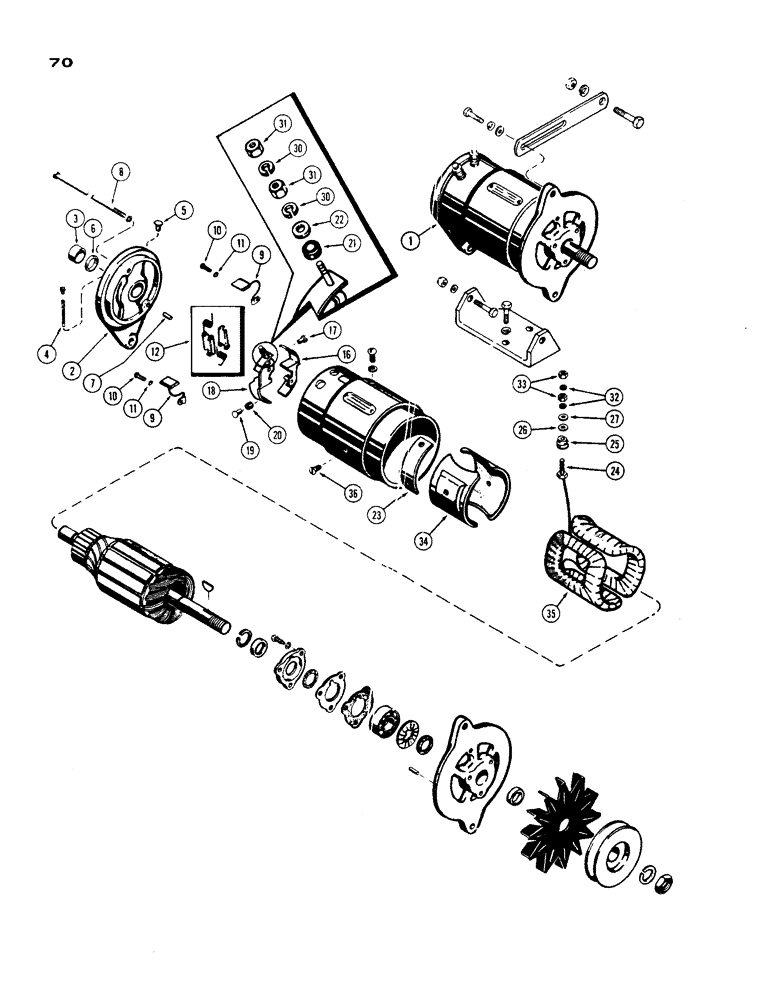

Запчасти Case 450 (070) - F21239 GENERATOR, (188) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

1

F21239

GENERATOR ASSY. - (Prestolite #GJT-7404-S), Includes: Ref. 2 - 36

1шт.

2

A25620

HEAD ASSY. - commutator end, Includes: Ref. 3 - 7

1шт.

3

A25623

BUSHING

BEARING - armature shaft (bronze)

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

5

NSS

NOT SOLD SEPARAT

OILER - commutator end

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - oil wick

1шт.

7

NSS

NOT SOLD SEPARAT

DOWEL - locating, commutator head

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT - thru, generator

1шт.

9

F83422

BRUSH ASSY.

BRUSH SET - armature (Set of 2)

1шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- brush lead, #8-32 x 1/4" rd. hd.

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - med. sect. lock, #8

2шт.

12

A40276

SPRING

ARM & SPRING KIT - brush (Set of 2 arms & 2 springs)

1шт.

A40279

STUD

TERMINAL & HOLDER KIT - (not illust.), Includes: Ref. 16 - 27

1шт.

16

NSS

NOT SOLD SEPARAT

HOLDER - brush, grounded

1шт.

17

NSS

NOT SOLD SEPARAT

RIVET - grounded brush holder

2шт.

18

NSS

NOT SOLD SEPARAT

HOLDER - brush, insulated

1шт.

19

NSS

NOT SOLD SEPARAT

RIVET - insulated brush holder

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - insulated holder rivet

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - insulating, armature terminal

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - armature terminal (metal)

1шт.

23

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field terminal

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - field terminal (metal)

1шт.

30

192-10

WASHER - lock, 1/4"

2шт.

31

129-121

NUT,1/4"-28, G5

2шт.

32

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

33

129-37

NUT,#10-32

2шт.

34

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

35

A40273

COIL ASSY. - field, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.
