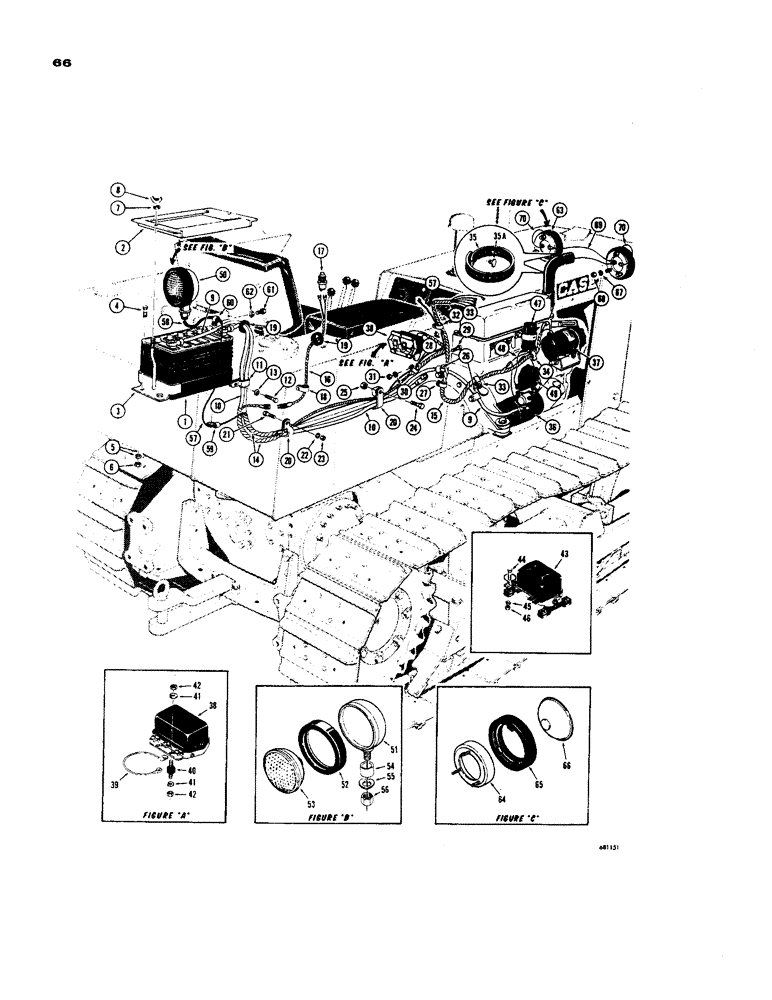

Запчасти Case 450 (066) - ELECTRICAL SYSTEM - GAS (06) - ELECTRICAL SYSTEMS

1

D32194

X

BATTERY - 12 volt (Prestolite no. 12HA70)

1шт.

2

D32227

SPARE PART BRACKET - battery hold down

1шт.

3

D27096

BRACKET - battery mounting

2шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

4шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

2шт.

8

129-410

WING NUT,3/8"-16

NUT - wing, battery hold down

2шт.

9

D34985

CABLE PULLING GRIP

CABLE - battery (Positive)

1шт.

10

D34984

CABLE

CABLE - battery (Negative)

1шт.

11

D34980

CLAMP

CLAMP - battery cables

1шт.

12

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2"

1шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

14

D43922

GUARD ASSY.

WRAP - battery cable and wiring harness

2шт.

D34987

X

MAIN WIRING HARNESS - (When stock is exhausted, use 1 - D39734 and 1 - D39130) Not illustrated

1шт.

15

D39734

WIRE HARNESS

MAIN WIRING HARNESS

1шт.

16

D39130

ELECTRICAL WIRE

WIRE WIRE ASSEMBLY - starter switch (Used with D39734 Main Wiring Harness)

1шт.

17

D34924

SWITCH

SWITCH - starter

1шт.

18

49832

CLAMP

CLAMP - starter switch wire

1шт.

19

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - rubber

2шт.

20

51200320

CLAMP

CLAMP - main wiring harness (At frame)

2шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

22

92-8

LOCK WASHER,1/2"

LOCK WASHER, , med. sect. 1/2"

1шт.

23

25-108

NUT,1/2"-13, G5

NUT - hex. (1/2" - 13 NC)

1шт.

24

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

25

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC)

1шт.

26

49838

CLAMP

CLAMP - positive battery cable (At flywheel housing)

2шт.

27

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLAMP - main wiring harness (At cowl) R.H.

1шт.

28

49838

CLAMP

CLAMP - main wiring harness (At cowl) L.H., if used

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

1шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLAMP - main wiring harness (At air cleaner mounting bracket) Loader Models only

1шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLAMP - main wiring harness

2шт.

34

49845

CLAMP

CLAMP - main wiring harness (At engine governor control stop)

1шт.

35

D41076

STRAP

STRAP - retainer, headlight wire

2шт.

35a

D41075

STUD

STUD - strap

2шт.

36

A36584

STARTING MOTOR

MOTOR - starting, complete (Eltra no. 104A) Mounting parts and parts list figure 80

1шт.

36

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

36

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

37

F21239

SPARE PART GENERATOR - complete (Prestolite no. GJ74045) Mounting parts and parts list figure 70 and 71A

1шт.

D34009

GENERATOR

GENERATOR - enclosed, Delco no. 1102339 (Mounting parts and parts list figure 76 and 78)

1шт.

38

A36194

REGULATOR

REGULATOR - voltage (F21239 generator only)

1шт.

D35018

SPARE PART KIT - mounting, regulator (A36194 regulator only), Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

LEAD ASSEMBLY

1шт.

40

NSS

NOT SOLD SEPARAT

STUD - mounting

3шт.

41

NSS

NOT SOLD SEPARAT

WASHER - med. sect. lock

6шт.

42

NSS

NOT SOLD SEPARAT

NUT - hex.

6шт.

43

A23193

REGULATOR

REGULATOR - voltage (D34009 generator only)

1шт.

44

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - 5/16"-18 NC x 1-1/2"

4шт.

45

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

4шт.

46

9635082

NUT,5/16" - 18, Gr 5

NUT - hex. (5/16" - 18 NC)

4шт.

47

REF

INSTRUCTION

COIL - ignition (See figure 86)

1шт.

48

G13085

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: coil-distributor

1шт.

49

REF

INSTRUCTION

DISTRIBUTOR - ignition (Parts list figure 88)

1шт.

50

D34934

LAMP

LIGHT - tail, complete, Includes: Ref. 51 - 56

1шт.

51

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

52

A25213

RETAINER

RETAINER - lamp, rubber

1шт.

53

A24572

LAMP

LAMP - sealed unit

1шт.

54

D37048

BUSHING

BUSHING - pivot

1шт.

55

D37049

WASHER

WASHER - special

1шт.

56

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock, hex. (1/2" - 20 NF)

1шт.

57

D34935

SPARE PART WIRE - taillight

1шт.

58

D34933

LOOM

LOOM - wire cover

1шт.

59

49832

CLAMP

CLAMP - taillight wire, bottom

1шт.

60

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLAMP - taillight wire, top

1шт.

61

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8' - 24 NF x 1/2"

1шт.

62

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

63

D30243

LAMP

LIGHT - head, complete, Includes: Ref. 64 - 66

1шт.

64

NSS

NOT SOLD SEPARAT

FRAME - lamp retaining

1шт.

65

D31441

RETAINER

RETAINER - rubber (Guide Lamp) See A25213

1шт.

A25213

RETAINER

RETAINER - rubber (Hobbs) See D31441

1шт.

66

D33182

LAMP

LAMP - sealed unit

1шт.

67

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

68

129-17

NUT,Hex, #10 - 24

NUT - hex. (No. 10-24 NC) Zinc plated

6шт.

69

A27194

SPARE PART WIRE - jumper, headlight (When stock is exhausted, use D22271 wire)

1шт.

D22271

ELECTRICAL WIRE

WIRE WIRE - jumper, headlight

1шт.

70

A11778

SPARE PART WIRE - ground, headlight (When stock is exausted, use A11768 wire)

2шт.

A11768

ELECTRICAL WIRE

WIRE WIRE - ground, headlight

2шт.
