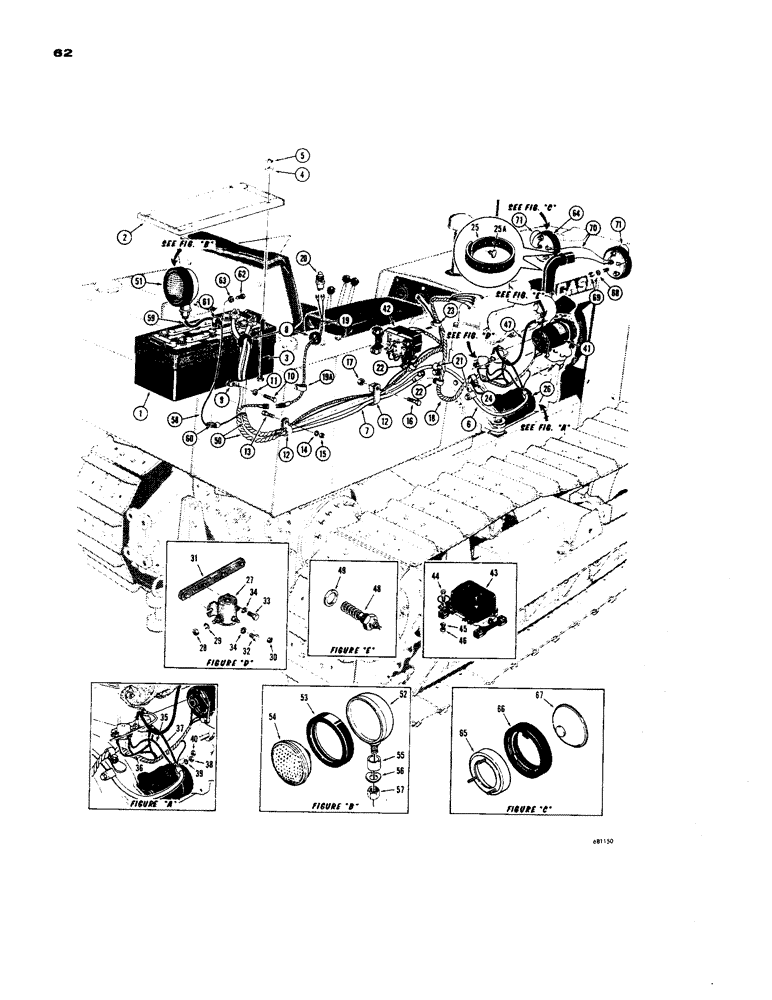

Запчасти Case 450 (062) - ELECTRICAL SYSTEM - DIESEL (06) - ELECTRICAL SYSTEMS

1

NLS

NO LONGER SERVICED

BATTERY - 12 volt, Electric Autolite (Use D15583 kit for service)

1шт.

1

D44178

DRY BATTERY

- 12 volt, Prestolite (In D15583 kit)

1шт.

2

D34981

BRACKET - D34986 battery hold down

1шт.

2

D49944

BRACKET - D44178 battery hold down (In D15583 kit)

1шт.

3

R21737

BOLT

ROD - battery hold down

4шт.

4

195-21

WASHER,5/16"

- flat () 5/16"

4шт.

5

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

4шт.

6

D34985

CABLE PULLING GRIP

CABLE - battery, positive (Hot)

1шт.

7

D34984

CABLE

- battery, negative (Ground)

1шт.

8

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

9

D34980

CLAMP

- battery cable, rear

1шт.

10

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS 3/8" - 24 NF x 1/2"

1шт.

11

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

12

51200320

CLAMP

- main wiring harness, at frame

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

14

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

17

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, hex. (3/8" - 16 NC)

1шт.

D34987

X

MAIN WIRING HARNESS - when stock is exhausted, use 1 - D39734 and 1 - D39130 (Not illustrated)

1шт.

18

D39734

WIRE HARNESS

MAIN WIRING HARNESS

1шт.

19

D39130

ELECTRICAL WIRE

WIRE ASSEMBLY - starter switch (Use with D39734 only)

1шт.

19a

49832

CLAMP

- wire

1шт.

20

D34924

SWITCH

- starter

1шт.

21

49838

CLAMP

- battery cable at flywheel housing

2шт.

22

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- main wiring harness

2шт.

23

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- main wiring harness (At air cleaner mounting bracket) Used with Loader Models only

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- main wiring harness, at timing hole cover

1шт.

25

D41076

STRAP

- retainer, headlight wire

2шт.

25a

D41075

STUD

- strap

2шт.

26

D32189

MOTOR - starting, Delco no. 1107574 (Used before tractor S/N 3031791) When stock is exhausted, use D39988 starter (Parts list Figure 84)

1шт.

D39988

X

MOTOR - starting, Delco no. 1107598 (Use with and after tractor S/N 3031791) Parts list Figure 82 (Use D45731 motor for service)

1шт.

D45731

X

MOTOR - starting (Parts list Figure 82 and 84)

1шт.

27

A21481

SOLENOID

- 1 - used with D34924 switch and 1 - used with manifold heater (When stock is exhausted, use A57069 solenoid)

1-2шт.

A57069

SOLENOID

- heater and switch

1-2шт.

28

86637933

JAM NUT,5/16" - 24, Gr 5

2-4шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2-4шт.

30

193-1000

NUT,Keps, w/LW,#10-32

- keps (No. 10) Zinc plated

2шт.

31

D35438

BRACKET - mounting, solenoid (If used)

1шт.

32

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

34

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - med. sect. lock (1/4") Zinc plated

2-4шт.

35

D35439

WIRE - jumper, used with D34924 starter switch only

1шт.

36

D35437

WIRE - jumper, used with D34924 starter switch only

1шт.

37

D51990

CABLE PULLING GRIP

CABLE - starter to heater solenoid

1шт.

38

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

40

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps (No. 8 - 32 NC) Zinc plated

1шт.

41

D27034

GENERATOR

- complete, Delco no. 1100404 (Mounting parts list figure 72 and 74)

1шт.

D34009

GENERATOR

- enclosed, Delco no. 1102339 (Mounting parts and parts list figure 76 and 78)

1шт.

42

A35233

REGULATOR

- voltage (D27034 generator)

1шт.

43

A23193

REGULATOR

- voltage (D34009 generator)

1шт.

44

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

4шт.

45

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

47

A21483

CABLE

- heater solenoid to heater plug

1шт.

48

A24396

X

PLUG - heater, manifold, Includes: Ref. 49

1шт.

49

A20916

MANIFOLD GASKET

GASKET - heater plug

1шт.

50

D43922

GUARD ASSY.

WRAP - battery cable

2шт.

51

D34934

LAMP

LIGHT - tail, complete, Includes: Ref. 52 - 57

1шт.

52

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

53

A25213

RETAINER

- lamp, rubber

1шт.

54

A24572

LAMP

- sealed unit

1шт.

55

D37048

BUSHING

- pivot

1шт.

56

D37049

WASHER

- special

1шт.

57

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock, hex. (1/2" - 20 NF)

1шт.

58

D34935

WIRE - taillight

1шт.

59

D34933

LOOM

- wire cover

1шт.

60

49832

CLAMP

- taillight wire, bottom A11768 wire

2шт.

61

80049853

YOKE

- taillight wire, top

1шт.

62

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS - 3/8" - 24 NF x 1/2"

1шт.

63

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

64

D30243

LAMP

LIGHT - head, complete, Includes: Ref. 65 - 67

2шт.

65

NSS

NOT SOLD SEPARAT

FRAME - lamp retaining

1шт.

66

D31441

RETAINER

- rubber (Guide Lamp) See A25213

1шт.

A25213

RETAINER

- rubber (Hobbs) See D31441

1шт.

67

D33182

LAMP

- seled unit

1шт.

68

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

69

129-17

NUT,Hex, #10 - 24

NUT - hex. (No.10-24 NC) Zinc plated

6шт.

70

A27194

WIRE - jumper, headlight (When stock is exhausted, use A22271 wire)

1шт.

D22271

ELECTRICAL WIRE

WIRE - jumper, headlight

1шт.

71

A11778

WIRE - ground, headlight (When stock is exhausted, use A11768 wire for service)

2шт.

A11768

ELECTRICAL WIRE

WIRE - ground, headlight

2шт.
