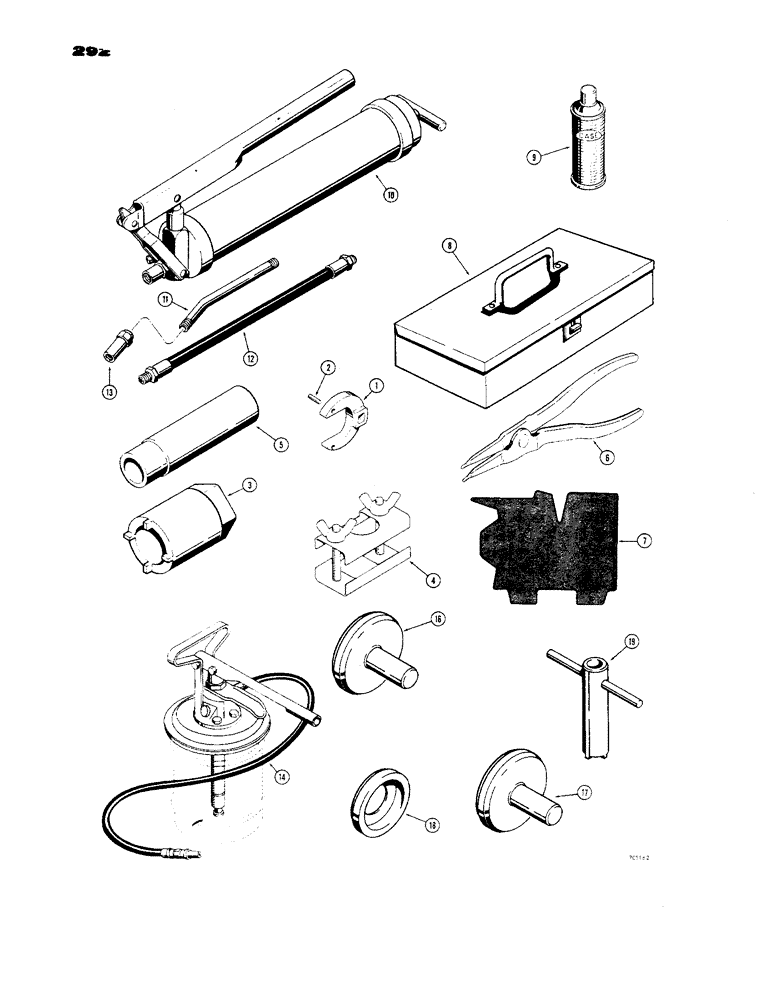

Запчасти Case 450 (292) - TOOLS (05) - UPPERSTRUCTURE CHASSIS

D44110

OPEN END WRENCH

WRENCH SET - spanner (For removing and installing packing glands in threaded gland type hydraulic cylinders), Includes: Ref. 1 and 2

1шт.

1

D44111

OPEN END WRENCH

WRENCH - spanner, 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" dia. piston rods

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-1/2" dia. piston rod

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, 3" I.D. cylinder with 1-3/4" dia. piston rod

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, 3-1/2" I.D. cylinder with 1-3/4" or 2" dia. piston rod

1шт.

D44115

OPEN END WRENCH

WRENCH - spanner, 4" I.D. cylinder with 2" or 2-1/4" dia. piston rod.

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, 4-1/2" or 5" I.D. cylinders with 2-1/4" dia. piston rod.

1шт.

2

D30107

PIN

- spanner wrench, 2-1/2" through 4" I.D. cylinders

3шт.

D44118

SPARE PART

PIN - spanner wrench, D44116 wrench only

3шт.

D45700

NO LONGER SERVICED

TOOL SET - loader and dozer control valves, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

WRENCH - spanner, seal retainer

1шт.

4

NSS

NOT SOLD SEPARAT

COMPRESSOR - spool spring

1шт.

5

NSS

NOT SOLD SEPARAT

TOOL - snap ring installing

1шт.

6

D32049

TOOL

PLIERS - retaining, snap ring

1шт.

7

R15812

TOOL

GAUGE - wear, track components (Used before tractor Sn. 3036032)

1шт.

7

D44717

NO LONGER SERVICED

GAUGE - wear, track components (Used on tractor Sn. 3036032 and after)

1шт.

8

73200

1шт.

TOOL KIT - optional, includes on each: 6" slip joint plier, 1-5/16" x 4" screwdriver, 1-5/16" x 6" screwdriver, 1-1/2" ball peen hammer, set of 7 double open end wrenches (3/8" to 1-1/8") 12" adjustable wrench, taper punch, 1/2" cut chisel, 18" jimmy bar, set of Allen style wrenches (3/8" to 1") Socket drive adapter (3/8" female x 1/2" male) 8-1/4" T-flex handle (3/8" drive) 17" sliding T-handle (3/4" drive) Set of 12 point 3/4" drive sockets (1-1/16" to 1-7/8") And metal box

1шт.

9

B17072

START SPRAY FLUID

ETHER CAN - cold starting aid

1шт.

10

219-101

GUN, GREASE

GREASE GUN - complete

1шт.

11

NSS

NOT SOLD SEPARAT

EXTENSION - nozzel

1шт.

12

D28957

HOSE

- flex (12" long)

1шт.

13

D28958

COUPLING, QUICK, FEM

COUPLING - hydraulic

1шт.

14

71261

GUN - grease, bucket type

1шт.

16

A50387

DRIVER - seal, A50244 or A50545 final drive seal kit

1шт.

17

A43008

TOOL

DRIVER - spacer, A50555 final drive seal kit

1шт.

18

A43007

TOOL

DRIVER - seal, A50555 final drive seal kit

1шт.

19

D40608

OPEN END WRENCH

TOOL - seal retainer, valve

1шт.
