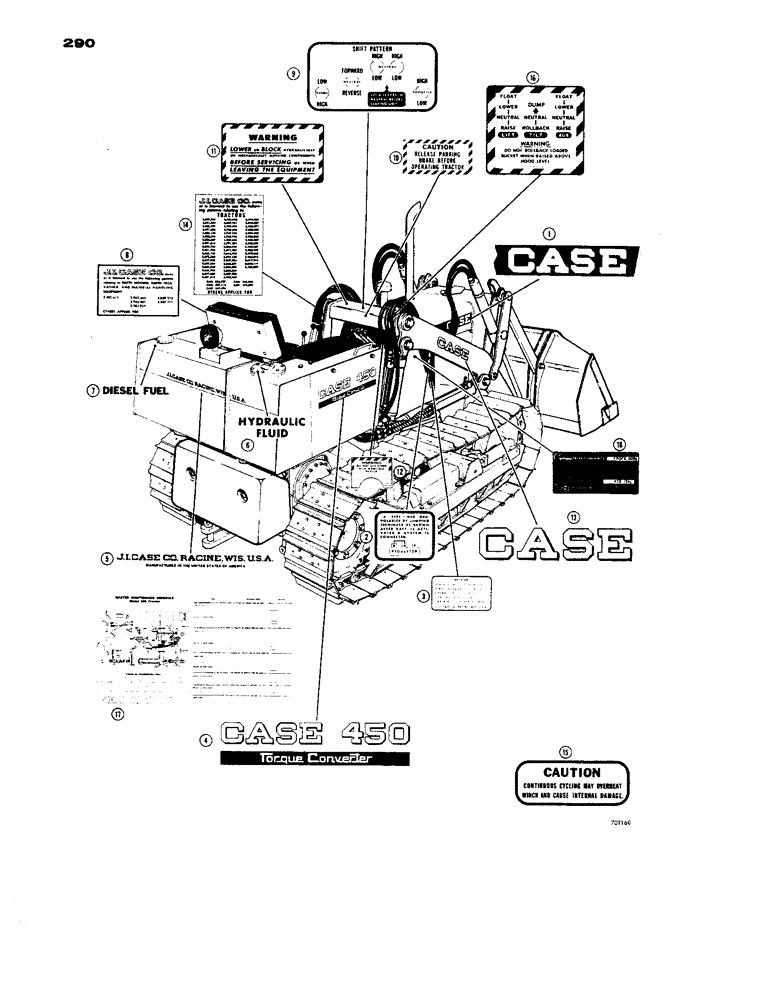

Запчасти Case 450 (290) - DECALS (05) - UPPERSTRUCTURE CHASSIS

1

321-1054

DECAL

- Case, R.H. (On hood)

1шт.

321-1055

DECAL

- Case, L.H. (On hood)

1шт.

2

321-766

DECAL

- generator instructions

1шт.

3

321-367

DECAL

- oil filter replacement, engine

1шт.

4

321-764

DECAL

- Case 450 and Torque Converter, side of Tank

2шт.

5

321-765

DECAL

- J. I. Case Co., Racine, Wisc. rear of tank

1шт.

6

321-229

DECAL

- hydraulic fluid, R.H. top of tank

1шт.

7

321-230

DECAL

- Diesel Fuel, L.H. top of tank

1шт.

321-18

DECAL

- Gasoline, L.H. top of tank (Not shown)

1шт.

8

321-246

DECAL

- patent, tractor (L.H. side of tank)

1шт.

9

321-801

DECAL

- transmission control and throttle, on dash

1шт.

10

321-208

DECAL

- Release Parking Brake, on dash

1шт.

11

321-662

DECAL

- warning, Lower or Block (On dash)

1шт.

12

321-1089

DECAL

- warning, Do Not Use Ether With Manifold Heater (Diesel Models only) At starter switch

1шт.

13

321-675

DECAL

- Case, loader arm

2шт.

14

321-663

DECAL

- patent, equipment (L.H. side of crawler)

1шт.

15

321-912

DECAL

- caution, winch (R.H. arm rest)

1шт.

16

321-1231

DECAL

- valve control instruction and loader rollback caution, on dash

1шт.

17

321-763

DECAL

- Master Maintenance, under L.H. arm rest

1шт.

18

321-1730

DECAL

- air cleaner instructions (On air cleaner)

1шт.
