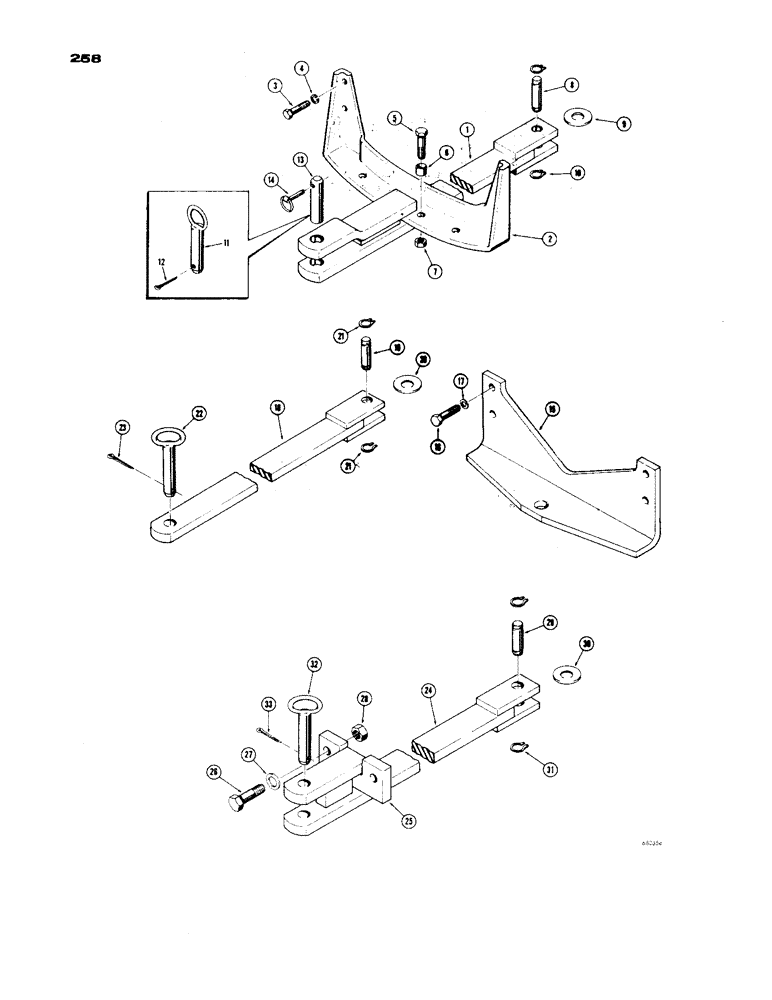

Запчасти Case 450 (258) - DRAWBARS (MODELS WITHOUT WINCH), LOADER AND DOZER MODELS, W/O REAR MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

D35204

DRAWBAR

- Drawbar and Dozer Models (When stock is exhausted, Use D44147 drawbar and D25993 pin for service)

1шт.

D44147

BAR

DRAWBAR - Drawbar and Dozer Models (Service replacement)

1шт.

D35205

X

DRAWBAR - Drawbar and Dozer Models (When stock is exhausted, use D44148 drawbar and D25993 pin for service)

1шт.

D44148

DRAWBAR, SWINGING

DRAWBAR - Drawbar and Dozer Models (Service replacement)

1шт.

2

R15785

GUIDE

- drawbar

1шт.

3

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

6

T29173

BUSHING

- stop

2шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

D34720

AXLE PIN

PIN - mounting (D35204 and D35205 drawbars)

1шт.

D25993

PIN

- mounting (D44147 and D44148 drawbars)

1шт.

9

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-1/4")

1шт.

10

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

11

R24105

DRAWBAR

PIN - mounting, equipment (D35204 and D44147 drawbars)

1шт.

12

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

13

D35202

PIN

- mounting, equipment (D35205 and D44148 drawbars)

1шт.

14

D33805

PIN

- Klik

1шт.

15

D43709

DRAWBAR - rigid

1шт.

16

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

D34690

X

DRAWBAR - Loader/Ripper Models (When stock is exhausted, use D44146 and D25993 pin for service), dozer

1шт.

D44146

DRAWBAR

- Loader/Ripper Models (Service replacement), dozer

1шт.

D34691

X

DRAWBAR - Dozer/Ripper Models (When stock is exhausted, use D44152 drawbar and D25993 pin for service), loader

1шт.

D44152

BAR

DRAWBAR - Dozer/Ripper Models (Service replacement), loader

1шт.

19

D34720

AXLE PIN

PIN - mounting (Use on D34690 and D34691 drawbars), used on loader & dozer ripper models

1шт.

D25993

PIN

- mounting (Use on D44146 and D44152 Drawbars), used on loader & dozer ripper models

1шт.

20

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-1/4"), used on loader & dozer ripper models

1шт.

21

D26918

SNAP RING,#125, Ext

Ring, Snap, , used on loader & dozer ripper models #125, Ext

2шт.

22

R24105

DRAWBAR

PIN - mounting equipment, used on loader & dozer ripper models

1шт.

23

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Used on loader & dozer ripper models 1/4" x 2"

1шт.

24

D39518

DRAWBAR

- Dozer/Backhoe Models (When stock is exhausted, use D44153 drawbar and D25933 pin for service), loader

1шт.

D44153

DRAWBAR

- Dozer/Backhoe Models (Service replacement), loader

1шт.

D39520

X

DRAWBAR - Loader/Backhoe Models (When stock is exhausted, use D44151 Drawbar and D25993 pin for service), dozer

1шт.

D44151

DRAWBAR, SWINGING

DRAWBAR - Loader/Backhoe Models (Service replacement), dozer

1шт.

25

D39519

BRACKET

- locking, drawbar, loader & dozer w/ backhoe

1шт.

26

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

HHCS - 1" - 8 NC x 3", loader & dozer w/ backhoe

2шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, loader & dozer w/ backhoe

2шт.

28

25-1016

NUT,1"-8, G5

Loader & dozer w/ backhoe 1"-8, G5

2шт.

29

D34720

AXLE PIN

PIN - mounting (Use on D39158 and D39520 drawbars), loader & dozer w/ backhoe

1шт.

D25993

PIN

- mounting (Use on D44153 and D44151 drawbars), loader & dozer w/ backhoe

1шт.

30

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat (1-1/4"), loader & dozer w/ backhoe

1шт.

31

D26918

SNAP RING,#125, Ext

Ring, Snap, , loader & dozer w/ backhoe #125, Ext

2шт.

32

R24105

DRAWBAR

PIN - mounting, equipment, loader & dozer w/ backhoe

1шт.

33

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Loader & dozer w/ backhoe 1/4" x 2"

1шт.
