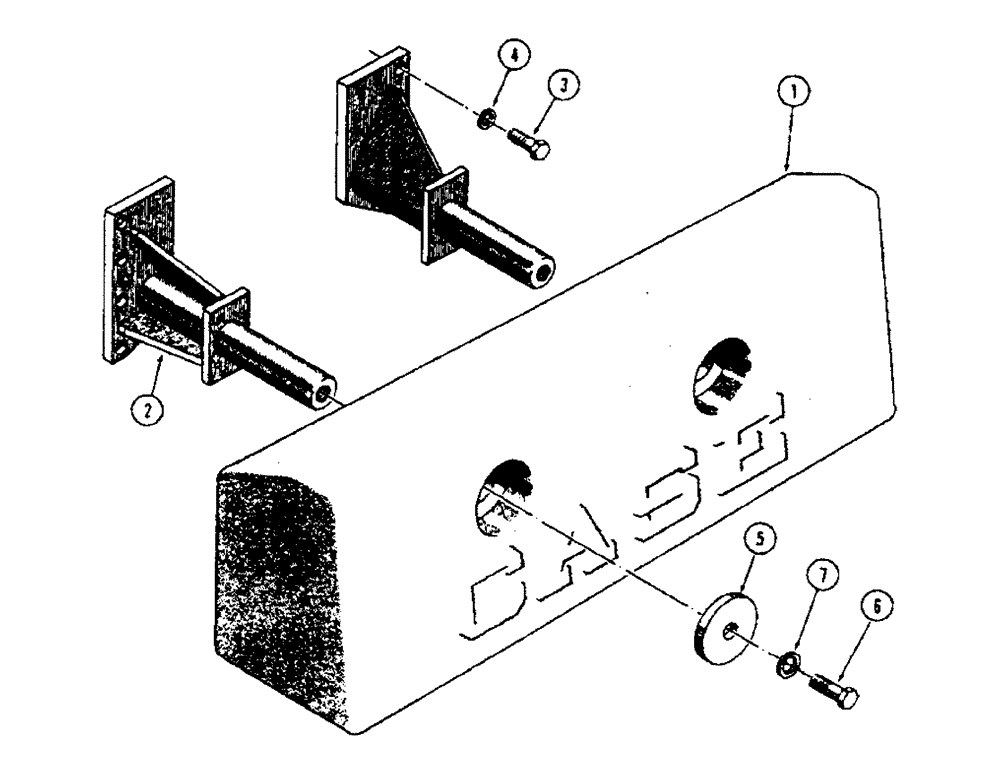

Запчасти Case 450 (256[1]) - REAR COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

1

D34737

WEIGHT

COUNTERWEIGHT - rear. 1665 lbs.

1шт.

2

D36753

BRACKET

BRACKET - mounting , L.H.

1шт.

D36754

BRACKET

BRACKET - mounting, R.H.

1шт.

3

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

4

92-10

LOCK WASHER,5/8"

8шт.

5

R17607

WASHER

WASHER - special

2шт.

6

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Includes: Ref. 7

2шт.

7

92-12

LOCK WASHER,3/4"

2шт.
