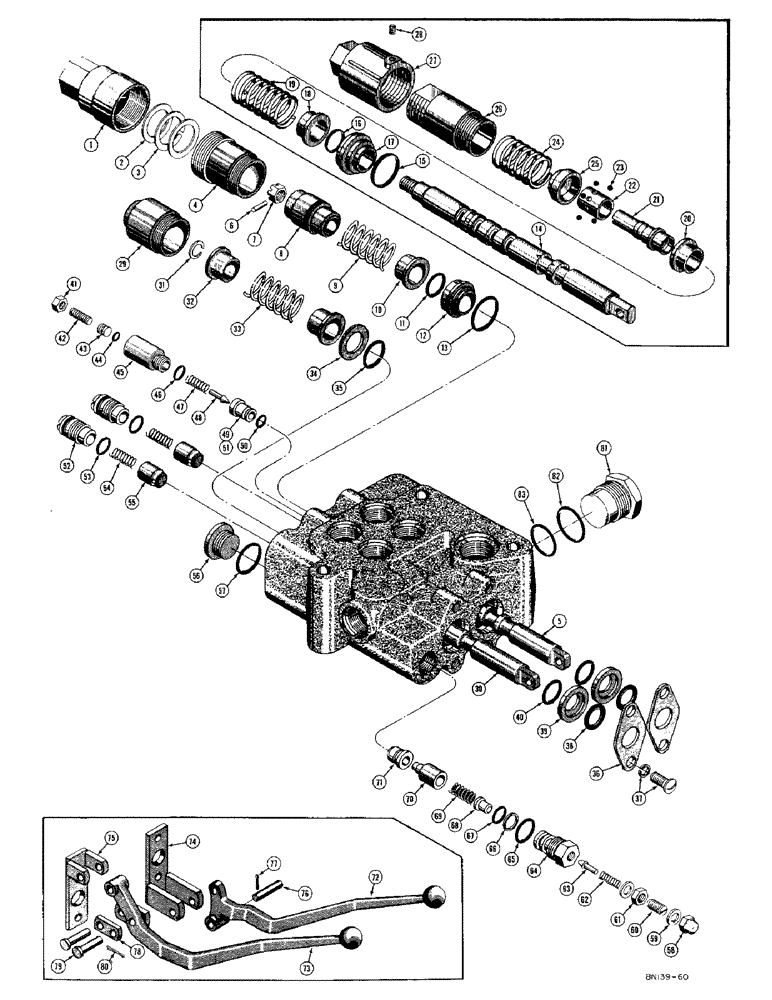

Запчасти Case 420C (162) - D26491 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D26491

VALVE - hydraulic control (Parker #VDP12 DF28) when stock is exhausted, order D29615

1шт.

1

D26272

CAP - four position spool (Snap ring type detent)

1шт.

2

D26273

WASHER - spacer (Snap ring type detent)

2шт.

3

A14541

RING, SNAP

SNAP RING - float detent (Snap ring type detent)

1шт.

4

D26271

ADAPTER - cap, four position spool (Snap ring type detent)

1шт.

5

D26248

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - black or letter code - W) (.73700" to .73709") Use D29847 spool assembly with ball type detent - See ref. #14

1шт.

D26247

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - blue or letter code - X) (.73710" to .73719") Use D11723 spool assembly with ball type detent - See ref. #14

1шт.

D26249

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - yellow or letter code - Y) (.73720" to .73729") Use D29848 spool assembly with ball type detent - See ref. #14

1шт.

D26250

SPOOL ASSEMBLY - four position, snap ring type detent (Color code - green or letter code - Z (.73730" to .73740") Use D29849 spool assembly with ball type detent - See ref. #14

1шт.

6

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

7

A14544

NUT - castle

1шт.

8

A14539

BARREL - float detent

1шт.

9

A14534

SPRING

- float detent

1шт.

10

A14538

SPACER - float detent spring

1шт.

11

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

12

A14537

RETAINER - "O"ring seal

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

14

D29847

SPOOL ASSEMBLY - four position, ball type detent (Color code - black or letter code - W), Serial Range: (.73700"-.73709")

1шт.

D11723

SPOOL ASSEMBLY - four position, ball type detent (Color code - blue or letter code - X) (.73710", Serial Range: -.73719")

1шт.

D29848

SPOOL ASSEMBLY - four position, ball type detent (Color code - yellow or letter code - Y), Serial Range: (.73720"-.73729")

1шт.

D29849

SPOOL ASSEMBLY - four position, ball type detent (Color code - green or letter code - Z), Serial Range: (.73730"-.73740")

1шт.

15

A16877

SEAL

- "O"ring, outer

1шт.

16

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, inner

1шт.

17

A14537

RETAINER - "O"ring (For service use D31433)

1шт.

D31433

RETAINER

- "O"ring

1шт.

18

A16879

SPACER

- spool centering, rear

1шт.

19

A16882

SPRING

- centering

1шт.

20

A16881

SEAT

SPACER - spool centering, front

1шт.

21

D29840

BARREL - detent

1шт.

22

A16848

SLEEVE CYLINDER

SLEEVE - detent

1шт.

23

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

24

A16853

VALVE SPRING

SPRING - detent (For service use D31434)

1шт.

D31434

X

SPRING - detent

1шт.

25

D29848

RETAINER - ball

1шт.

26

A16885

X

CAP - rear

1шт.

27

A16884

CYLINDER END CAP

CAP - front

1шт.

28

A16855

SCREW

- set, headless slotted (Nylon) (1/4" - 20 NC x 7/16") (For service use 178-28)

1шт.

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, socket head (1/4" - 20 NC x 1/2")

1шт.

29

A14529

CAP

- three position spool

1шт.

30

D26243

SPOOL ASSEMBLY - three position (Color code - black or letter code - W), Serial Range: (.73700"-.73709")

1шт.

D26244

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X), Serial Range: (.73710"-.73719")

1шт.

D26245

SPOOL ASSEMBLY - three position (Color code - yellow or letter code - Y), Serial Range: (.73720"-.73729")

1шт.

D26246

SPOOL ASSEMBLY - three position (Color code - green or letter code - Z), Serial Range: (.73730"-.73740")

1шт.

31

A13190

X

SNAP RING - spring retainer

1шт.

32

A14533

BRONZE BUSHING

SPACER - spring

2шт.

33

A14534

SPRING

- spool return

1шт.

34

A14535

RETAINER

- "O"ring

1шт.

35

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

36

A14531

PLATE ASSY.

PLATE - retainer

2шт.

37

D20771

SCREW AND LOCKWASHER - retainer plate

4шт.

38

A14527

SCRAPER

RING - wiper, spool

2шт.

39

A14526

RETAINER

- wiper ring

2шт.

40

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

2шт.

D26896

VALVE - secondary relief, adjustable

1шт.

41

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

42

173-395

SCREW - set, headless slotted (1/4" - 28 NF x 3/4")

1шт.

43

D26897

FOLLOWER - spring

1шт.

44

D26899

O-RING,0.145" ID

SEAL - "O"ring, overload relief spring spacer

1шт.

45

D26900

CAP - secondary relief valve

1шт.

47

D26898

SPRING - overload relief

1шт.

48

D26278

PLUNGER - secondary relief valve

1шт.

49

D26276

SEAT - plunger (Use D29853)

1шт.

50

D26277

SEAL - "O"ring, D26276 plunger seat

1шт.

51

D29853

SEAT

- plunger

1шт.

52

A14532

CAP

- check valve

2шт.

53

A14536

RING

SEAL - "O"ring, check valve cap

2шт.

54

A14520

VALVE SPRING

SPRING - check valve

2шт.

55

A14528

POPPET - check valve

2шт.

56

A13192

X

PLUG - pipe, Allen head

1шт.

57

D26410

X

SEAL - "O"ring, pipe plug

1шт.

58

D20756

X

NUT - acorn, pilot operated relief valve

1шт.

59

D26270

WASHER, SEALING

WASHER - special fibre

2шт.

60

82-514

SET SCREW

SCREW - adjusting, pilot operated relief valve (5/16" - 24 NF x 7/8")

1шт.

61

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16" - 24 NF)

1шт.

62

D26268

SPRING

- pilot

1шт.

63

D26267

PLUNGER

- relief valve

1шт.

64

D26262

CAP

- relief valve

1шт.

66

D26264

X

RING - backup

1шт.

67

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O"ring

1шт.

68

D26266

SEAT

- relief valve

1шт.

69

D26261

VALVE SPRING

SPRING - relief valve

1шт.

70

D26260

VALVE POPPET

POPPET - relief valve

1шт.

71

D26259

SEAT

- poppet

1шт.

72

D25221

LEVER - valve control, R.H.

1шт.

73

D25220

LEVER - valve control, L.H.

1шт.

74

D25659

BRACKET - pivot, R.H. valve control lever

1шт.

75

D25657

BRACKET - pivot, L.H. valve control lever

1шт.

76

D25660

PIN - mounting, valve lever to pivot bracket

2шт.

77

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

78

D25483

LINK

- valve control, Serial Range: lever-valve

4шт.

79

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

4шт.

80

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

81

D25783

PLUG - special, high pressure carry-over (Backhoe models only)

1шт.

82

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, large (D25783 plug)

1шт.

83

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O"ring, small (D25783 plug)

1шт.

46

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.

65

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, relief valve cap

1шт.
