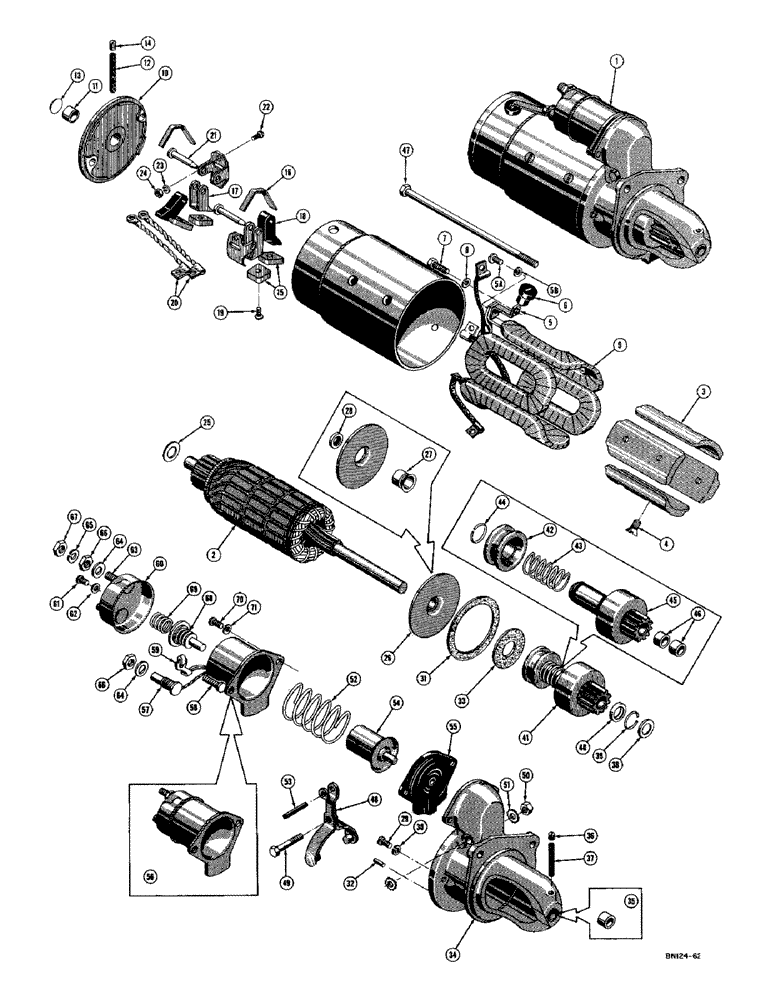

Запчасти Case 420C (080) - G44927 STARTER - DIESEL (06) - ELECTRICAL SYSTEMS

1

G44927

STARTER AND SOLENOID ASS'Y

1шт.

2

ARMATURE

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

3

SHOE - pole

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

5

CONNECTOR - field to solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

5a

SCREW - switch, Serial Range: connector-field

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

5b

R16201

WASHER - lock, switch to connector field screw

1шт.

6

GROMMET - connector (In field frame)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

7

SCREW - field, Serial Range: lead-switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

8

R16201

WASHER - lock, field lead to switch

1шт.

9

COIL - field

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

10

FRAME ASS'Y - commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

11

BUSHING - commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

12

WICK - oil, commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

13

R15021

PLUG

- expansion, commutator end

1шт.

14

R15022

PLUG - pipe, commutator end

1шт.

15

BRUSH

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

16

SPRING - brush

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

17

R15026

X

HOLDER - ground brush

2шт.

18

R15027

HOLDER

- insulated brush

2шт.

19

R18195

SCREW - brush attaching

4шт.

KIT - service, brush holder support

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

20

LEAD - brush ground

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

21

PIN - brush support

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

22

SCREW - attaching, support

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

23

R15033

X

WASHER - lock, support attaching screw

4шт.

24

R15032

X

NUT - support attaching screw

4шт.

25

R15036

WASHER - space, commutator end (9/16" I.D. x 63/64" O.D. x 1/16" thick)

1шт.

26

CENTER BEARING PLATE

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

27

BUSHING - center bearing

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

28

SEAL - oil, center bearing

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

29

R15102

SCREW - attaching, center bearing

2шт.

30

WASHER - lock, center bearing attaching screw

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

31

GASKET - between center bearing and housing

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

32

PIN - dowel, drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

33

WASHER - brake (Between center bearing and motor drive)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

34

HOUSING - drive

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

35

BUSHING - drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

36

PLUG - pipe, drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

37

WICK - oil, drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

38

WASHER - space drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

39

RING - retainer, pinion stop

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

40

COLLAR - pinion stop

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

41

DRIVE ASS'Y - motor

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

42

COLLAR - pinion stop

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

43

SPRING - drive ass'y

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

44

WIRE - lock, drive ass'y

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

45

NSS

NOT SOLD SEPARAT

PINION - motor drive

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

46

BUSHING - oilless

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

47

BOLT - thru

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

48

LEVER - shift

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

49

SCREW - shift lever

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

50

NUT - shift lever stud

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

51

WASHER - lock, shift lever stud

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

52

SPRING - plunger return

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

53

PIN - shift lever

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

54

PLUNGER - solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

55

BOOT - solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

56

A35350

X

SWITCH - solenoid

1шт.

57

STUD - terminal, motor

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

58

STUD - terminal, switch (#8 - 32 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

59

CLIP - terminal

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

60

COVER - solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

61

SCREW - cover attaching

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

62

WASHER - cover attaching screw

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

63

STUD - terminal, battery (3/8" - 16 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

64

WASHER - sealing, battery terminal

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

65

WASHER - lock, battery terminal (3/8")

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

66

NUT - sealing, terminal (3/8" - 16 NC)

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

67

NUT - hex., terminal stud (3/8" - 16 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

68

CONTACT ASS'Y

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

69

SPRING - return, contact

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

70

SCREW - attaching, solenoid switch

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

71

WASHER - lock, solenoid switch attaching screw

2шт.

Part must be obtained from a Delco-Remy service station

1шт.
