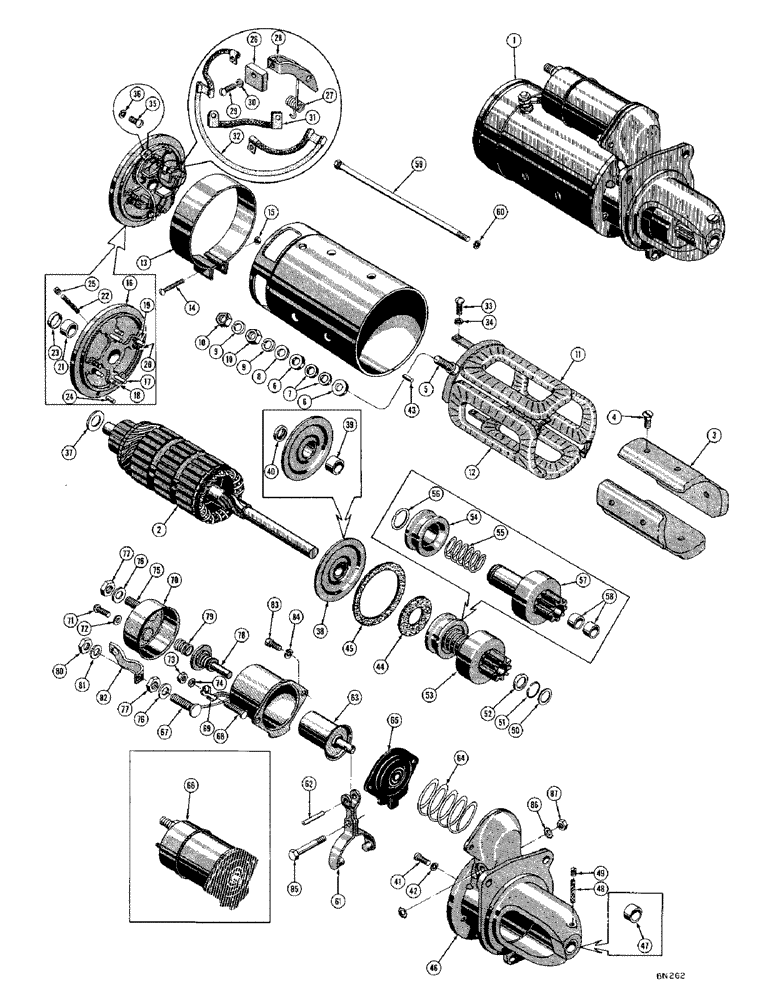

Запчасти Case 420C (076) - G44881 STARTER - DIESEL (06) - ELECTRICAL SYSTEMS

1

G44881

STARTER AND SOLENOID ASS'Y

1шт.

2

ARMATURE

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

3

SHOE - pole

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

4

SCREW - pole shoe

8шт.

Part must be obtained from a Delco-Remy service station

1шт.

5

STUD - terminal

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

6

WASHER - insulation, terminal stud (3/4" O.D.)

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

7

R15117

WASHER - insulation, terminal stud (9/16" O.D.)

2шт.

8

WASHER - plain, terminal stud

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

9

R15012

WASHER - lock, terminal stud

2шт.

10

R15014

NUT

- terminal stud

2шт.

11

COIL - field, upper

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

12

COIL - field, lower

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

13

BAND - cover

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

14

R15097

SCREW - cover band

1шт.

15

NUT - cover band screw

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

16

COMMUTATOR END FRAME AND PIN ASS'Y

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

17

R15130

PIN - hinge, brush holder

2шт.

18

R15131

PIN - stop, brush holder

2шт.

19

R15132

PIN - brush holder hinge and insulation

2шт.

20

R15133

PIN - brush holder stop insulation

2шт.

21

BUSHING - commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

22

WICK - oil, commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

23

R15021

PLUG

- expansion, commutator end

1шт.

24

R15095

PIN - dowel, commutator end

1шт.

25

R15022

PLUG - pipe, oil wick

1шт.

26

BRUSH

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

27

SPRING - brush

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

28

HOLDER - brush

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

29

SCREW - brush attaching

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

30

WASHER - lock, brush attaching screw

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

31

LEAD - brush ground

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

32

LEAD - brush jumper

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

33

R15039

X

SCREW - attaching, brush lead to field coil

2шт.

34

R15033

X

WASHER - lock, brush lead attaching screw

2шт.

35

SCREW - brush ground lead attaching

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

36

WASHER - lock, brush ground lead attaching screw

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

37

R15036

WASHER - space, commutator end (9/16" I.D. x 63/64" O.D. x 1/16 thick)

1шт.

38

CENTER BEARING PLATE

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

39

BUSHING - center bearing

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

40

SEAL - oil, center bearing

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

41

R15102

SCREW - center bearing attaching

1шт.

42

R15040

X

WASHER - lock, center bearing attaching screw

4шт.

Part must be obtained from a Delco-Remy service station

1шт.

43

R15041

PIN - dowel, drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

44

R15043

WASHER

- brake (Between center bearing and motor drive)

1шт.

45

GASKET - center bearing

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

46

HOUSING ASS'Y - motor drive

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

47

BUSHING - drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

48

R15129

WICK

- oil, drive end

1шт.

49

R15022

PLUG - pipe, oil wick

1шт.

50

WASHER - space, drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

51

R15048

RING

- retainer, pinion stop

1шт.

52

R15049

COLLAR

- pinion stop

1шт.

53

DRIVE ASS'Y - motor

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

54

COLLAR - pinion stop

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

55

SPRING - drive ass'y

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

56

R17476

WIRE - lock, drive ass'y

1шт.

57

NSS

NOT SOLD SEPARAT

PINION - motor drive

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

58

BUSHING - oilless

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

59

BOLT - thru

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , thru bolt 1/4"

2шт.

61

LEVER - shaft

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

62

PIN - attaching, shift lever to plunger

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

63

PLUNGER - solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

64

SPRING - plunger return

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

65

BOOT - solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

66

G44891

SOLENOID

SWITCH - solenoid

1шт.

67

STUD - terminal, motor (3/8" - 16 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

68

STUD - terminal, switch (#8 - 32 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

69

CLIP - terminal

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

70

COVER - solenoid switch

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

71

SCREW - cover attaching

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

72

WASHER - cover attaching screw

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

73

NUT - terminal stud (#8 - 32 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

74

WASHER - lock, terminal (#8)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

75

STUD - terminal, battery (3/8" - 16 NC)

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

76

WASHER - insulation, terminal stud (3/8")

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

77

NUT - terminal stud (3/8" - 16 NC)

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

78

CONTACT ASS'Y

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

79

SPRING - contact return

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

80

R15015

X

NUT - hex., terminal (3/8" - 16 NC)

1шт.

81

WASHER - lock, terminal (3/8")

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

82

G46308

CONNECTOR - switch

1шт.

83

SCREW - attaching, solenoid switch

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

84

WASHER - lock, switch attaching screw

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

85

SCREW - shift lever

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

86

WASHER - lock, sealing

2шт.

Part must be obtained from a Delco-Remy service station

1шт.

87

NUT - shift lever screw

1шт.

Part must be obtained from a Delco-Remy service station

1шт.
