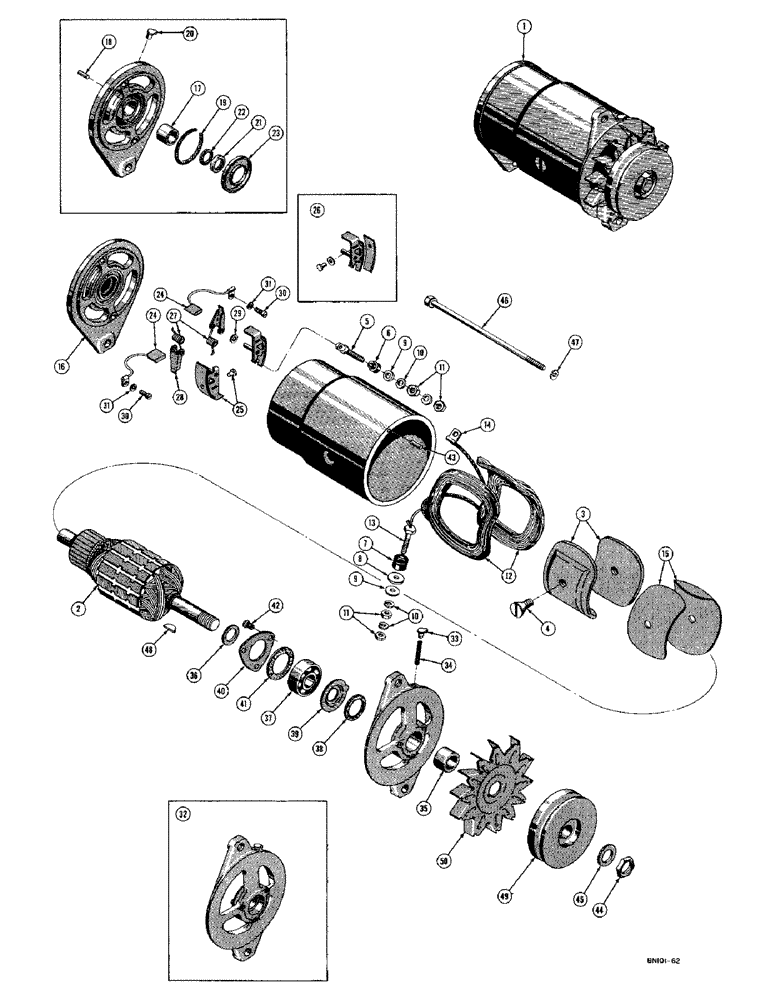

Запчасти Case 420C (074) - D27034 GENERATOR - DIESEL (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

ASS'Y, Includes: Ref. 2 - 50

1шт.

1

103822A1R

REMAN-GENERATOR

Remanufactured Generator

1шт.

1

103822A1C

CORE-GENERATOR

Return Number

1шт.

1

103814A1R

REMAN-GENERATOR

Generator

1шт.

1

103814A1C

CORE-GENERATOR

Return Number

1шт.

2

ARMATURE

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

3

R16145

SHOE - pole

2шт.

4

R15009

SCREW - pole shoe

2шт.

5

R16146

X

STUD - armature terminal

1шт.

6

R16147

BUSHING

- insulation, armature terminal stud

1шт.

7

R15077

X

BUSHING - insulation, field terminal stud

1шт.

8

R16148

WASHER

- insulation, field terminal stud

1шт.

9

R15079

WASHER

- plain, terminal stud

2шт.

10

R15080

TOOTH

WASHER - lock, terminal stud

4шт.

11

129-18

NUT,#12-24

- hex., terminal stud

4шт.

12

FIELD COIL SET, Includes: Ref. 13 - 15

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

13

R16150

X

STUD - field terminal

1шт.

14

R16151

CLIP -, Serial Range: terminal-brush

1шт.

15

R16152

INSULATOR

- field coil

2шт.

16

FRAME - commutator end, Includes: Ref. 17 - 23

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

17

BUSHING - commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

18

R15095

PIN - dowel, commutator end

1шт.

19

WICK - oil, commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

20

R16155

OILER - commutator end

1шт.

21

R16156

CUP

- felt retainer, commutator end

1шт.

22

R16157

WASHER

- felt, commutator end

1шт.

23

RETAINER - wick, commutator end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH

2шт.

25

R16159

X

HOLDER - ground brush

1шт.

26

R16160

X

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

- brush

2шт.

29

R16162

WASHER - space, brush arm

2шт.

30

R15232

SCREW - attaching, brush lead

2шт.

31

R15093

X

WASHER - lock, brush lead attaching screw

2шт.

32

R16163

X

FRAME - drive end, Includes: Ref. 33 & 34

1шт.

33

R16164

OILER

- drive end

1шт.

34

R16165

WICK - oil, drive end

1шт.

35

R16166

BUSHING

COLLAR - space, drive end (Outer)

1шт.

36

R15100

WASHER - space, drive end (Inner)

1шт.

37

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

38

R16168

WASHER

- felt, drive end

1шт.

39

R16169

LARGE PLATE

PLATE - retainer, felt washer (Drive end)

1шт.

40

R15101

PLATE

- retainer, ball bearing (Drive end)

1шт.

41

R16170

GASKET

- bearing retainer plate

1шт.

42

R15102

SCREW - attaching, bearing retainer plate

3шт.

43

R15041

PIN - dowel, drive end

1шт.

44

R15105

X

NUT - armature shaft, drive end

1шт.

45

R16171

SPRING WASHER

- lock, shaft nut

1шт.

46

R16172

BOLT

- thru

2шт.

47

R15070

WASHER - lock, thru bolt

2шт.

48

R15047

X

KEY - Woodruff, drive end

1шт.

49

PULLEY - drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.

50

FAN - ventilating, drive end

1шт.

Part must be obtained from a Delco-Remy service station

1шт.
