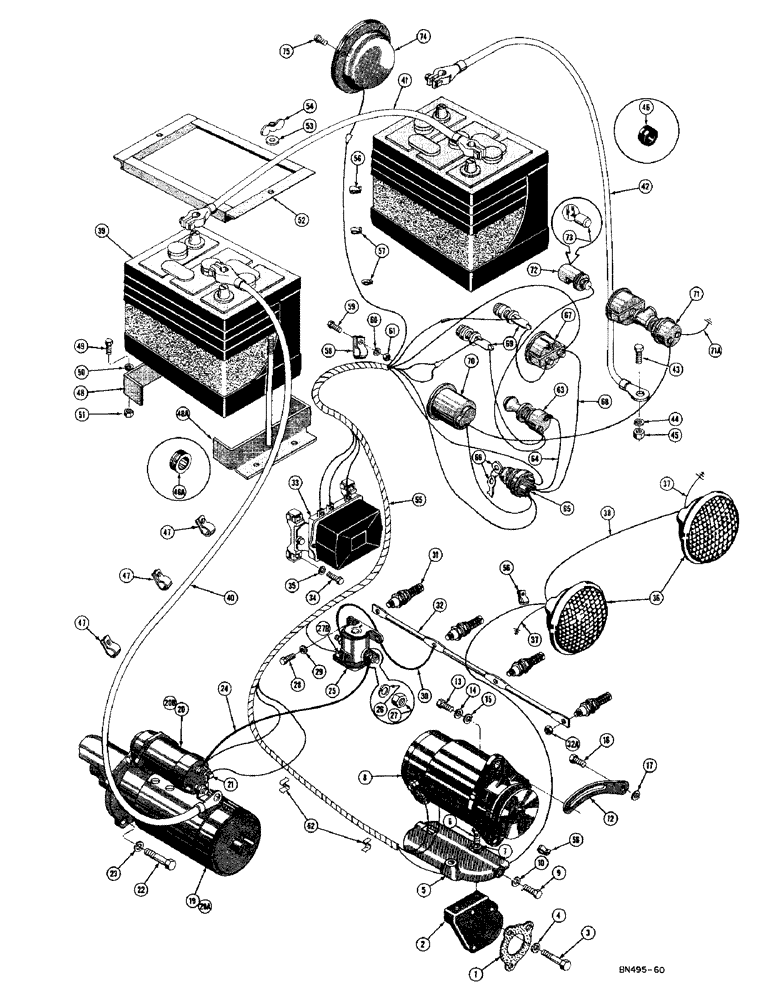

Запчасти Case 420C (070) - STARTER, GENERATOR, BATTERY, AND WIRING - DIESEL (06) - ELECTRICAL SYSTEMS

1

VT3691

X

GASKET - generator bracket support

1шт.

2

G2098

SPARE PART SUPPORT - generator

1шт.

3

15-652

X

HHCS - 3/8" - 16 NC x 3-1/8"

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

G2131

X

BRACKET - generator

1шт.

6

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Inner

1шт.

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Outer (Not shown)

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

D27034

GENERATOR

Delco-Remy #1100404 (See Figure 074 for breakdown)

1шт.

9

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

RESERVED

1шт.

12

G11345

STRAP

Generator adjusting

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

RESERVED

1шт.

19

G44881

SPARE PART MOTOR - starting (Delco-Remy #1108670) See Figure 076 for breakdown (For service order G44927), Includes: Ref. 20

1шт.

20

G44891

SOLENOID

Starting motor (Delco-Remy #1114251) See Figure 076 for breakdown

1шт.

20a

G44927

SPARE PART MOTOR - starting (Delco-Remy #1107516) See Figure 080 for breakdown (See G44881), Includes: Ref. 20B

1шт.

20b

A35350

X

SOLENOID - starting motor (Delco-Remy #1114289) See Figure 080 for breakdown

1шт.

192-21

LOCK WASHER,3/8"

Solenoid battery terminal, Not shown

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

Solenoid battery terminal, Not shown

1шт.

21

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

G44053

X

CABLE - starter solenoid to heater solenoid

1шт.

25

G44835

SOLENOID

Heater switch

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

27

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

27b

193-1000

NUT,Keps, w/LW,#10-32

1шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Heater solenoid to block

2шт.

29

193-60

LOCK WASHER,Int Tooth, 1/4"

2шт.

30

G44067

SPARE PART Heater, Serial Range: solenoid-heaters

1шт.

31

G45259

PLUG

Heater, manifold

4шт.

32

G44068

SPARE PART BAR - connecting, heater plugs (When stock is exhausted, order G15955)

1шт.

G15955

BAR

Connecting, heater plugs (See G44068)

1шт.

32a

193-1000

NUT,Keps, w/LW,#10-32

4шт.

33

D27035

REGULATOR

SPARE PART Voltage (Delco-Remy #1119279)

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

REF

INSTRUCTION

LIGHT - head (See Figure 094, ref. #16)

2шт.

37

33705

GLASS

WIRE Ground, headlight

2шт.

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

Ground wire, not shown

2шт.

193-5

LOCK WASHER,Ext Tooth, #8

Shakeproof lock, internal tooth (#8) not shown

2шт.

38

D25763

JUMPER - headlight

1шт.

39

D27664

SPARE PART BATTERY - 6 volt (Original equipment - Auto-Lite #1MA105R; standard replacement - Auto-Lite #1HA115R2)

2шт.

40

32375

CABLE

SPARE PART Battery, hot (75")

1шт.

41

38479

CABLE - battery jumper (52")

1шт.

42

D27497

SPARE PART Battery ground (35")

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

Hex

1шт.

46

49562

GROMMET,11/16" ID x 1" Groove Dia

Rubber, battery cable (LH tool box)

1шт.

46a

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Rubber, battery cable (RH tool box)

1шт.

47

49836

CLAMP

Wire, battery cable

3шт.

48

D27095

RETAINER - battery, rear retainer for RH battery and front retainer for LH battery

2шт.

48a

D28378

RETAINER - battery, front retainer for RH battery and rear retainer for LH battery

2шт.

49

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

50

192-21

LOCK WASHER,3/8"

8шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

8шт.

52

D22844

BRACKET

Battery hold down

2шт.

53

95-6

WASHER,3/8"

Standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

4шт.

54

129-410

WING NUT,3/8"-16

4шт.

55

D27492

SPARE PART HARNESS - main

1шт.

56

O4599AB

SPARE PART CLAMP - wire, main wiring harness

3шт.

57

O2457AB

SPARE PART CLAMP - wire, main wiring harness

2шт.

58

49838

CLAMP

Wire, main wiring harness

1шт.

59

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

60

92-4

LOCK WASHER,1/4"

1шт.

61

25-104

NUT,1/4"-20, G5

1шт.

62

NLS

NO LONGER SERVICED

Wire, main wiring harness

2шт.

63

10855

X

LIGHT SWITCH

1шт.

R22699

X

SWITCH - light (See 10855)

1шт.

64

33705

GLASS

WIRE JUMPER - light switch to starter switch

1шт.

65

A21487

X

SWITCH - starter (For service order D29292), Includes Ref. 66

1шт.

66

A20621

KEY

Switch

2шт.

65

D29292

SPARE PART SWITCH - starter (See A21487), Includes Ref. 66

1шт.

66

A20346

KEY

Ignition Switch

1шт.

67

10860

X

AMMETER AMMETER - (When stock is exhausted, order R18748)

1шт.

R18748

AMMETER

AMMETER - See 10860

1шт.

68

33709

JUMPER - ammeter to starter switch

1шт.

69

D23834

HOLDER

Fuse, Includes 25 amp fuse

2шт.

223-25

FUSE,25 Amp, Type 3AG

(AGC 25) (1/4" dia. x 1-1/4" long) not shown

1шт.

70

33481

X

METER - engine hour

1шт.

71

D28798

SWITCH

Pressure, oil, Includes Ref. 71A

1шт.

71a

D28797

ELECTRICAL WIRE

WIRE Pressure switch

1шт.

72

D26513

SPARE PART Dash

1шт.

73

D26704

X

BULB - dash light (Mfr's #57)

1шт.

74

30903

SPARE PART Tail, 12 volt (See Figure 138 for breakdown)

1шт.

33685

SPARE PART Taillight (Mfr's #1141)

1шт.

75

187-29

SCREW

Self tapping, taillight

3шт.
