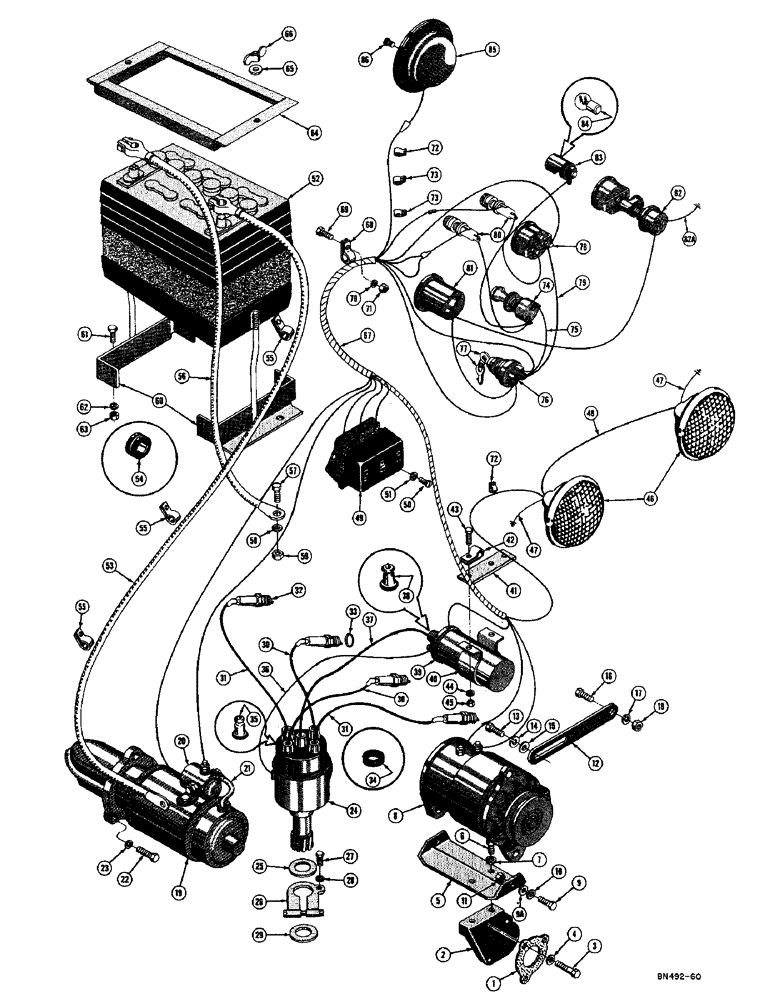

Запчасти Case 420C (030) - STARTER, GENERATOR, BATTERY, AND WIRING - GAS (06) - ELECTRICAL SYSTEMS

1

VT3691

X

GASKET - generator bracket support

1шт.

2

G2098

SPARE PART SUPPORT - generator bracket

1шт.

3

15-652

X

HHCS - 3/8 - 16 NC x 3-1/4

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

D26162

SPARE PART Generator

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

D22878

X

GENERATOR - 12 volt (Auto-lite #GJT-7106A) See Figure 034 for breakdown

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9a

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot

1шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

G11344

SPARE PART Generator adjusting

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

1шт.

19

G44888

X

MOTOR - starting (Auto-Lite #MDU-7104) See Figure 036 for breakdown

1шт.

20

G44892

SPARE PART SOLENOID - starting (Auto-Lite #SAE-4006) Use A20145

1шт.

A20145

X

SOLENOID - starting (Auto-Lite #SAW-4201)

1шт.

21

G46297

CONNECTOR, ELEC

CONNECTOR BAR - connecting, solenoid to starting motor (Auto-Lite #SS-6L)

1шт.

129-122

NUT,5/16"-24, G5

(Battery solenoid terminal) outer, not shown

1шт.

193-1000

NUT,Keps, w/LW,#10-32

(Ignition switch solenoid terminal) outer, not shown

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

G11051

DISTRIBUTOR

(Auto-Lite #IAD-6003-2J) See Figure 040 for breakdown

1шт.

25

VT5060

X

WASHER - thrust, distributor advance arm (Auto-Lite #LG-816)

1шт.

26

VTA2775

X

ARM - distributor advance (Auto-Lite #IG-1860-A1)

1шт.

27

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

28

92-4

LOCK WASHER,1/4"

1шт.

29

VT4593

X

SEAL -, Serial Range: distributor-block

1шт.

30

VTA3354

X

WIRE - #2 and #3 spark plugs to distributor (8-1/2")

2шт.

31

VT2879

X

WIRE - #1 and #4 spark plugs to distributor (10-1/2")

2шт.

32

G44840

SPARK PLUG

18 mm (Champion #D16)

4шт.

33

G46839

GASKET

Spark plug

1шт.

34

V20356

NUT

WASHER - rubber, spark plug wire retaining

1шт.

35

VT3561

X

NIPPLE, rubber, spark plug wires and coil cable at distributor

5шт.

36

G13085

ELECTRICAL WIRE

WIRE Coil to distributor (12")

1шт.

37

VT3534

X

CABLE - coil to distributor (11")

1шт.

38

G46803

BOOT

NIPPLE - rubber, coil to distributor cable at coil

1шт.

39

G44808

X

COIL - ignition (Auto-Lite #CAG-4002A)

1шт.

40

G46106

BRACKET

BAND - coil mounting

1шт.

173-219

SPARE PART Machine, round head (Zinc plated) (1/4"- 20 NC x 1-1/2"), not shown

1шт.

41

G11705

BRACKET

STRAP - mounting, coil to valve cover stud

1шт.

42

49774

CLAMP

Wire

2шт.

43

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

2шт.

44

92-5

LOCK WASHER,5/16"

2шт.

45

25-115

NUT,5/16"-24, G5

2шт.

46

REF

INSTRUCTION

LIGHT - head (See Figure 094, ref #16)

2шт.

47

33705

GLASS

WIRE Ground, headlight

2шт.

48

D25753

JUMPER - headlight

1шт.

49

G44878

REGULATOR

Voltage (Auto-Lite #VBO-6201C-1) serviced only as an assembly

1шт.

50

71-46

SCREW - machine fillister head (1/4"- 20 NC x 3/8")

3шт.

51

92-4

LOCK WASHER,1/4"

3шт.

52

D27292

BATTERY - 12 volt (Auto-Lite #11HSA-50B)

1шт.

53

32375

CABLE

SPARE PART Battery, hot (75")

1шт.

54

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Rubber, battery cable hole in RH tool box

1шт.

55

49836

CLAMP

CLIP - wire, battery cable

3шт.

56

D27497

SPARE PART Battery, ground (35")

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

58

92-6

LOCK WASHER,3/8"

1шт.

59

25-106

NUT,3/8"-16, G5

1шт.

60

D27096

RETAINER - battery

2шт.

61

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

62

192-21

LOCK WASHER,3/8"

4шт.

63

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

64

D22841

SPARE PART BRACKET - battery hold down

1шт.

65

95-5

WASHER,3/8" x 7/8" x .083"

Standard wrot

2шт.

66

129-410

WING NUT,3/8"-16

2шт.

67

D24941

SPARE PART HARNESS - main

1шт.

68

49838

CLAMP

Wire, main wiring harness

2шт.

69

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

70

92-4

LOCK WASHER,1/4"

1шт.

71

25-104

NUT,1/4"-20, G5

1шт.

72

04599AB

CLAMP - wire, main wiring harness

2шт.

73

02457AB

CLAMP- wire, main wiring harness

2шт.

74

10855

X

LIGHT SWITCH

1шт.

R22699

X

SWITCH - light (See 10855)

1шт.

75

NLS

NO LONGER SERVICED

WIRE JUMPER - light switch to ignition switch

1шт.

76

A11373

SWITCH

SWITCH - ignition & starter, Includes Ref 77

1шт.

77

A20346

KEY

Ignition switch

1шт.

78

10860

X

AMMETER AMMETER

1шт.

79

33709

JUMPER -, Serial Range: ammeter-ignition

1шт.

80

D23834

HOLDER

Fuse

2шт.

223-25

FUSE,25 Amp, Type 3AG

(AGC 25) (1/4" dia. x 1-1/4" long) not shown

1шт.

81

33481

X

METER - engine hours

1шт.

82

08179AB

SWITCH - pressure, oil (Hour meter) Use D28798

1шт.

D28798

SWITCH

Pressure, oil (Hour meter)

1шт.

82a

D28797

ELECTRICAL WIRE

WIRE Ground pressure switch (18")

1шт.

83

D26513

SPARE PART Dash

1шт.

84

D26704

X

BULB - dash luight (Mfrs. #57)

1шт.

85

30903

SPARE PART Tail, 12 volt (See Figure 138 for breakdown)

1шт.

33685

SPARE PART Taillight (Mfrs. #1141) not shown

1шт.

86

187-29

SCREW

Self tapping, taillight

3шт.
