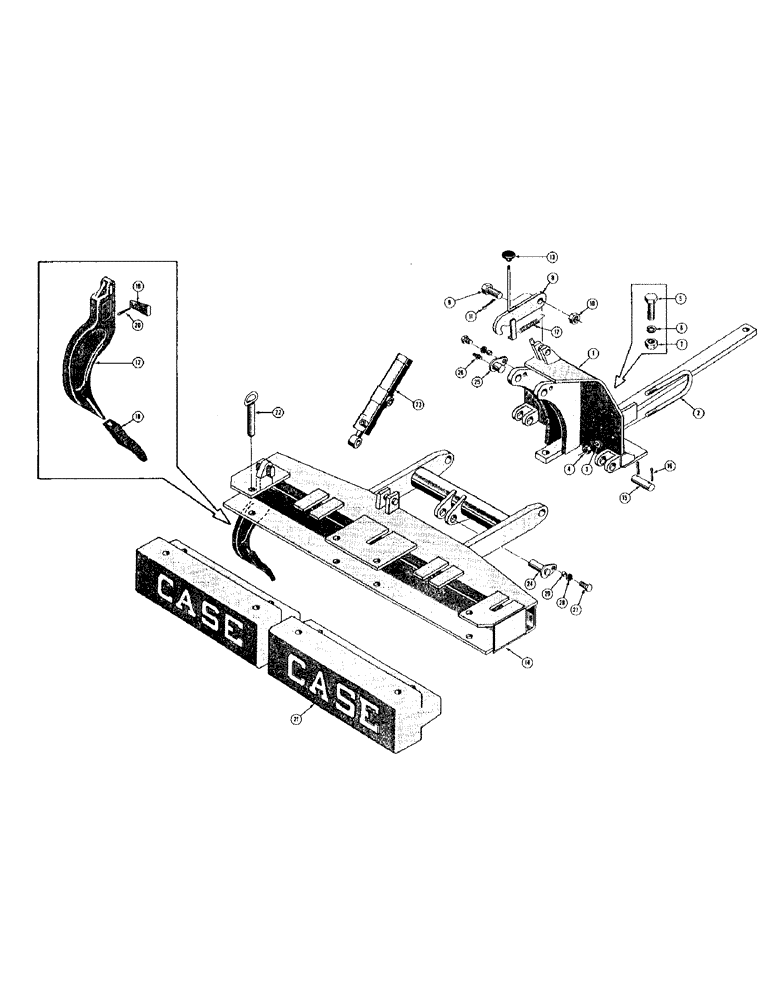

Запчасти Case 420C (228) - SCARIFIER (05) - UPPERSTRUCTURE CHASSIS

1

37399

PUMP, FUEL INJECTION

PLATE - mounting

1шт.

2

31696

BOLT

"U" BOLT - mounting plate to final drive spacer

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

8

D25947

LOCK - transport safety (When stock is exhausted, order D29985)

1шт.

D29985

LOCK

- transport safety

1шт.

9

D25951

BOLT

- special (1-1/4" - 12 NF x 3-1/4")

1шт.

10

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex., slotted (1-1/4" - 12 NF x 3-1/4")

1шт.

12

11469

SPRING

- transport safety lock

1шт.

13

CAS31375

KNOB

- transport safety lock

1шт.

14

D24650

X

FRAME - Scarifier

1шт.

15

31715

PIN

- mounting, frame to mounting plate

2шт.

16

132-152

PIN

- cotter, 31715 pin (1/4" x 1-3/4")

4шт.

17

D23748

TOOTH

- Scarifier

5шт.

18

D25598

TOOTH

POINT - Scarifier tooth

5шт.

19

D23833

X

WEDGE - retainer, Scarifier tooth (Use D30592)

5шт.

D30592

WEDGE

- retainer, Scarifier tooth

5шт.

20

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , D23833 wedge 1/4" x 1 1/4"

5шт.

21

19041

WEIGHT - Scarifier (Used on all dozer - Scarifier models; used on loader - Scarifier models up to loader serial no. 4056736) See D28845

2шт.

D28845

WEIGHT - Scarifier (Used on loader - Scarifier models only, loader serial no. 4056736 and after) See 19041

2шт.

22

CAS19055

PIN ASSY.

PIN - Scarifier weight

4шт.

23

D27696

CYLINDER - Scarifier, hydraulic (With tie rods) See Figure 234 for breakdown (When stock is exhausted, order D28335 cylinder, 218-5137 elbow, and R20839 restrictor elbow)

1шт.

23

D28335

CYLINDER - Scarifier, hydraulic (Without tie rods) See Figure 234 for breakdown (Use D31185)

1шт.

D31185

CYLINDER - Scarifier, hydraulic (Without tie rods) See Figure 236 for breakdown)

1шт.

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 45 degrees (5/8" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5137 elbow (Not shown)

1шт.

R20839

FITTING

ELBOW - 90 degrees male, special restrictor (5/8" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, R20839 elbow (Not shown)

1шт.

24

D21331

PIN - mounting, Serial Range: cylinder-frame

1шт.

25

35031

PIN

- trunnion, cylinder to mounting plate

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

27

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

3шт.

28

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

29

D23740

BUSHING

- lockhead pin

3шт.

11

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Special bolt 1/8" x 2"

1шт.
