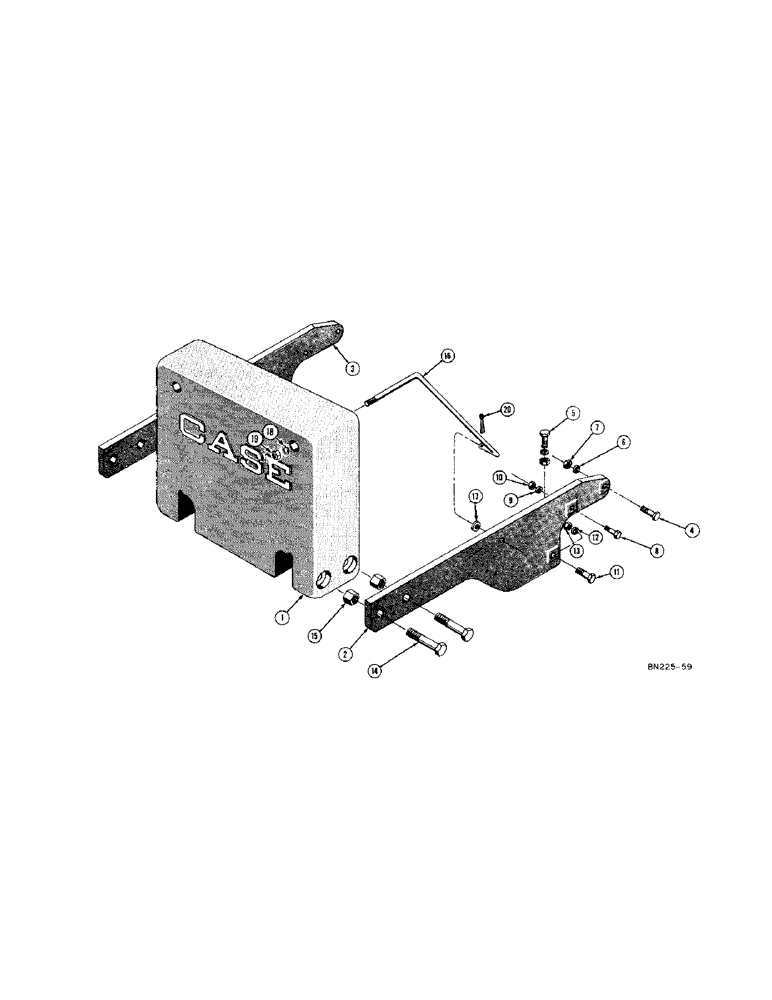

Запчасти Case 420C (190) - REAR COUNTERWEIGHT (1400 LB.) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

D23994

ARM - counterweight support, R.H. (Original equipment) when stock is exhausted, order 1 - D29738, 1 - 13-1248, 1 - 92-12, and 1 - 25-1012

1шт.

D29738

ARM - counterweight support, R.H. (Replacement) See D23994

1шт.

3

D23995

ARM - counterweight support, L.H. (Original equipment) when stock is exhausted, order 1 - D29739, 1 - 14-1248, 1 - 92-12 and 1 - 25-1012

1шт.

D29739

ARM - counterweight support, L.H. (Replacement) See D23995

1шт.

4

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4" (D23994 and D23995 support arms only) See 13-1248

2шт.

4

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(D29738 and D29739 support arms only) See 13-1044 Hex, 3/4"-10 x 3", G5

2шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 13-1044 and 13-1024 cap screws (See 92-12) 5/8"

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 13-1248 cap screw (See 92-10) 3/4"

2шт.

7

25-1010

NUT,5/8"-11, G5

13-1044 and 13-1024 cap screw (See 25-1012) 5/8"-11, G5

4шт.

25-1012

NUT,3/4"-10, G5

13-1248 Cap screw (See 25-1010) 3/4"-10, G5

2шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

11

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

13

25-1012

NUT,3/4"-10, G5

2шт.

14

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

15

25-1016

NUT,1"-8, G5

4шт.

16

D24058

ROD - stabilizer, L.H.

1шт.

D24057

ROD - stabilizer, R.H.

1шт.

17

195-41

WASHER,5/8"

4шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

25-1010

NUT,5/8"-11, G5

2шт.

20

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.
