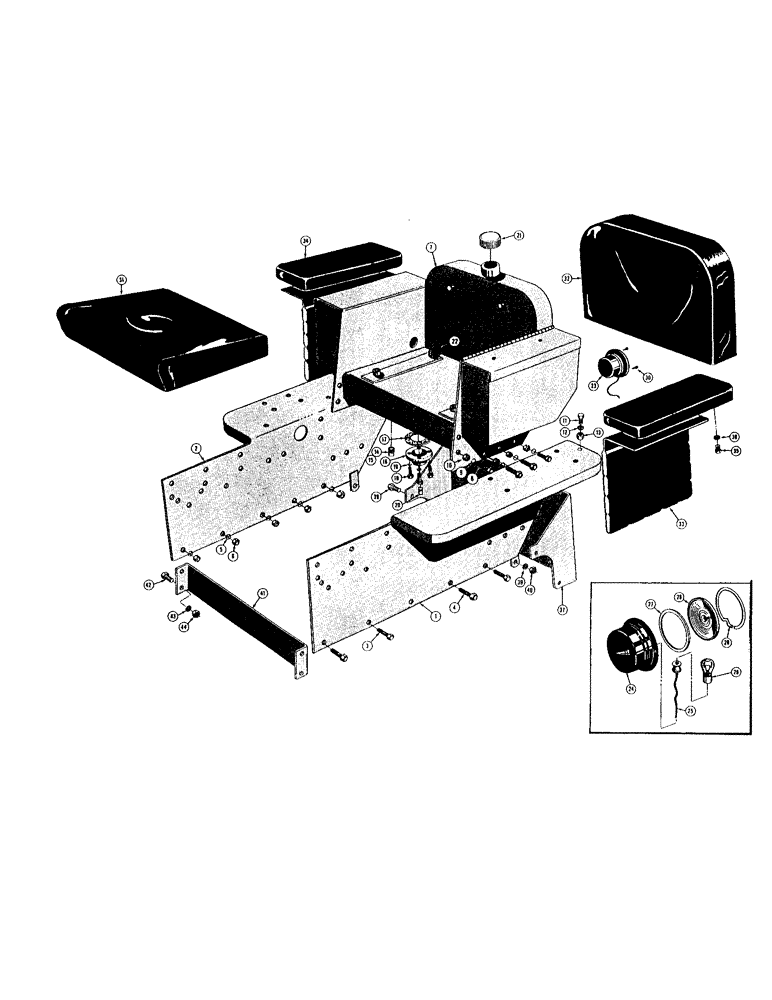

Запчасти Case 420C (138) - FENDERS, FUEL TANK, SEAT AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D26673

FENDER - L.H., standard

1шт.

D27253

FENDER - L.H., forestry model

1шт.

2

D26674

FENDER - R.H., standard

1шт.

D27252

FENDER - R.H., forestry model

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

7

D26667

SEAT AND TANK

1шт.

When replacing original equipment seat and tank on gas models before S/N 3016354, it will also be necessary to order (1) D28153 fuel line tube.

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

9

92-6

LOCK WASHER,3/8"

10шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

10шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT) (Used up to serial #3016354)

1шт.

15

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT) gas models only

1шт.

16

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

17

35621

GASKET

- fuel tank drain cover

1шт.

18

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8" - 24 NF x 7/8"

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

21

CASE10731

FILLER CAP

CAP - filler, fuel tank

1шт.

22

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

23

30903

LIGHT - tail, 12 volt

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - taillight

1шт.

25

33687

SCREW

WIRE ASSEMBLY - taillight

1шт.

26

33686

BULB

- taillight (Mfr's #1141)

1шт.

27

35653

GASKET - lens

1шт.

28

35654

STEERING TIE-ROD

LENS - taillight

1шт.

29

33683

WIRE - lens retaining

1шт.

30

187-29

SCREW

- self-tapping

3шт.

31

D27691

X

CUSHION - seat

1шт.

32

D27690

CUSHION - back

1шт.

33

D27692

PAD - side (If used)

2шт.

34

D27693

ARMREST

CUSHION - arm rest

2шт.

35

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

D21408

GUARD - brush, rear (Forestry model)

1шт.

38

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

39

92-8

LOCK WASHER,1/2"

2шт.

40

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

41

D21398

BRACE - fender, forestry model

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

43

92-6

LOCK WASHER,3/8"

4шт.

44

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.
