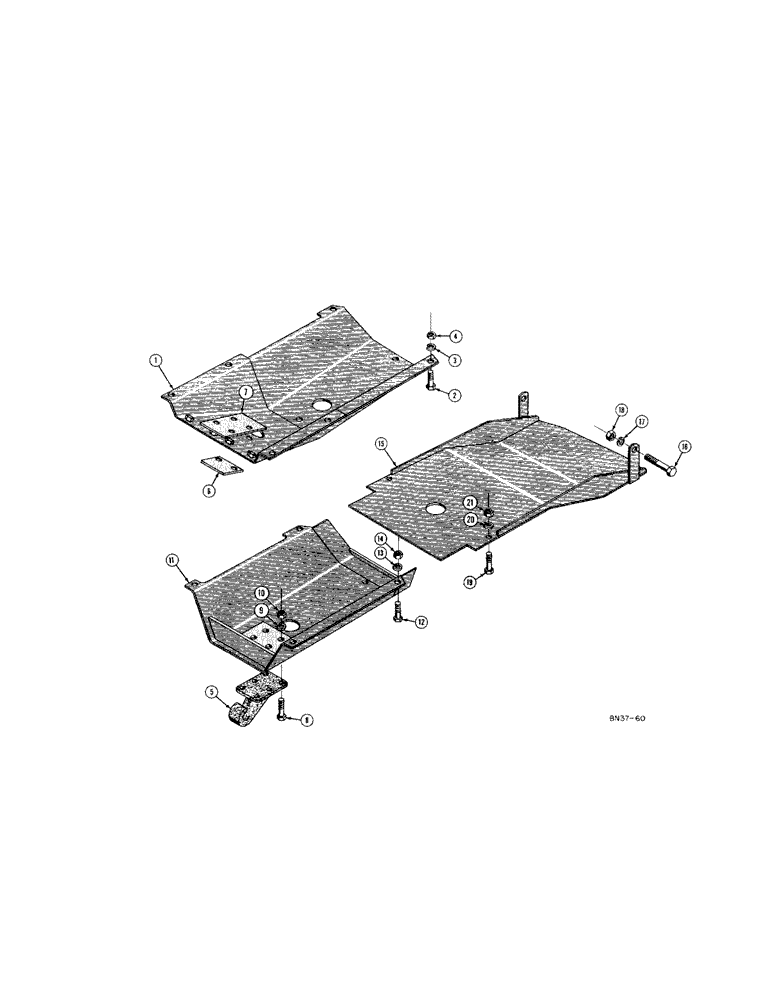

Запчасти Case 420C (142) - PULL HOOK, CRANKCASE GUARD, AND TRANSMISSION GUARD (04) - UNDERCARRIAGE

1

D26694

GUARD - crankcase

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

10шт.

3

92-8

LOCK WASHER,1/2"

10шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

6шт.

5

10940

HOOK

- pull

1шт.

6

36718

BRAKE BAND

SHIM - mounting, pull hook

1шт.

7

32123

LEVER

PLATE - doubler, pull hook

1шт.

8

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2 - 20 NF x 2-1/4

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

4шт.

11

D26696

GUARD - crankcase

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

4шт.

15

D21130

GUARD - rear transmission

1шт.

16

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

19

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

2шт.
