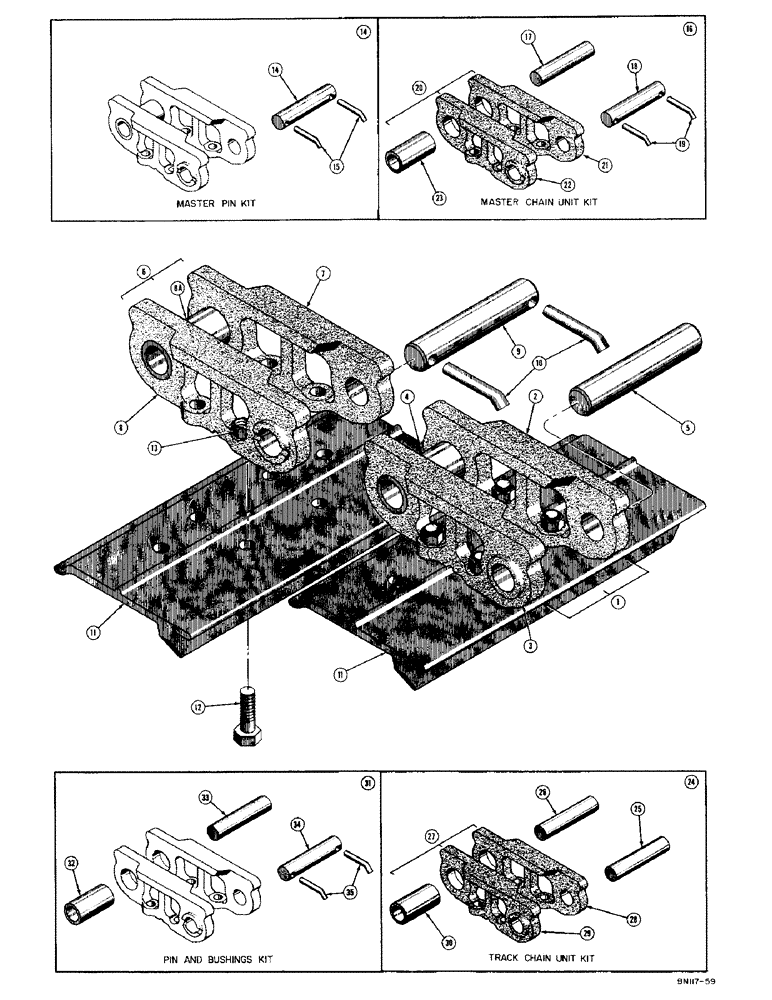

Запчасти Case 420C (134) - TRACK CHAIN (04) - UNDERCARRIAGE

5481

CHAIN - 15 unit , complete

2шт.

5482

CHAIN - 16 unit, complete

2шт.

1

34571

KIT

UNIT - track chain (See D21014)

15шт.

2

30638

X

LINK - track chain, R.H. (See D21014)

1шт.

3

311164C1

CLAMP

- track chain, L.H. (See D21014)

1шт.

4

NLS

NO LONGER SERVICED

- track chain (See D21014)

1шт.

5

32831

PIN

- track, standard (See D21014; also see ref. #17 and #33)

15шт.

6

34589

X

UNIT - master (See D21013)

1шт.

7

R41050

LINK

- master, R.H. (See D21013)

1шт.

8

33286

LINK

- master, L.H. (See D21013)

1шт.

8a

32830

BUSHING

- track chain (See D21013, D21014, and D21015)

1шт.

9

D21012

PIN

- master (See ref. #14)

1шт.

10

CASCASCASCASCAS32995

PIN - lock, master pin

2шт.

11

32882

VALVE

PLATE - grouser, 14" (Standard on drawbar and dozer models) See Figure 136 for optional track plates

62шт.

31895

PLATE - open grouser, 14" (Heat treated) standard on forestry models (See Figure 136 for optional track plates)

62шт.

32915

ROPE

PLATE - street 14" (Standard on loader-counterweight models) See Figure 136 for optional track plates

62шт.

32913

CLIP

PLATE - street, 12" (Standard on loader-backhoe models) See Figure 136 for optional track plates

62шт.

12

46944

BOLT,Hex, 7/16" - 20 x 1 1/2", Gr 8

HHCS - special (7/16" - 20 NF x 1-1/2")

248шт.

13

25-277

NUT - hex., special (7/16" - 20 NF) Use D29712

248шт.

D29712

SPECIAL NUT

- hex., special (7/16" - 20 NF)

248шт.

14

D21012

PIN

KIT - master pin

4шт.

15

CASCASCASCASCAS32995

PIN - lock, master pin, kit

2шт.

16

D21013

KIT

- track chain master unit

4шт.

17

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

18

D21012

PIN

- master chain unit kit

1шт.

19

CASCASCASCASCAS32995

PIN - lock, master chain unit kit

2шт.

20

34589

X

UNIT - master chain kit

1шт.

21

R41050

LINK

- master, R.H., unit kit

1шт.

22

33286

LINK

- master, L.H., chain unit kit

1шт.

23

NLS

NO LONGER SERVICED

- track chain unit kit

1шт.

24

D21014

KIT

- track chain unit

58шт.

25

32831

PIN

- track, standard, chain unit kit

1шт.

26

32836

PIN

- track, service (.003" oversize), chain unit kit

1шт.

27

34571

KIT

UNIT - track chain, kit

1шт.

28

30638

X

LINK - track chain, R.H., unit kit

1шт.

29

30639

LINK

- track chain, L.H., unit kit

1шт.

30

32830

BUSHING

- track chain unit kit

1шт.

31

D11883

KIT - pins and bushings

1шт.

32

NLS

NO LONGER SERVICED

- track chain, pin kit

62шт.

33

32836

PIN

- track, service (.003" oversize), bushing kit

58шт.

34

D21012

PIN

- master, bushing kit

4шт.

35

CASCASCASCASCAS32995

PIN - lock, master pin, bushing kit

2шт.
