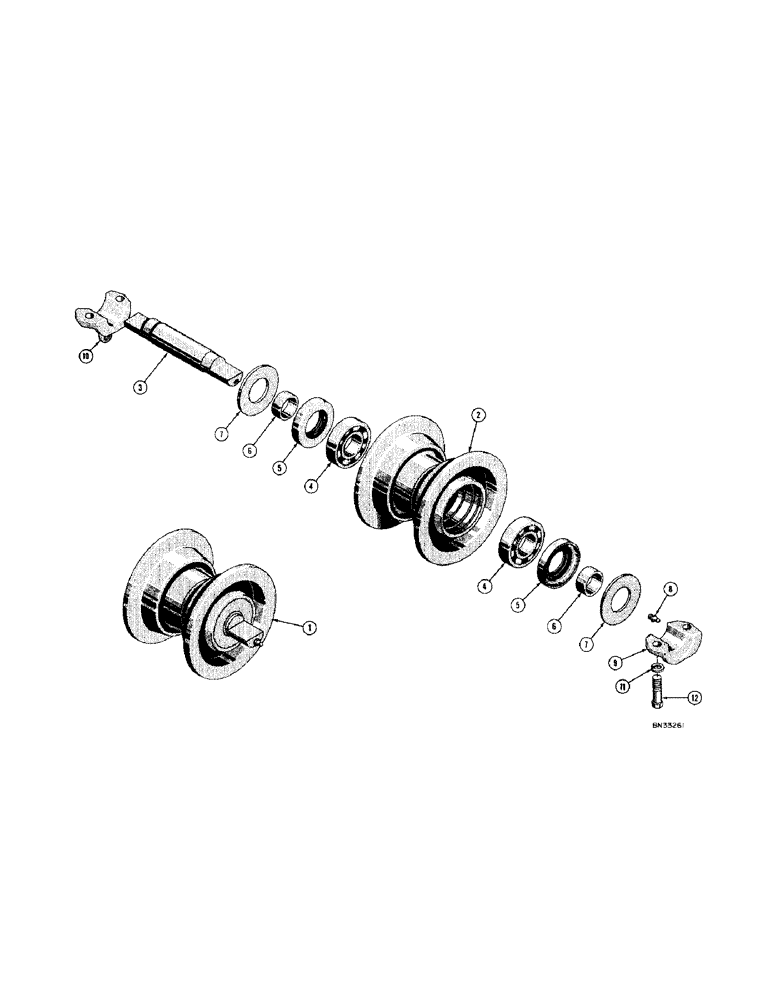

Запчасти Case 420C (128) - TRACK ROLLER - HEAVY DUTY (04) - UNDERCARRIAGE

1

37431

OIL SEAL

ROLLER - track, rear (Backhoe models only) original equipment (Backhoe serial #4059036 and after) when stock is exhausted, order D29137 (See 32032 - Figure 126)

2шт.

2

31828

HUB - track roller

1шт.

R3308

KIT - service, track roller

1шт.

3

32056

SHAFT

- track roller

1шт.

4

40201

BALL BEARING,1.375" ID x 2.8346" OD x 1.0625"

- ball

2шт.

5

40633

PLATE

SEAL - oil, 3 lip (When stock is exhausted, order D29138)

2шт.

D29138

OIL SEAL

SEAL - oil, 4 lip (See 40633)

2шт.

6

32051

SPACER

- bearing

2шт.

7

30704

BEARING COVER

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

3255

LOCKABLE FUEL CAP

BOX - track roller, outer

4шт.

10

51200225

CAP

BOX - track roller, inner

4шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20NF x 1-1/2

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.
