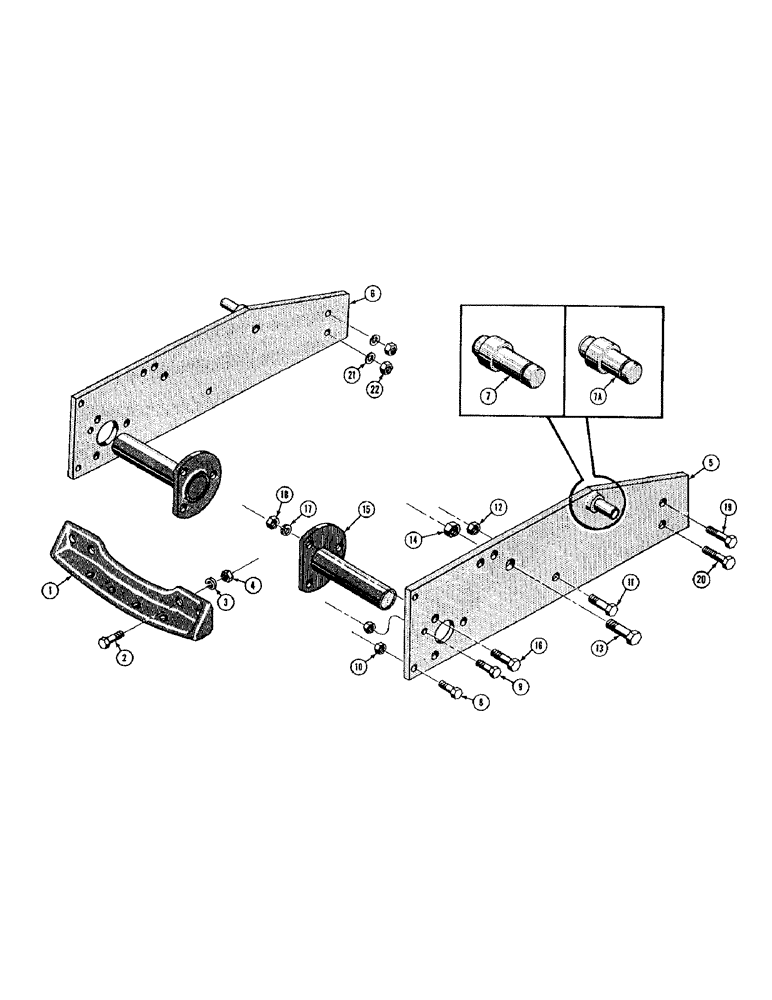

Запчасти Case 420C (122) - SIDE PLATE, PIVOT BAR, AND DRAWBAR GUIDE (04) - UNDERCARRIAGE

1

13103

GUIDE - drawbar (48" gauge and wider tractors)

1шт.

32419

GUIDE - drawbar (42" gauge tractors)

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

5

D25523

PLATE - side, R.H. (Original equipment) includes ref. #7 or #7A (When stock is exhausted, order 1 - D29732, 1 - 14-1240, 2 - D29721, and 3 - 131-395) See D25107

1шт.

5

D29732

PLATE - side, R.H. (Replacement) includes ref. #7A (See D25523 and D25107)

1шт.

6

D25524

PLATE - side, L.H. (Original equipment) includes ref. #7 or #7A (When stock is exhausted, order 1 - D29733, 1 - 14-1240, 2 - D29721, and 3 - 131-395) See D25107

1шт.

6

D29733

PLATE - side, L.H. (Replacement) includes ref. #7A (See D255424 and D25107)

1шт.

7

D25531

STUD - pivot, leaf spring bracket (4" long) Used up to tractor serial#3017316 (See D29032)

1шт.

7a

D29032

STUD - pivot, leaf spring bracket (3-9/16" long) Used on tractor serial #3017316 and after (See D25531)

1шт.

D25107

PLATE - side, rigid track (Backhoe models only) not shown

2шт.

8

33046

BOLT - body fit, side plate to inner final drive housing (5/8" - 18 NF x 2-1/2") Used with original equipment side plates (See D29721)

4шт.

8

D29721

BOLT

- body fit, side plate to inner final drive housing (3/4" - 16 NF x 2-1/2") Used with replacement side plates (See 33046)

4шт.

9

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

HHCS - side plate to inner final drive housing (5/8" - 18 NF x 2-1/2") Used with original equipment side plates (See 14-1240)

2шт.

9

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - side plate to inner final drive housing (3/4" - 16 NF x 2-1/2") Used with replacement side plates (See 14-1040)

2шт.

10

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF) Used with original equipment side plates (See 131-368)

6шт.

10

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4" - 16 NF) Used with replacement side plates (See 131-394)

6шт.

11

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - side plate to torque tube (3/4" - 16 NF x 2-3/4")

2шт.

12

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF)

2шт.

13

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- body fit, side plate to torque tube (1" - 14 NF x 3-3/32")

4шт.

14

232-46116

LOCK NUT,1"-14, GC

NUT - lock (1" - 14 NF)

4шт.

15

D27542

BAR - pivot

2шт.

16

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4" - 16 NF x 2-1/2"

6шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

18

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

6шт.

19

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

(Backhoe models only) Hex, 3/4"-10 x 2 1/2", G5

2шт.

20

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Backhoe models only) Hex, 3/4"-10 x 3", G5

2шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

25-1012

NUT,3/4"-10, G5

4шт.
