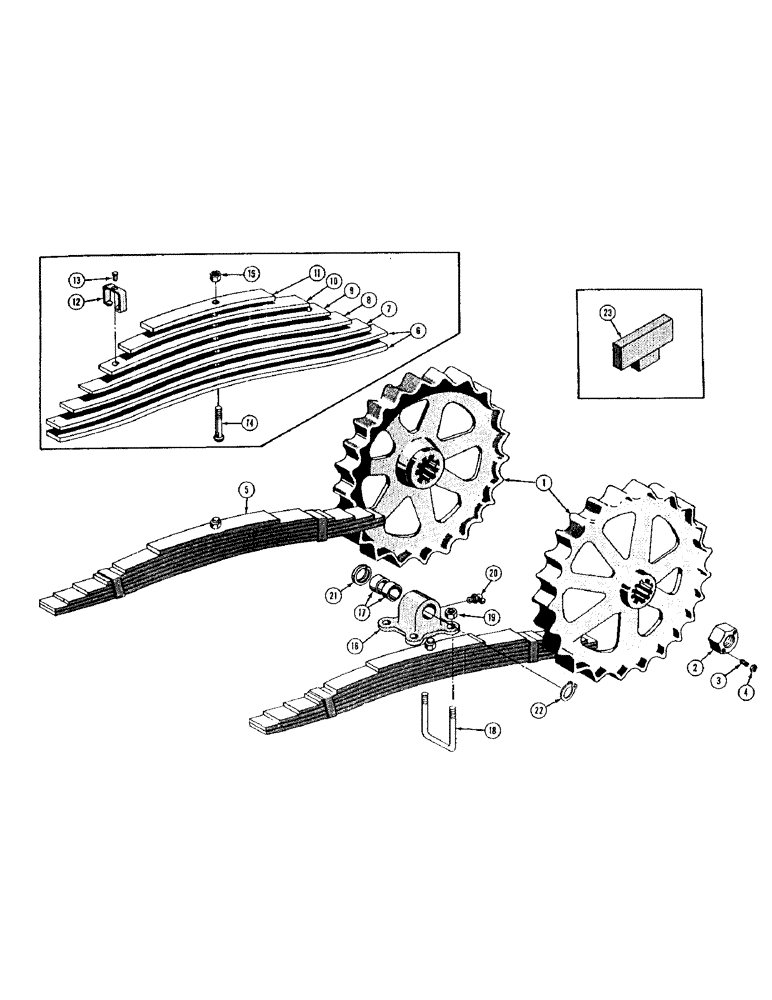

Запчасти Case 420C (120) - SPROCKET AND LEAF SPRING (04) - UNDERCARRIAGE

1

NLS

NO LONGER SERVICED

SPROCKET - drive

2шт.

D20407

SPROCKET - drive, snow (Optional equipment)

2шт.

3

11851

LOCK NUT

NUT - lock, final drive sprocket

2шт.

3

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

SCREW - set, Allen head (3/8" - 16 NC x 1")

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

4шт.

5

D25558

SPRING - leaf, complete (Not used on backhoe models)

2шт.

6

33117

LEAF - 5/16" x 1-3/4" x 2-1/4"

2шт.

7

33118

LEAF - 5/16" x 1-3/4 ' x 26-1/2"

1шт.

8

33119

SPRING

LEAF - 5/16" x 1-3/4" x 22-1/4"

1шт.

9

33120

NEEDLE BEARING

LEAF - 5/16" x 1-3/4" x 17-3/4"

1шт.

10

33121

LEAF - 5/16" x 1-3/4" x 13"

1шт.

11

33122

HOUSING

LEAF - 5/16" x 1-3/4" x 8-3/4"

1шт.

12

33123

PIN

CLIP - leaf retainer

2шт.

13

33124

PLUG

RIVET - retainer, Serial Range: clip-leaf

2шт.

14

D25557

BOLT - center, leaf spring (3/8" - 24 NF x 2-5/8")

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

16

D25525

BRACKET - leaf spring pivot

2шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- pivot bracket

2шт.

18

D26725

BOLT - spring

4шт.

19

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2 - 13 NC)

8шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

21

D25532

WASHER - special (1-17/64" I.D. x 1-3/4" O.D. x 1/4" thick) Used up to serial #3017316

2шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, , leaf spring bracket #125, Ext

2шт.

23

33676

DRAWBAR SUPPORT

BLOCK - leaf spring limit (Loader, dozers, and tractors with three point hitch)

2шт.
