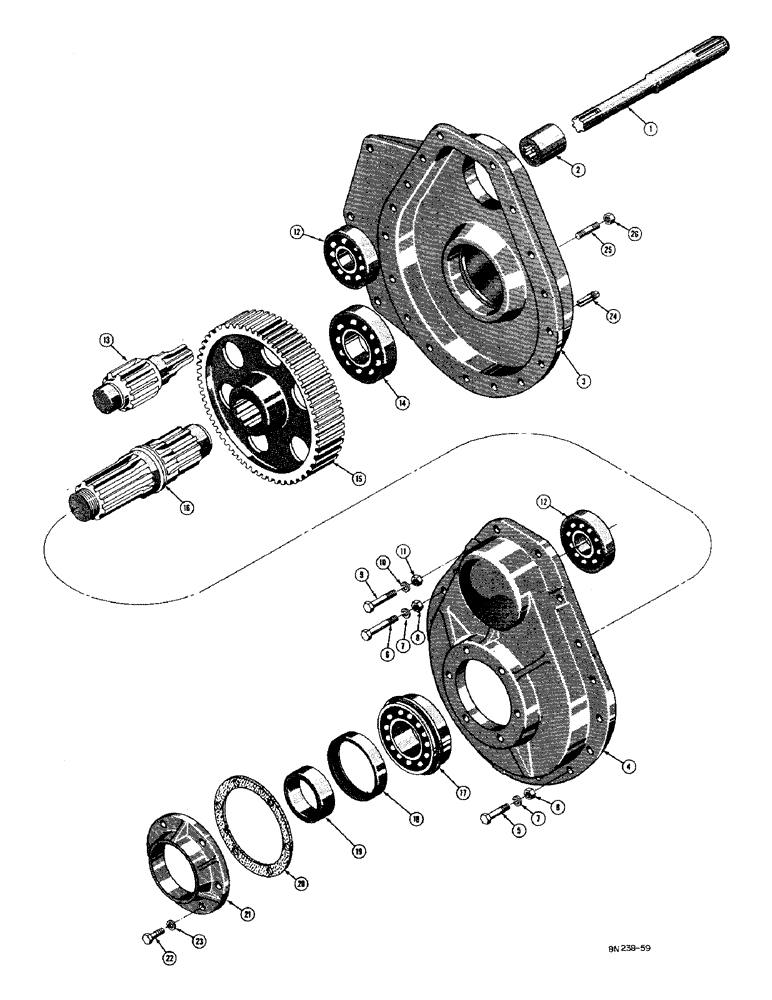

Запчасти Case 420C (118) - FINAL DRIVE AND AXLE SHAFT (04) - UNDERCARRIAGE

1

51200025

SHAFT

- axle, final drive (48" gauge tractor) (13-3/16" long) original equipment (Has 6 splines on coupling end) See D31519

2шт.

1

D31519

SHAFT

- axle, final drive (48" gauge tractor) (13-1/4" long) replacement (Has 10 splines on coupling end) See 11845

2шт.

1

11830-420

SHAFT - axle, final drive (42" gauge tractor) (10-3/32" long)

2шт.

1

11830-720

SHAFT - axle, final drive (72" gauge tractor) (25-3/16" long)

2шт.

2

51200026

COUPLING

- final drive (42" gauge and wider tractors) original equipment (Has 6 splines) See D31516 and O8897AB

2шт.

2

D31516

X

COUPLING - final drive (48" gauge tractors only) replacement (Has 10 splines) See 11831

2шт.

O8897AB

X

RING - retaining, used with D31516 coupling only (See 11831)

2шт.

3

11817

RIVET

HOUSING - final drive, L.H. inner (Original equipment) when stock is exhausted, order 1 - D29737, 1 - 14-1240, 2 - D29721, and 3 - 131-395

1шт.

3

D29737

HOUSING - final drive, L.H. inner (Replacement) See 11817

1шт.

3

11816

RIVET

HOUSING - final drive, R.H. inner (Original equipment) when stock is exhausted, order 1 - D29736, 1 - 14-1240, 2 - D29721, and 3 - 131-395

1шт.

3

D29736

HOUSING - final drive, R.H. inner (Replacement) See 11816

1шт.

4

D24658

HOUSING

- final drive, outer

2шт.

5

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

18шт.

6

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

10шт.

7

92-7

LOCK WASHER,7/16"

28шт.

8

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

28шт.

9

D24688

BOLT

BOLT - body fit (1/2" - 13 NC x 2-1/8")

6шт.

10

92-8

LOCK WASHER,1/2"

6шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

12

40002

BALL BEARING

- ball, final drive pinion

4шт.

13

51200027

SHAFT

PINION - final drive (Original equipment) has 6 splines on coupling end (See D31514)

2шт.

13

D31514

SHAFT

PINION - final drive (48" gauge tractors only) replacement (Has 10 splines on coupling end) See 11832

2шт.

14

40003

BEARING

- ball, final driveshaft (Inner)

2шт.

15

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

16

CAS11853

SHAFT

- final drive

2шт.

17

D14979

BEARING

BEARING - ball, final driveshaft (Outer)

2шт.

18

NLS

NO LONGER SERVICED

SEAL - oil, final driveshaft (When stock is exhausted, order D29517)

2шт.

18

D29517

SEAL

- oil, final driveshaft (See 40610)

2шт.

19

51200024

SPACER

- final driveshaft

2шт.

20

CAS11828

GASKET

- seal retainer

2шт.

21

11827

RETAINER

- seal, final driveshaft

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

23

92-6

LOCK WASHER,3/8"

12шт.

24

D21396

PLUG, DRAIN

PLUG - pipe, magnetic (1/2" NPT countersunk head)

4шт.

25

R29874

STUD

- mounting, final drive

16шт.

26

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

16шт.

D12151

CENTER AXLE

KIT - axle shaft (May be used to convert 48" gauge tractors only to use 10 spline axle shaft, coupling and pinion)

2шт.

1

D31519

SHAFT

- axle, final drive (48" gauge tractors) (13-1/4" long)

1шт.

2

D31516

X

COUPLING - final drive (48" gauge tractors)

1шт.

O8897AB

X

RING - retaining, D31516 coupling

1шт.

13

D31514

SHAFT

PINION - final drive (48" gauge tractors)

1шт.
