Запчасти Case 420C (110) - TRANSMISSION-DIFFERENTIAL AND FINAL DRIVE SPACERS (04) - UNDERCARRIAGE

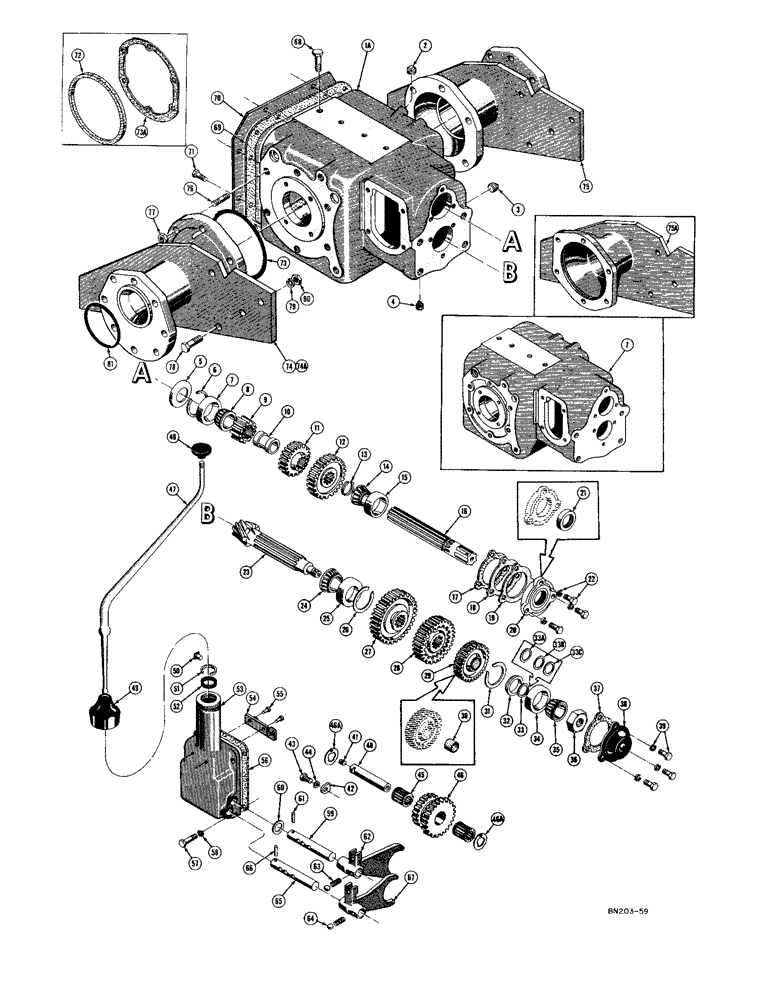

Схема запчастей Case 420C - (110) - TRANSMISSION-DIFFERENTIAL AND FINAL DRIVE SPACERS (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

D23400

X

TRANSMISSION AND DIFFERENTIAL - complete (When stock is exhausted, order D29500)

1шт.

D23400 and D29500 transmissions also include items listed on Figure 106.

1шт.

D29500

X

TRANSMISSION AND DIFFERENTIAL - complete (See D23400)

1шт.

D23400 and D29500 transmissions also include items listed on Figure 106.

1шт.

1

NLS

NO LONGER SERVICED

CASE - transmission (Includes ref. #26) D23400 transmission (Has recess in faced surface) Use D32570 (See 32369, D27642, and D29309)

1шт.

1a

D29527

CASE - transmission (Includes ref. #26) D29500 transmission (Has solid faced surface) Use D32570 (See D23400, 32369, D27642, and D29309)

1шт.

1a

D32570

X

CASE - transmission (Includes ref. #2, #3, #4, #26, and #46) D29500 transmission (Has solid faced surface) See D23400, 32369, D27642, and D29309

1шт.

2

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- pipe, transmission filler (1" NPT square head)

1шт.

3

221-834

X

PLUG - pipe, oil level (1/2" NPT extended square head)

1шт.

4

D23217

X

PLUG - pipe, magnetic (Drain)

2шт.

5

11371

CUP ASSY.

CUP- oil, main shaft rear bearing

1шт.

6

11453

TAPERED BEARING

SNAP RING - main shaft rear bearing

1шт.

7

O4056TS

CUP

- bearing

1шт.

8

VT3404

X

CONE - bearing

1шт.

9

11363

BALL BEARING

GEAR - main shaft, low and reverse

1шт.

10

35130

SPACER

- main shaft gear

1шт.

11

11365

GEAR

- main shaft, second speed

1шт.

12

11366

GEAR

- main shaft, constant mesh

1шт.

13

VT2111

X

SNAP RING - main shaft front bearing

1шт.

14

VT3404

X

CONE - bearing

1шт.

15

O4056TS

CUP

- bearing

1шт.

16

D33873

MAIN SHAFT

1шт.

17

51200023

GASKET

- main shaft front bearing cap

1шт.

18

11368

SHIM

- main shaft front bearing cap (.005" thick)

1шт.

19

11367

SHIM

- main shaft front bearing cap (.010" thick)

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing cap (Not shown) .020" Thk

1шт.

20

11369

X

CAP - main shaft front bearing

1шт.

21

11370

OIL RESERVOIR

SEAL - oil, bearing cap

1шт.

22

23016

CAP

HHCS AND LOCKWASHER - 3/8" - 16 NC x 1"

3шт.

23

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL PINION - (Included with differential)

1шт.

24

40384

ROLLER BEARING

CONE - bearing

1шт.

25

40385

BEARING,3.375" OD x 0.9375"

CUP - bearing

1шт.

26

11451

RING, SNAP

SNAP RING - countershaft rear bearing

1шт.

27

NLS

NO LONGER SERVICED

- countershaft, first and reverse

1шт.

28

11374

GEAR

- sliding, second and third

1шт.

28

11374GV

DISC

- sliding, second and third

1шт.

29

11375

GEAR

AND BUSHING - third

1шт.

30

11376

BUSHING

- countershaft third gear

1шт.

31

101-21250

SNAP RING,#250, 2.673", Int

- countershaft front bearing

1шт.

32

11378

BELLEVILLE WASHER

- retaining, countershaft third gear

1шт.

33

11377

X

WASHER - spring, countershaft third gear retaining (Use D11205)

1шт.

D11205

SHIM KIT

KIT - shim pack, countershaft third gear retaining

1шт.

D27621

SPACER

WASHER - spacer, hardened (1-1/32" I.D. x 1-7/16" O.D. x 3/64" thick)

1шт.

D27618

SHIM,.004" Thk

Steel (Not shown) .004" Thk

2шт.

D27619

SHIM,.007" Thk

Steel (Not shown) .007" Thk

2шт.

D27620

SHIM,.010" Thk

Steel (Not shown) .010" Thk

5шт.

34

O4056TS

CUP

- bearing

1шт.

35

W9651S

CUP ASSY.

CONE - bearing

1шт.

36

11380

NUT

- adjusting, countershaft front bearing

1шт.

37

51200023

GASKET

- countershaft front bearing cap

1шт.

38

11381

CAP

- countershaft front bearing

1шт.

39

D20542

X

HHCS AND LOCKWASHER - bearing cap

3шт.

40

34592

SHAFT

ASSEMBLY - reverse idler

1шт.

41

34594

X

PLUG - pipe, slotted headless

1шт.

42

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Reverse idler shaft lock Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

44

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER - Shakeproof lock, internal tooth (3/8")

1шт.

45

11450

TAPERED BEARING

BEARING - needle, reverse idler

2шт.

46

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

46a

D29626

WASHER

- thrust, reverse idler gear (D29500 transmission only)

2шт.

D28239

CONTROL ASSEMBLY - gear shift, complete

1шт.

47

37238

LEVER

- gear shift

1шт.

48

O351AB

KNOB - gear shift lever

1шт.

49

VT2017

X

COVER - dust, gear shift lever

1шт.

50

31365

PIN

- stake, gear shift lever

1шт.

51

11454

RING, SNAP

SNAP RING - gear shift lever

1шт.

52

CAS11393

WASHER

- pivot, gear shift lever

1шт.

53

37911

SLIDE GUIDE

COVER AND GUIDE ASSEMBLY - control

1шт.

54

11389

PLATE

- guide, control cover

1шт.

55

45-414

RIVET,But Hd, 1/4" x 7/8"

- button head, guide plate to control cover (1/4" x 7/8")

2шт.

56

11391

GASKET

- control cover

1шт.

57

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

58

92-6

LOCK WASHER,3/8"

4шт.

59

11396

ROD

- shift, first and reverse

1шт.

60

D28299

WASHER

- spacer, first and reverse shift fork

5шт.

61

11398

PIN

- lock, first and reverse shift rod (Short)

1шт.

62

11400

FORK TEDDER

FORK - shift, first and reverse

1шт.

63

11403

SPRING

- mesh lock, shift fork

2шт.

64

VT4913

X

BALL - mesh lock, shift fork (3/8" dia.) Use 211-11

2шт.

211-11

BALL,3/8" Dia

- mesh lock, shift fork (.) 3/8" Dia

2шт.

65

11397

ROD

- shift, second and third

1шт.

66

11399

PIN

- lock, second and third shift rod (Long)

1шт.

67

NLS

NO LONGER SERVICED

FORK - shift, second and third

1шт.

68

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16" - 12 NC x 1"

4шт.

69

11429

GASKET

- transmission cover plate

1шт.

70

D21185

PLATE

- cover, transmission

1шт.

71

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

11шт.

92-7

LOCK WASHER,7/16"

used up to tractor S/N 3017412 (Use Loctite "Grade CV") (Not shown) 7/16"

11шт.

When reassembling transmission cover plate on tractors prior to S/N 3017412, discard lockwashers and apply Locktite "Grade CV" to mounting bolts.

1шт.

72

32369

SEAL

- cork, final drive spacer to transmission case (Used with transmission case that has recess in faced surface and any spacer tubes with or without "O"ring groove) See D27642 and D29309

2шт.

73

D27642

X

SEAL - "O"ring, final drive spacer to transmission case (Used with transmission case that has solid faced surface and spacer tube with "O"ring groove) See 32369 and D29309

2шт.

73a

D29309

GASKET

- final drive spacer to transmission case (Used with transmission case that has solid faced surface and spacer tube without "O"ring groove) See 32369 and D27642

2шт.

74

NLS

NO LONGER SERVICED

SPACER - final drive, R.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial #3017316)

1шт.

When stock is exhausted, for drawbar models, order (1) D29728, (4) 14-1228, (4) 92-12 and (4) 25-1112. For loader, counterweight models, order (1) D29728, (3) 14-1228, (2) 13-1244, (5) 92-12, (3) 25-1112 and (2) 25-1012. For drawbar or dozer models with three-point hitch, order (1) D29728, (2) 14-1228, (2) 14-1244, (4) 92-12 and (4) 25-1112 (see D27640).

1шт.

74

D27640

SPACER - final drive, R.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equipment on tractor serial #3017316 and after)

1шт.

When stock is exhausted, for drawbar models, order (1) D29728, (4) 14-1228, (4) 92-12 and (4) 25-1112. For loader, counterweight models, order (1) D29728, (3) 14-1228, (2) 13-1244, (5) 92-12, (3) 25-1112 and (2) 25-1012. For drawbar or dozer models with three-point hitch, order (1) D29728, (2) 14-1228, (2) 14-1244, (4) 92-12 and (4) 25-1112 (see 11966).

1шт.

74a

D29728

SPACER - final drive, R.H. (Standard 48" gauge tractor) has "O"ring groove around inside of faced surface on transmission side (Replacement) See 11966 and D27640

1шт.

74

11977

ACCUMULATOR

SPACER - final drive, R.H. (42" gauge tractor) has plain faced surface on transmission side (Original equipment) when stock is exhausted order 1 - D29788, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

74

D29788

SEAT

SPACER - final drive, R.H. (42" gauge tractor) has plain faced surface on transmission side (Replacement) See 11977

1шт.

74

11974

O-RING

SPACER - final drive, R.H. (72" gauge tractor) has plain faced surface on transmission side (Original equipment) when stock is exhausted, order 1 - D29794, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

74

D29794

X

SPACER - final drive, R.H. (72" gauge tractor) has plain faced surface on transmission side (Replacement) See 11974

1шт.

75

NLS

NO LONGER SERVICED

SPACER - final drive, L.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors up to serial #3017316)

1шт.

When stock is exhausted, for drawbar models, order (1) D29729, (4) 14-1228, (4) 92-12 and (4) 25-1112. For loader, counterweight models, order (1) D29729, (3) 14-1228, (2) 13-1244, (5) 92-12, (3) 25-1112 and (2) 25-1012. For drawbar or dozer models with three-point hitch, order (1) D29729, (2) 14-1228, (2) 14-1244, (4) 92-12 and (4) 25-1112 (see D27639).

1шт.

75

D27639

SPACER - final drive, L.H. (Standard 48" gauge tractor) has plain faced surface on transmission side (Original equipment on tractors serial #3017316 and after)

1шт.

When stock is exhausted, for drawbar models, order (1) D29729, (4) 14-1228, (4) 92-12 and (4) 25-1112. For loader, counterweight models, order (1) D29729, (3) 14-1128, (2) 13-1244, (5) 92-12, (3) 25-1112 and (2) 25-1012. For drawbar or dozer models with three-point hitch, order (1) D29729, (2) 14-1228, (2) 14-1244, (4) 92-12 and (4) 25-1112 (see 11967).

1шт.

75a

D29729

SPACER - final drive, L.H. (Standard 48" gauge tractor) has "O"ring groove around inside of faced surface on transmission side (Replacement) See 11967 and D27639

1шт.

75

11978

PULLER

SPACER - final drive, L.H. (42" gauge tractor) has plain faced surface on transmission side (Original equipment) when stock is exhausted, order 1 - D29787, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

75

D29787

SPACER - final drive, L.H. (42" gauge tractor) has plain faced surface on transmission side (Replacement) See 11978

1шт.

75

11975

FITTING

SPACER - final drive, L.H. (72" gauge tractor) has plain faced surface on transmission side (Original equipment) when stock is exhausted, order 1 - D29795, 4 - 14-1228, 4 - 92-12, and 4 - 25-1112

1шт.

75

D29795

X

SPACER - final drive, L.H. (72" gauge tractor) has plain faced surface on transmission side (Replacement) See 11975

1шт.

76

46505

STUD

- final drive spacer to transmission (9/16" x 1")

12шт.

77

131-675

LOCK NUT,9/16"-18, GB

NUT - lock (9/16" - 18 NF)

12шт.

78

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(Used with original equipment spacers only) See 14-1228 Hex, 5/8"-18 x 1 3/4", G5

8шт.

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4" (Used with replacement spacers only) See 14-1028

8шт.

79

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

80

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

8шт.

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

8шт.

81

O8849AB

X

SEAL - "O"ring, final drive spacer outer flange

2шт.
