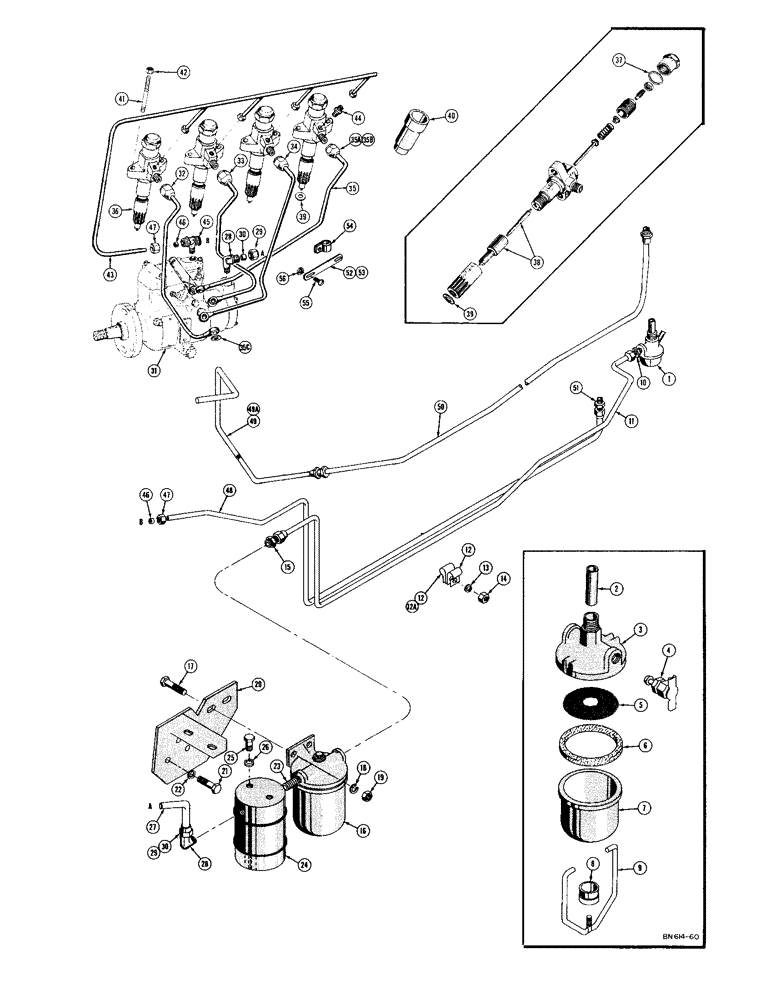

Запчасти Case 420C (064) - DIESEL FUEL INJECTION SYSTEM (02) - FUEL SYSTEM

1

33487

STRAINER ELEMENT

STRAINER - fuel

1шт.

2

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

3

41932

COVER

HEAD - strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

NLS

NO LONGER SERVICED

1шт.

8

A11210

ADJUSTER

NUT - cup, bail

1шт.

9

A1121

BAIL - bowl

1шт.

10

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight (5/16" JIC x 1/8" NPT)

1шт.

11

D2687

TUBE - fuel line, tank to filter (Used up to tractor serial #3017348) See D29112

1шт.

11

D29112

TUBE - fuel line, tank to filter (Used on tractor serial #3017348 and after) See D26987

1шт.

12

49832

CLAMP

- fuel line tube (2 used up to tractor serial #3017348 and after) See D29140

2-1шт.

12a

D29140

CLAMP - fuel line tube (Used on tractor serial #3017348 and after) See 49832

1шт.

13

92-7

LOCK WASHER,7/16"

1шт.

14

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

1шт.

15

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT)

1шт.

16

D28023

FILTER - fuel, first stage (See Figure 068 for breakdown)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

20

D22496

BRACKET - mounting, fuel filters

1шт.

21

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

22

92-5

LOCK WASHER,5/16"

3шт.

23

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8")

1шт.

24

G45316

FILTER - fuel, second stage (See Figure 068 for breakdown)

1шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

D27993

X

TUBE - fuel line, filter to pump (Use 1 - D29329 hose and 1 - D29329 hose and 1 - 222-1026 elbow)

1шт.

D29329

HOSE - fuel line, filter to pump (13" long) See D27993 (Not shown)

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- male, 90 degrees (3/8" JIC x 1/4" NPT) second stage filter outlet and fuel injection pump inlet (Used with D27993 fuel line tube only) See 222-1026

2шт.

29

222-114

NUT,5/8"-24

NUT - tube (3/8" JIC)

1шт.

30

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- male, 90 degrees (3/8" JIC x 1/4" NPT) fuel injection pump inlet (Used with D29329 fuel line hose only) See 222-47 (Not shown)

1шт.

31

G37055

PUMP- fuel injection (When stock is exhausted, order A35779) See Figure 068 for breakdown

1шт.

32

G37001

TUBE

- injection pump to #1 nozzle (Includes ref. #35A, #35B, and #35C)

1шт.

33

G37002

X

TUBE - injection pump to #2 nozzle (Includes ref. #35A, #35B, and #35C)

1шт.

34

G37003

TUBE

- injection pump to #3 nozzle (Includes ref. #35A, #35B, and #35C)

1шт.

35

G37004

X

TUBE - injection pump to #4 nozzle

1шт.

35a

O9967AB

X

SLEEVE - coupling, Serial Range: tube-nozzle

1шт.

35b

O9968AB

NUT - coupling, Serial Range: tube-nozzle

1шт.

35c

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw, fuel line

2шт.

36

G45215

INJECTOR - fuel (When stock is exhausted, order A35084)

4шт.

37

G46885

GASKET

- fuel injector cap

1шт.

38

G45339

NOZZLE - fuel injector

1шт.

39

G49068

GASKET

- nozzle, fuel injector

1шт.

36

A35084

NOZZLE CAP

INJECTOR - fuel (See G45215)

4шт.

37

G46885

GASKET

- fuel injector cap

1шт.

38

A35085

NOZZLE CAP

NOZZLE - fuel injector

1шт.

39

G49068

GASKET

- nozzle, fuel injector

1шт.

40

G11724

LINER

- injector nozzle

4шт.

41

VT4510

X

STUD - injector to head (3/8" x 1-3/4")

8шт.

42

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

43

G45385

WASHER

TUBE - leak-off (Includes 4 - 222-101 sleeves, 4 - 222-111 nuts, 1 - 222-113 nuts, and 1 - 222-103 sleeve)

1шт.

44

222-21

FITTING,7/16"-24 x 1/8" NPTF

Includes 1 - 222-101 sleeve and 1 - 222-111 nut 7/16"-24 x 1/8" NPTF

4шт.

45

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

- male (5/16" JIC x 5/16" JIC x 1/4" NPT)

1шт.

46

222-103

SLEEVE,5/16" Tube

2шт.

47

222-113

TUBE NUT,9/16"-24

NUT - tube (5/16" JIC)

2шт.

48

D26985

TUBE - fuel return, leak-off tube to tank (Used up to tractor serial #3017348) See D29114 and D29116

1шт.

49

D29116

TUBE - fuel return, leak-off tube to tank (Front section) Used on tractor serial #3017348 and after (When stock is exhausted, order D30034) See D26985

1шт.

49a

D30034

TUBE

- fuel return, leak-off tube to tank (Front section) See D29116

1шт.

50

D29114

TUBE

- fuel return, leak-off tube to tank (Rear section) Used on tractor serial #3017348 and after (See D26985)

1шт.

51

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (5/16" JIC x 1/4" NPT)

1шт.

52

G15969

STRAP - support, front (G37001 and G37002 tubes)

1шт.

53

G15970

STRAP - support, rear (G37003 and G37004 tubes)

1шт.

54

G46395

CLAMP - tube, nylon

4шт.

55

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- machine, round head (Zinc plated) (#10 - 32 NF x 5/8")

4шт.

56

193-1000

NUT,Keps, w/LW,#10-32

- Keps, zinc plated (#10 - 32 NF)

4шт.
